DS90LV047A Series

400-Mbps LVDS quad high-speed differential driver

Catalog

400-Mbps LVDS quad high-speed differential driver

Part	Protocol	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Number of Drivers/Receivers [custom]	Number of Drivers/Receivers [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Type	Package / Case	Package / Case [x]	Package / Case [y]	Supplier Device Package	Function	Supplied Contents	Utilized IC / Part
Texas Instruments DS90LV047ATMX/NOPB	LVDS	400 Mbps	85 °C	-40 °C	4	0	3.6 V	3 V	Surface Mount	Driver	16-SOIC	0.154 in	3.9 mm	16-SOIC
Texas Instruments DS90LV047ATM	LVDS	400 Mbps	85 °C	-40 °C	4	0	3.6 V	3 V	Surface Mount	Driver	16-SOIC	0.154 in	3.9 mm
Texas Instruments DS90LV047ATMTC/DRPB	LVDS	400 Mbps	85 °C	-40 °C	4	0	3.6 V	3 V	Surface Mount	Driver	16-TSSOP	0.173 in	4.4 mm	16-TSSOP

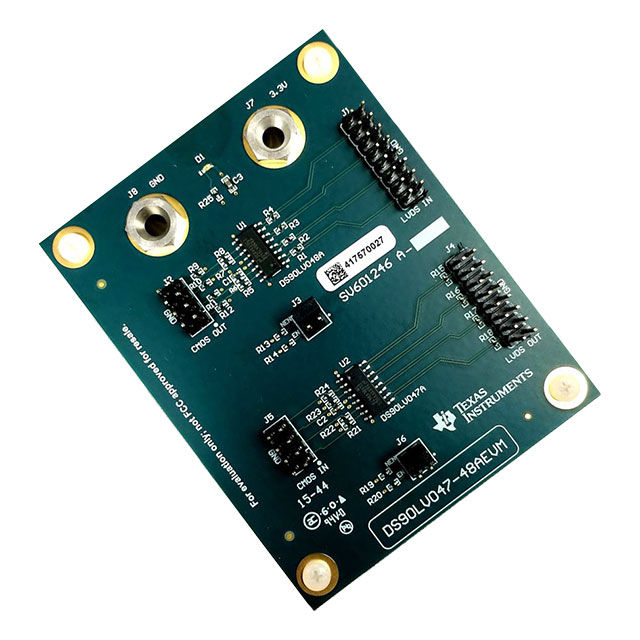

Texas Instruments DS90LV047-48AEVM										Interface					Digital Cable Driver	Board(s)	DS90LV047A DS90LV048A
Texas Instruments DS90LV047ATMX	LVDS	400 Mbps	85 °C	-40 °C	4	0	3.6 V	3 V	Surface Mount	Driver	16-SOIC	0.154 in	3.9 mm	16-SOIC
Texas Instruments DS90LV047ATMX/DRPB	LVDS	400 Mbps	85 °C	-40 °C	4	0	3.6 V	3 V	Surface Mount	Driver	16-SOIC	0.154 in	3.9 mm	16-SOIC
Texas Instruments DS90LV047ATM/DRPB	LVDS	400 Mbps	85 °C	-40 °C	4	0	3.6 V	3 V	Surface Mount	Driver	16-SOIC	0.154 in	3.9 mm	16-SOIC
Texas Instruments DS90LV047ATMTC	LVDS	400 Mbps	85 °C	-40 °C	4	0	3.6 V	3 V	Surface Mount	Driver	16-TSSOP	0.173 in	4.4 mm
Texas Instruments DS90LV047ATM/NOPB	LVDS	400 Mbps	85 °C	-40 °C	4	0	3.6 V	3 V	Surface Mount	Driver	16-SOIC	0.154 in	3.9 mm	16-SOIC
Texas Instruments DS90LV047ATMTCX/DRPB	LVDS	400 Mbps	85 °C	-40 °C	4	0	3.6 V	3 V	Surface Mount	Driver	16-TSSOP	0.173 in	4.4 mm	16-TSSOP

Catalog

400-Mbps LVDS quad high-speed differential driver

Key Features

• >400-Mbps (200 MHz) Switching RatesFlow-Through Pinout Simplifies PCB Layout300-ps Typical Differential Skew400-ps Maximum Differential Skew1.7-ns Maximum Propagation Delay3.3-V Power Supply Design±350-mV Differential SignalingLow Power Dissipation (13 mW at 3.3-V Static)Interoperable With Existing 5-V LVDS ReceiversHigh impedance on LVDS Outputs on Power DownConforms to TIA/EIA-644 LVDS StandardIndustrial Operating Temperature Range (–40°C to +85°C)Available in Surface Mount SOIC and Low Profile TSSOP Package>400-Mbps (200 MHz) Switching RatesFlow-Through Pinout Simplifies PCB Layout300-ps Typical Differential Skew400-ps Maximum Differential Skew1.7-ns Maximum Propagation Delay3.3-V Power Supply Design±350-mV Differential SignalingLow Power Dissipation (13 mW at 3.3-V Static)Interoperable With Existing 5-V LVDS ReceiversHigh impedance on LVDS Outputs on Power DownConforms to TIA/EIA-644 LVDS StandardIndustrial Operating Temperature Range (–40°C to +85°C)Available in Surface Mount SOIC and Low Profile TSSOP Package

Description

The DS90LV047A device is a quad CMOS flow-through differential line driver designed for applications requiring ultra-low power dissipation and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) using Low Voltage Differential Signaling (LVDS) technology. The DS90LV047A accepts low voltage TTL/CMOS input levels and translates them to low voltage (350 mV) differential output signals. In addition, the driver supports a TRI-STATE function that may be used to disable the output stage, disabling the load current, and thus dropping the device to an ultra low idle power state of 13 mW typical. The DS90LV047A has a flow-through pinout for easy PCB layout. The EN and EN∗inputs are ANDed together and control the TRI-STATE outputs. The enables are common to all four drivers. The DS90LV047A and companion line receiver (DS90LV048A) provide a new alternative to high power psuedo-ECL devices for high speed point-to-point interface applications. The DS90LV047A device is a quad CMOS flow-through differential line driver designed for applications requiring ultra-low power dissipation and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) using Low Voltage Differential Signaling (LVDS) technology. The DS90LV047A accepts low voltage TTL/CMOS input levels and translates them to low voltage (350 mV) differential output signals. In addition, the driver supports a TRI-STATE function that may be used to disable the output stage, disabling the load current, and thus dropping the device to an ultra low idle power state of 13 mW typical. The DS90LV047A has a flow-through pinout for easy PCB layout. The EN and EN∗inputs are ANDed together and control the TRI-STATE outputs. The enables are common to all four drivers. The DS90LV047A and companion line receiver (DS90LV048A) provide a new alternative to high power psuedo-ECL devices for high speed point-to-point interface applications.
