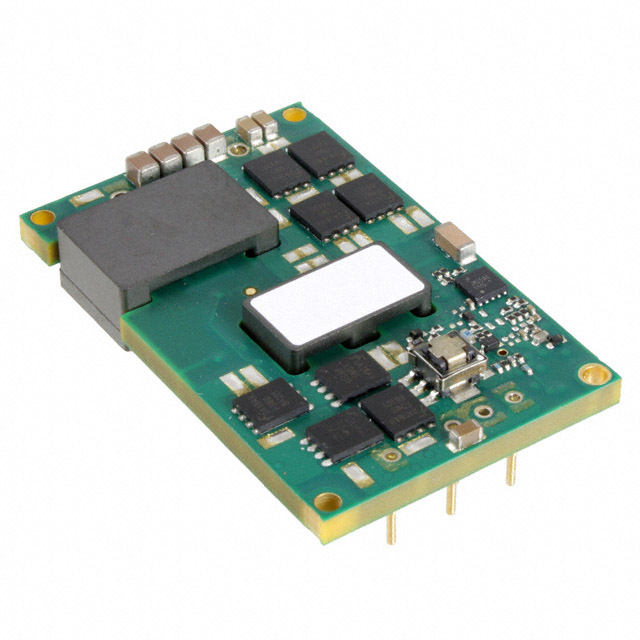

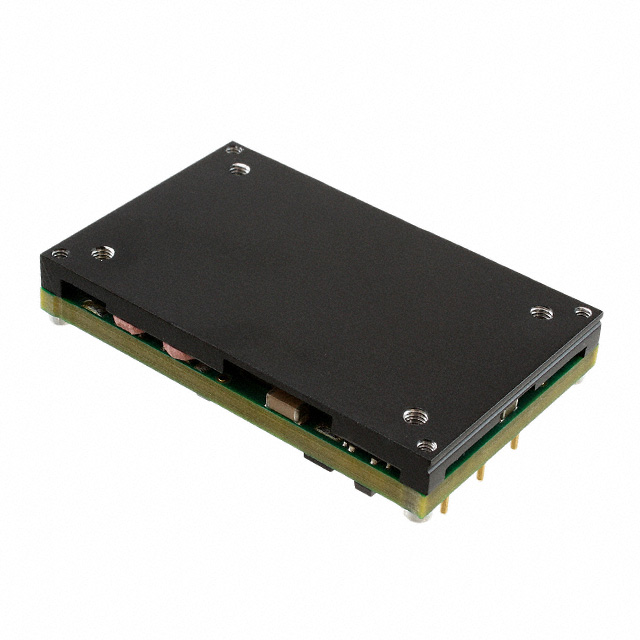

UWQ-12 Series

Catalog

DC DC CONVERTER 12V 204W

Part	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output (Max) [Max]	Package / Case	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Voltage - Output 1	Voltage - Input (Min) [Min]	Type	Number of Outputs	Voltage - Input (Max) [Max]	Features	Applications	Efficiency	Size / Dimension [z]	Size / Dimension [y]
Murata Electronics UWQ-12/17-Q48NTB9-C	Active Low Enable	85 °C	-40 C	Through Hole	17 A	8-DIP Module	2250 VDC	0.46 in	2.3 in	1.45 in	58.4 mm	11.7 mm	36.8 mm	204 W	12 V	18 V	Isolated Module	1	80 V	OVP Remote On/Off SCP UVLO	ITE (Commercial)	92 %
Murata Electronics UWQ-12/20-T48NBS-C	Active Low Enable	85 °C	-40 C	Through Hole	20 A	8-DIP Module 5 Leads 1/4 Brick	2250 VDC	0.5 in	2.3 in	1.45 in	58.4 mm			240 Watts	12 V	18 V	Isolated Module	1	60 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	92 %	12.7 mm	36.8 mm
Murata Electronics UWQ-12/17-Q48NT-C	Active Low Enable	85 °C	-40 C	Through Hole	17 A	8-DIP Module	2250 VDC	0.46 in	2.3 in	1.45 in	58.4 mm	11.7 mm	36.8 mm	204 W	12 V	18 V	Isolated Module	1	80 V	OVP Remote On/Off SCP UVLO	ITE (Commercial)	92 %

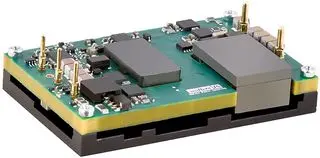

Murata Electronics UWQ-12/17-Q48NB-C	Active Low Enable	85 °C	-40 C	Through Hole	17 A	5-DIP Module 1/4 Brick	2250 VDC	0.5 in	2.3 in	1.45 in	58.4 mm			204 W	12 V	18 V	Isolated Module	1	75 V	Remote On/Off UVLO	ITE (Commercial)	92 %	12.7 mm	36.8 mm
Murata Electronics UWQ-12/17-Q48N-C	Active Low Enable	85 °C	-40 C	Through Hole	17 A	5-DIP Module 1/4 Brick	2250 VDC	0.46 in	2.3 in	1.45 in	58.4 mm	11.7 mm	36.8 mm	204 W	12 V	18 V	Isolated Module	1	75 V	Remote On/Off UVLO	ITE (Commercial)	92 %
Murata Electronics UWQ-12/17-Q48PTB9-C	Active High Enable	85 °C	-40 C	Through Hole	17 A	8-DIP Module	2250 VDC	0.46 in	2.3 in	1.45 in	58.4 mm	11.7 mm	36.8 mm	204 W	12 V	18 V	Isolated Module	1	80 V	OVP Remote On/Off SCP UVLO	ITE (Commercial)	92 %
Murata Electronics UWQ-12/20-T48NB-C	Active Low Enable	85 °C	-40 C	Through Hole	20 A	8-DIP Module 5 Leads 1/4 Brick	2250 VDC	0.5 in	2.3 in	1.45 in	58.4 mm			240 Watts	12 V	18 V	Isolated Module	1	60 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	92 %	12.7 mm	36.8 mm
Murata Electronics UWQ-12/20-T48N-C	Active Low Enable	85 °C	-40 C	Through Hole	20 A	8-DIP Module 5 Leads 1/4 Brick	2250 VDC	0.46 in	2.3 in	1.45 in	58.4 mm	11.7 mm	36.8 mm	240 Watts	12 V	18 V	Isolated Module	1	60 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	92 %
Murata Electronics UWQ-12/20-T48NTB-C	Active Low Enable	85 °C	-40 C	Through Hole	20 A	8-DIP Module 5 Leads 1/4 Brick	2250 VDC	0.48 "	2.3 in	1.45 in	58.4 mm			240 Watts	12 V	18 V	Isolated Module	1	60 V	OCP OTP OVP Remote On/Off SCP UVLO	ITE (Commercial)	92 %	12.2 mm	36.8 mm
