1634521 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

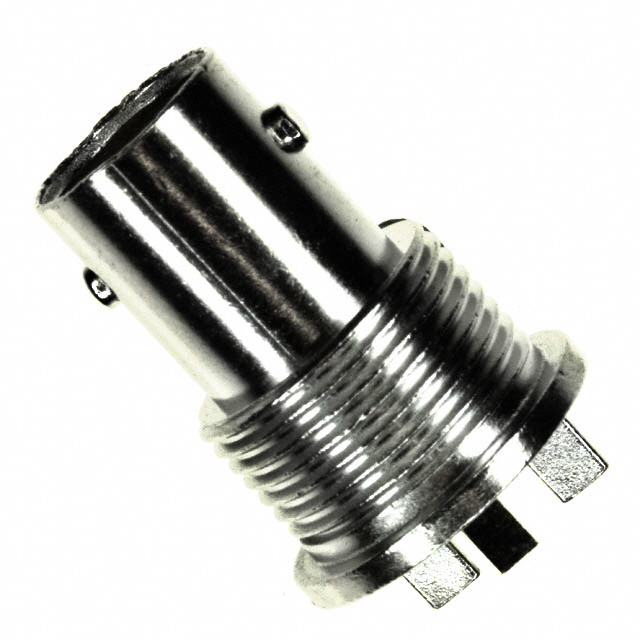

CONN BNC JACK STR 50OHM EDGE MNT
| Part | Housing Color | Operating Temperature [Max] | Operating Temperature [Min] | Mating Cycles | Connector Type | Fastening Type | Contact Termination | Body Finish | Mounting Type | Impedance | Voltage Rating | Frequency - Max [Max] | Center Contact Material | Number of Ports | Body Material | Dielectric Material | Shield Termination | Center Contact Plating | Mounting Feature | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Silver | 85 °C | -55 °C | 500 | Female Socket Jack | Bayonet Lock | Solder | Nickel | Board Edge End Launch Panel Mount | 50 Ohms | 500 V | 4 GHz | Phosphor Bronze | 1 | Zinc Alloy | Polymethylpentene (PMP) | Solder | Gold | Bulkhead - Front Side Nut | BNC |
 TE Connectivity Raychem Cable Protection | Silver | 85 °C | -55 °C | 500 | Female Socket Jack | Bayonet Lock | Solder | Nickel | Board Edge End Launch Panel Mount | 50 Ohms | 500 V | 4 GHz | Phosphor Bronze | 1 | Zinc Alloy | Polymethylpentene (PMP) | Solder | Gold | Bulkhead - Front Side Nut | BNC |
