ETMA1601563 Series
Manufacturer: CUI Inc.
Beta
⌘K

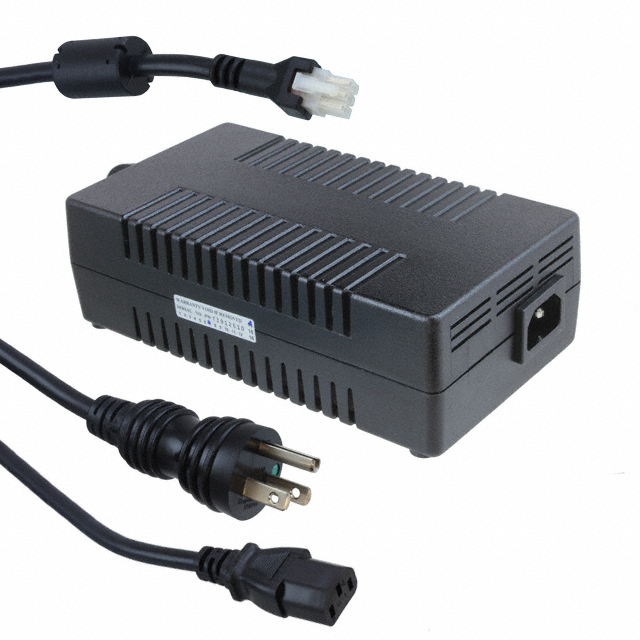

AC/DC DESKTOP ADAPTER 16V 250W
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Output | Form | Current - Output (Max) [Max] | Output Connector | Output Connector | Region Utilized | Applications | No Load Power Consumption | Input Type | Standard Number | Power (Watts) | Weight | Weight | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Cord Length | Cord Length | Input Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 60 mm | 7.42 in | 104.5 mm | 4.11 in | 188.5 mm | 2.36 in | 16 V | Desktop (Class I) | 15.63 A | Rectangular | 6 Position | North America | Medical | 500 mW | Cord | 60601-1 | 250 W | 1.1 kg | 2.4 lbs | 264 VAC | 90 VAC | TUV UL | 50 °C | 0 °C | Level V | 31.5 in | 0.8 m | IEC 320-C14 |
