2SK2376 Series

Catalog

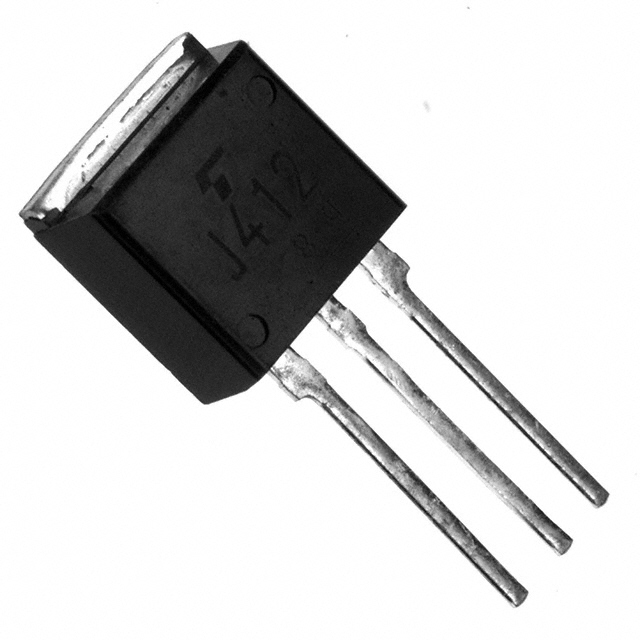

MOSFET N-CH 60V 45A TO220FL

Part	Power Dissipation (Max)	Supplier Device Package	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds [Max]	FET Type	Operating Temperature	Package / Case	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	Mounting Type	Technology	Vgs (Max)	Drive Voltage (Max Rds On, Min Rds On) [Max]	Drive Voltage (Max Rds On, Min Rds On) [Min]
Toshiba Semiconductor and Storage 2SK2376(Q)	100 W	TO-220FL	2 V	3350 pF	N-Channel	150 °C	TO-220-3 Short Tab	45 A	60 V	110 nC	17 mOhm	Through Hole	MOSFET (Metal Oxide)	20 V	4 V	10 V
