09300060 Series

Manufacturer: HARTING

Catalog

HAN B BASE PANEL 1 LEVER THERMOPLASTIC C

Part	Style	Connector Type	Lock Location	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Features	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Housing Color	Size	Ingress Protection	Size / Dimension [y]	Size / Dimension [z]	Thread Size
HARTING 09300060303	Bottom Entry	Base - Panel Mount	Locking Clip (1) on Hood	1.138 "	80 mm	3.15 "	28.9 mm	43.4 mm	1.709 "	Cover

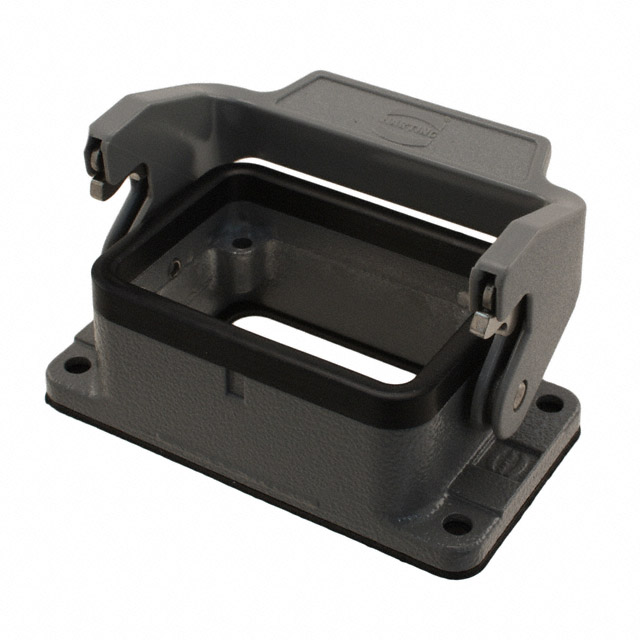

HARTING 09300060301	Bottom Entry	Base - Panel Mount	Locking Clip (1) on Base Bottom	1.138 "	80 mm	3.15 "	28.9 mm	43.4 mm	1.709 "		Powder Coated	125 °C	-40 C	Aluminum Die Cast	Gray	6B	IP65 - Dust Tight Water Resistant

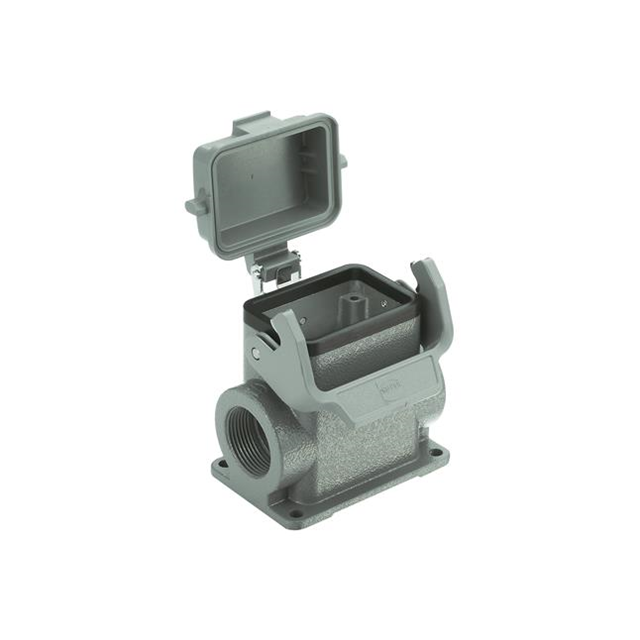

HARTING 09300060298	Side Entry	Base - Box Mount	Locking Clip (1) on Base Bottom	2.906 in	82 mm	3.228 in			2.244 "		Powder Coated	125 °C	-40 C	Aluminum Die Cast	Gray	6B	IP65 - Dust Tight Water Resistant	57 mm	73.8 mm	PG29

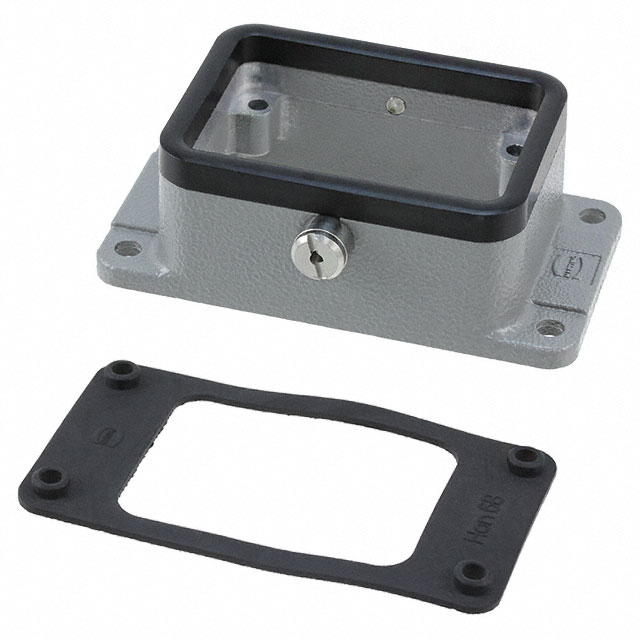

HARTING 09300060381	Bottom Entry	Base - Panel Mount	Locking Clip (1) on Hood	1.138 "	80 mm	3.15 "	28.9 mm	43.4 mm	1.709 "		Powder Coated	125 °C	-40 C	Aluminum Die Cast	Gray	6B	IP65 - Dust Tight Water Resistant
HARTING 09300060313	Bottom Entry	Base - Panel Mount	Locking Clip (1) on Base Bottom	1.138 "	80 mm	3.15 "	28.9 mm	43.4 mm	1.709 "							6B

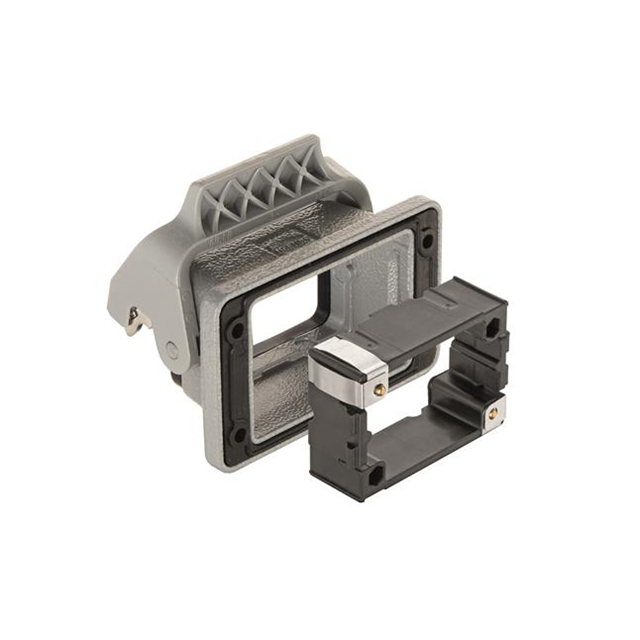

HARTING 09300060391	Bottom Entry	Base - Panel Mount	Locking Clip (1) on Base Bottom	1.354 in 34.4 mm		3.37 " 85.6 mm			2.165 in 55 mm		Powder Coated	125 °C	-40 C	Aluminum Die Cast	Gray	6B	IP66 - Dust Tight Water Resistant

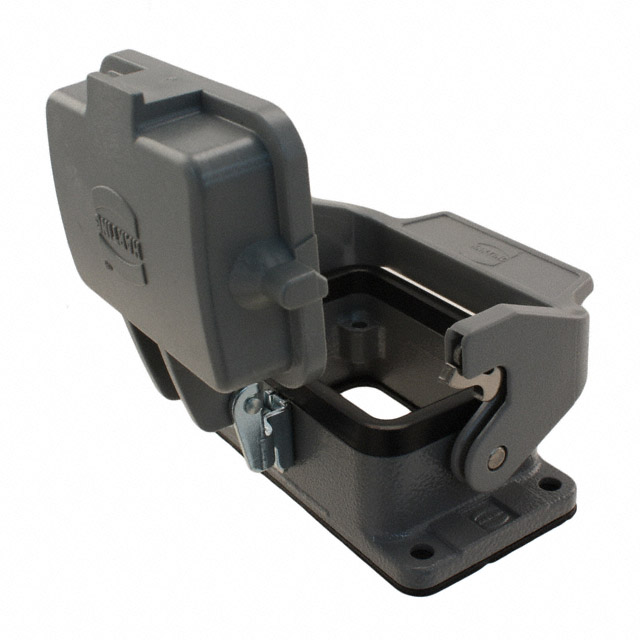

HARTING 09300060302	Bottom Entry	Base - Panel Mount	Locking Clip (1) on Base Bottom	1.138 "	80 mm	3.15 "	28.9 mm	43.4 mm	1.709 "	Cover	Powder Coated	125 °C	-40 C	Aluminum Die Cast	Gray	6B	IP65 - Dust Tight Water Resistant
HARTING 09300060292	Side Entry	Base - Box Mount	Locking Clip (1) on Base Bottom	2.906 in	82 mm	3.228 in			2.244 "	Feed Through	Powder Coated	125 °C	-40 C	Aluminum Die Cast	Gray	6B	IP65 - Dust Tight Water Resistant	57 mm	73.8 mm	PG21

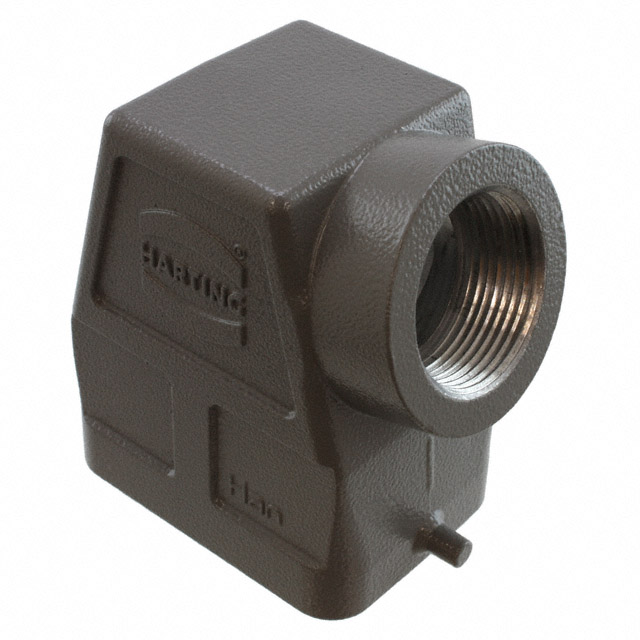

HARTING 09300060542	Side Entry	Hood	Locking Clip (1) on Base Bottom	2.835 "	60 mm	2.362 in	72 mm	43 mm	1.693 "		Powder Coated	125 °C	-40 C	Aluminum Die Cast	Gray	6B	IP65 - Dust Tight Water Resistant			PG21
HARTING 09300060543	Side Entry	Hood	Locking Clip (1) on Base Bottom	2.835 "	60 mm	2.362 in	72 mm	43 mm	1.693 "		Powder Coated	125 °C	-40 C	Aluminum Die Cast	Gray	6B	IP65 - Dust Tight Water Resistant			PG29
