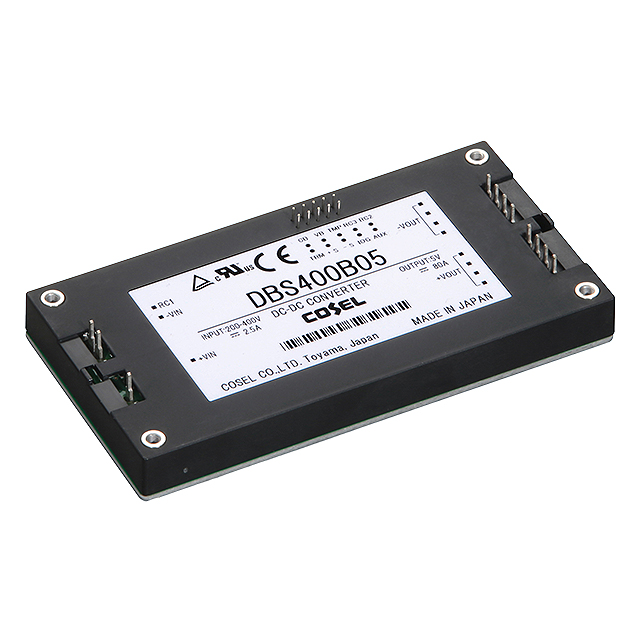

DBS400 Series

Catalog

DC DC CONVERTER 28V 406W

Part	Power (Watts)	Applications	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Voltage - Input (Min) [Min]	Efficiency	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Type	Voltage - Isolation	Features
Cosel USA, Inc. DBS400B28	406 W	ITE (Commercial)	400 VDC	85 °C	-20 °C	28 V	200 V	88 %	1	14.5 A	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole	21-DIP Module	Isolated Module
Cosel USA, Inc. DBS400B24		ITE (Commercial)	400 VDC	85 °C	-20 ░C	24 V	200 V	87 %	1	17 A	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole	21-DIP Module	Isolated Module	3000 V	OCP OTP OVP Remote On/Off
Cosel USA, Inc. DBS400B03	264 W	ITE (Commercial)	400 VDC	85 °C	-20 °C	3.3 V	200 V	79 %	1	80 A	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole	21-DIP Module	Isolated Module
Cosel USA, Inc. DBS400B07	405 W	ITE (Commercial)	400 VDC	85 °C	-20 °C	7.5 V	200 V	86 %	1	54 A	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole	21-DIP Module	Isolated Module
Cosel USA, Inc. DBS400B12	408 W	ITE (Commercial)	400 VDC	85 °C	-20 °C	12 V	200 V	87 %	1	34 A	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole	21-DIP Module	Isolated Module
Cosel USA, Inc. DBS400B18	396 W	ITE (Commercial)	400 VDC	85 °C	-20 °C	18 V	200 V	89 %	1	22 A	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole	21-DIP Module	Isolated Module
Cosel USA, Inc. DBS400B05	400 W	ITE (Commercial)	400 VDC	85 °C	-20 °C	5 V	200 V	83 %	1	80 A	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	Through Hole	21-DIP Module	Isolated Module
