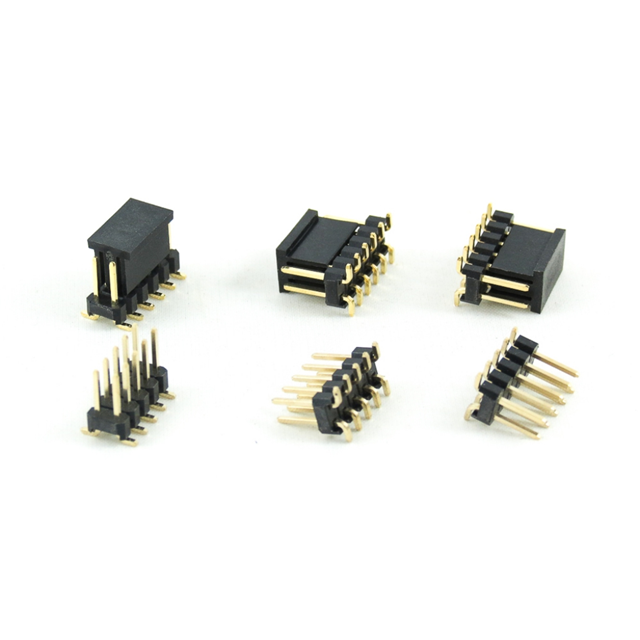

2015 Series

Manufacturer: Oupiin

Catalog

PIN HEADER, DOUBLE ROW, 16 PIN,

Part	Contact Finish Thickness - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Mounting Type	Contact Type	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Material Flammability Rating	Contact Material	Contact Finish - Mating	Connector Type	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Positions Loaded	Contact Finish - Post	Shrouding	Number of Positions	Termination	Number of Rows	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Features
Oupiin 2015-2X08G00DB	Flash	Square	-40 C	105 ░C	0.098 "	2.5 mm	Flash	Surface Mount	Male Pin	2	0.1 "	2.54 mm	Plastic	0.1 in	2.54 mm	2 A	UL94 V-0	Copper Alloy	Gold	Header Header Cuttable	0.244 in	6.2 mm	Push-Pull	All	Gold	Unshrouded	16	Solder
Oupiin 2015-2X03G01DB		Square	-40 C	105 ░C	0.098 "	2.5 mm		Surface Mount	Male Pin	2	0.1 "	2.54 mm	Plastic	0.1 in	2.54 mm	2 A	UL94 V-0	Copper Alloy	Gold	Header	0.244 in	6.2 mm	Push-Pull	All	Gold	Unshrouded	6	Solder
Oupiin 2015-2X05G01DB		Square	-40 C	105 ░C	0.098 "	2.5 mm		Surface Mount	Male Pin	2	0.1 "	2.54 mm	Plastic	0.1 in	2.54 mm	2 A	UL94 V-0	Copper Alloy	Gold	Header Header Cuttable	0.244 in	6.2 mm	Push-Pull	All	Gold	Unshrouded	10	Solder
Oupiin 2015-2X10G00DB	Flash	Square	-40 C	105 ░C	0.098 "	2.5 mm	Flash	Surface Mount	Male Pin	2	0.1 "	2.54 mm	Plastic	0.1 in	2.54 mm	2 A	UL94 V-0	Copper Alloy	Gold	Header Header Cuttable	0.244 in	6.2 mm	Push-Pull	All	Gold	Unshrouded	20	Solder

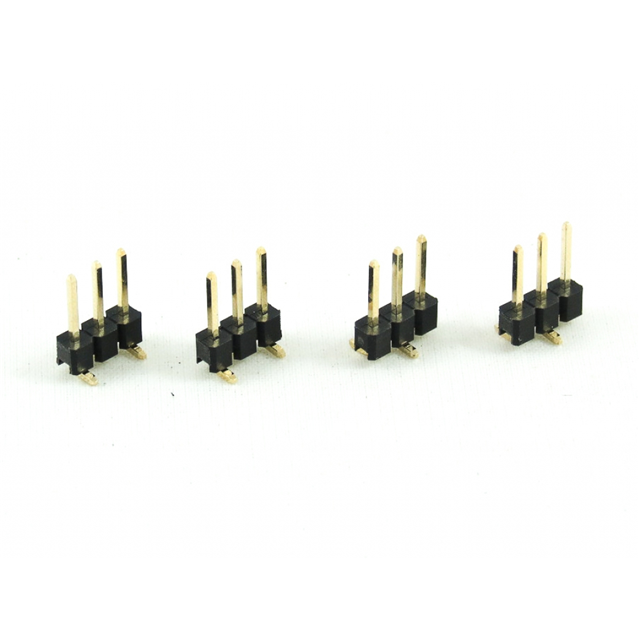

Oupiin 2015-1X02G01DAB		Square	-40 C	105 ░C	0.098 "	2.5 mm		Surface Mount	Male Pin		0.1 "	2.54 mm	Plastic			2 A	UL94 V-0	Copper Alloy	Gold	Header	0.244 in	6.2 mm	Push-Pull	All	Gold	Unshrouded	2	Solder	1
Oupiin 2015-2X06G00D-7.4-6.2-0.8T-P	Flash	Square	-40 C	105 ░C	0.098 "	2.5 mm	Flash	Surface Mount	Male Pin	2	0.1 "	2.54 mm	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	3 A	UL94 V-0	Brass	Gold	Header Header Cuttable	0.244 in	6.2 mm	Push-Pull	All	Gold	Unshrouded	12	Solder		Black	0.059 in	1.5 mm	Pick and Place
Oupiin 2015-2X20G00DB	Flash	Square	-40 C	105 ░C	0.098 "	2.5 mm	Flash	Surface Mount	Male Pin	2	0.1 "	2.54 mm	Plastic	0.1 in	2.54 mm	2 A	UL94 V-0	Copper Alloy	Gold	Header Header Cuttable	0.244 in	6.2 mm	Push-Pull	All	Gold	Unshrouded	40	Solder
Oupiin 2015-2X13G00DT-P	Flash	Square	-40 C	105 ░C	0.098 "	2.5 mm	Flash	Surface Mount	Male Pin	2	0.1 "	2.54 mm	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	3 A	UL94 V-0	Brass	Gold	Header Header Cuttable	0.244 in	6.2 mm	Push-Pull	All	Gold	Unshrouded	26	Solder		Black	0.059 in	1.5 mm	Pick and Place
Oupiin 2015-1X03G01DAB		Square	-40 C	105 ░C	0.098 "	2.5 mm		Surface Mount	Male Pin		0.1 "	2.54 mm	Plastic			2 A	UL94 V-0	Copper Alloy	Gold	Header	0.244 in	6.2 mm	Push-Pull	All	Gold	Unshrouded		Solder	1
Oupiin 2015-2X05G00D/074/081/080B	Flash	Square	-40 C	105 ░C	0.098 "	2.5 mm	Flash	Surface Mount	Male Pin	2	0.1 "	2.54 mm	Nylon 6T Polyamide (PA6T)	0.1 in	2.54 mm	3 A	UL94 V-0	Brass	Gold	Header Header Cuttable	0.319 in	8.1 mm	Push-Pull	All	Gold	Unshrouded	10	Solder		Black	0.059 in	1.5 mm
