SLS1 Series

Catalog

SWITCH SLIDE SPDT 250MA 125V

Part	Electrical Life	Actuator Material	Mechanical Life	Switch Travel	Operating Force	Switch Function	Actuator Type	Actuator Length [x]	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Circuit	Features	Contact Material	Mounting Type	Termination Style	Current Rating (Amps)	Contact Timing

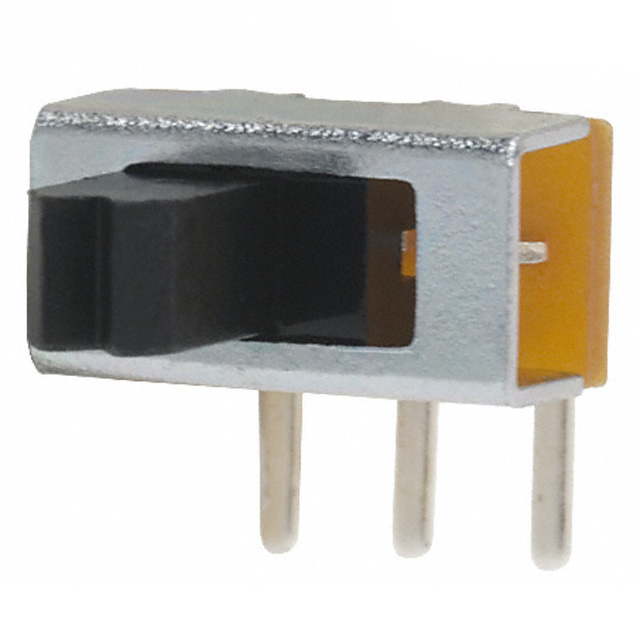

TE Connectivity AMP Connectors SLS121RA	6000 Cycles	Polybutylene Terephthalate (PBT)	10000 Steps	3.2 mm	0.25 kgf	On-On	Standard	5 mm	125 V	12 V	85 °C	-10 °C	Silver	SPDT	Epoxy Sealed Terminals	Copper Alloy	Right Angle Through Hole	PC Pin	150 mA 250 mA	Non-Shorting (BBM)
TE Connectivity AMP Connectors SLS120	6000 Cycles	Polybutylene Terephthalate (PBT)	10000 Steps	2.69 mm	350 gf	On-On	Standard	4.9 mm	125 V		85 °C	-20 ░C	Silver	SPDT	Epoxy Sealed Terminals	Copper Alloy	Panel Mount	Solder Lug	500 mA	Non-Shorting (BBM)

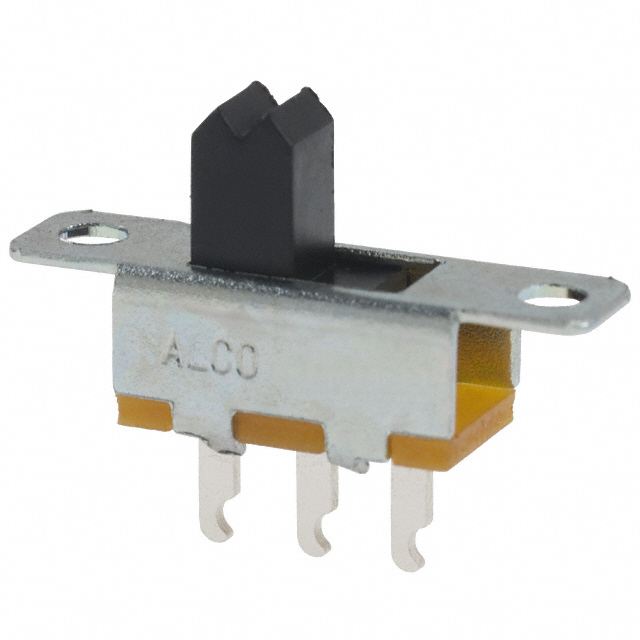

TE Connectivity AMP Connectors SLS121	6000 Cycles	Polybutylene Terephthalate (PBT)	10000 Steps	2.69 mm	350 gf	On-On	Standard	5 mm	125 V	12 V	85 °C	-20 ░C	Silver	SPDT	Epoxy Sealed Terminals	Copper Alloy	Panel Mount	Solder Lug	150 mA 250 mA	Non-Shorting (BBM)
