5580701 Series

Manufacturer: DIALIGHT

Catalog

LED PANEL IND RED SNAP-IN

Part	Millicandela Rating	Lens Transparency	Lens Style	Current	Lamp Color	Wavelength - Peak	Lens Color	Type	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Size	Lens Size	Panel Cutout Shape	Termination Style	Termination Style	Termination Style	Viewing Angle
DIALIGHT 5580701007F	170 mcd	Clear	Round with Domed Top	40 mA	Red	660 nm	Colorless	LED	1.8 V	0.16 in	4.06 mm	3 mm	T-1	Round	Wire Leads	14 in	355.6 mm
DIALIGHT 5580701023F	170 mcd	Clear	Round with Domed Top	40 mA	Red	660 nm	Colorless	LED	1.8 V	0.16 in	4.06 mm	3 mm	T-1	Round				45 °
DIALIGHT 5580701001F	170 mcd	Clear	Round with Domed Top	40 mA	Red	660 nm	Colorless	LED	1.8 V	0.16 in	4.06 mm	3 mm	T-1	Round				45 °

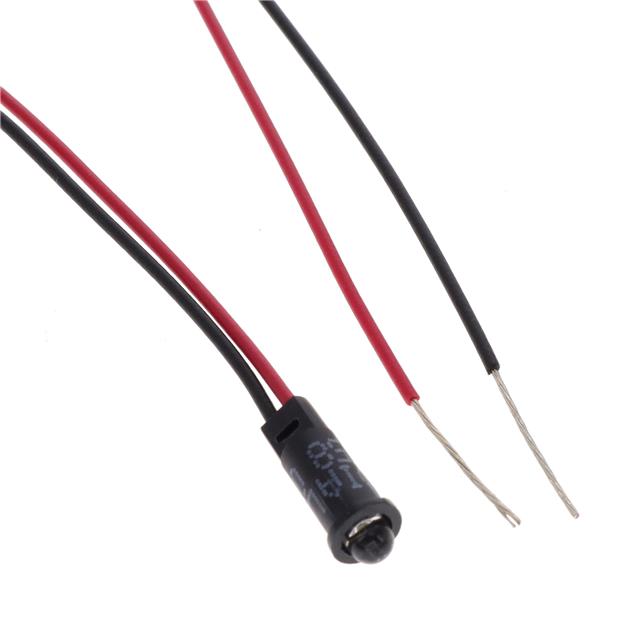

DIALIGHT 5580701003F	170 mcd	Clear	Round with Domed Top	40 mA	Red	660 nm	Colorless	LED	1.8 V	0.16 in	4.06 mm	3 mm	T-1	Round				45 °

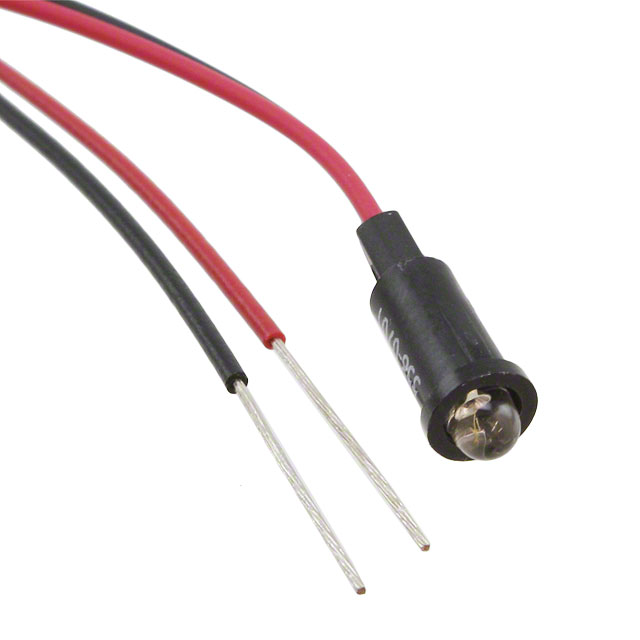

DIALIGHT 5580701027F	170 mcd	Clear	Round with Domed Top	40 mA	Red	660 nm	Colorless	LED	1.8 V	0.16 in	4.06 mm	3 mm	T-1	Round	Wire Leads	14 in	355.6 mm	45 °
