TST06 Series

Catalog

CONNECTOR HOUSING, TRIDENT TST SERIES, PLUG, 6 POSITIONS

Part	Note	Number of Positions	Contact Termination	Insulation Material	Pitch	Pitch	Row Spacing	Row Spacing	Number of Rows [custom]	Mounting Type	Color	Contact Type	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Termination	Voltage Rating	Contact Shape	Insulation Color	Current Rating (Amps)	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Shrouding	Number of Positions Loaded	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Accessory Type	For Use With/Related Products
ITT Cannon, LLC TST06PA00	Contacts Not Included	6	Crimp Solder	Nylon Polyamide (PA)	5.08 mm	0.2 in	5.08 mm	0.2 in	2	Free Hanging (In-Line)	Black	Male or Female	Latch Lock	Plug	-55 C	105 ░C
ITT Cannon, LLC TST06RB05Y		6		Nylon Polyamide (PA)					2	Through Hole		Male Pin	Latch Holder	Receptacle	-40 C	105 ░C	Automotive Industrial	Solder	250 V	Circular	Black	13 A	Board to Cable/Wire	0.76 Ám	30 Áin	Mounting Flange	5.7 mm	0.224 in	Gold	0.2 "	5.08 mm	UL94 V-0	Unshrouded	All	13.5 mm	0.531 in	5.08 mm	0.2 in
ITT Cannon, LLC TST06RB02Z		6		Nylon Polyamide (PA)					2	Through Hole		Female Socket	Latch Holder	Receptacle	-40 C	105 ░C	Automotive General Purpose	Solder		Circular	Black		Board to Board Cable			Mounting Flange	5.7 mm	0.224 in	Gold	0.2 "	5.08 mm	UL94 V-0		All	13.5 mm	0.531 in	5.08 mm	0.2 in	Flash

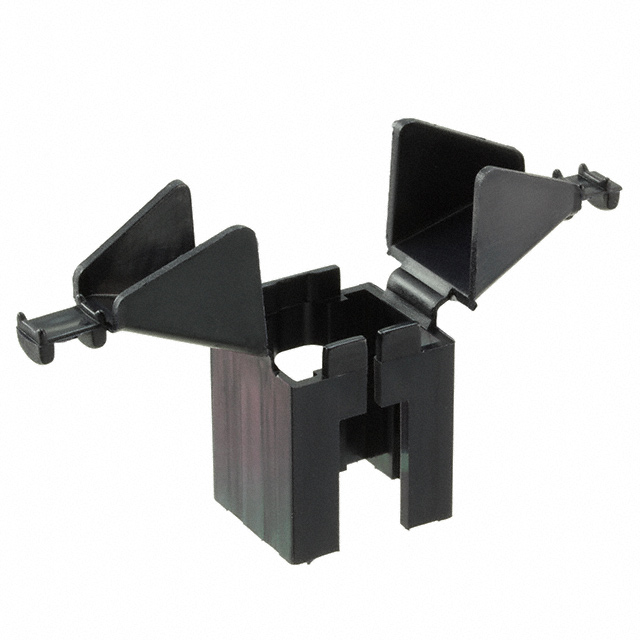

ITT Cannon, LLC TST06AH00		6																																						Hood and Strain Relief	Trident Rectangular Plugs
ITT Cannon, LLC TST06PH00	Contacts Not Included	6	Crimp Solder	Nylon Polyamide (PA)	5.08 mm	0.2 in	5.08 mm	0.2 in	2	Free Hanging (In-Line)	Black	Male or Female	Latch Lock	Plug	-55 C	105 ░C										Strain Relief
