HGG.2B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 16P SOLDER CUP

Part	Primary Material	Mounting Feature	Shell Size - Insert [custom]	Mounting Type	Fastening Type	Shielding	Ingress Protection	Features	Insert Material	Material Flammability Rating	Contact Finish - Mating	Current Rating (Amps)	Number of Positions	Shell Finish	Color	Contact Material	Orientation [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert
LEMO HGG.2B.316.CLLPV	Metal	Bulkhead - Rear Side Nut	316	Panel Mount	Push-Pull	Shielded	IP68 - Dust Tight Waterproof	Potted Vacuumtight	Polyetheretherketone (PEEK)	UL94 V-0	Gold	6 A	16	Chrome	Silver	Bronze	G	80 °C	-20 ░C	Receptacle Female Sockets	Brass	1.5 Ám	59 Áin

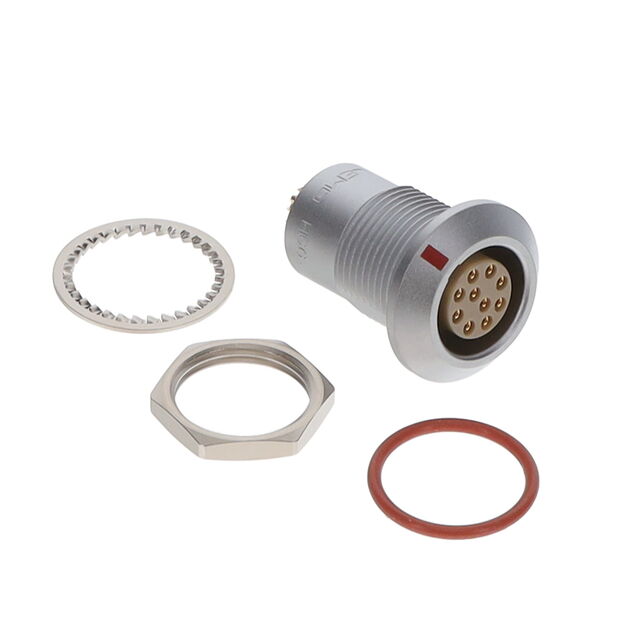

LEMO HGG.2B.310.CLLP	Metal	Bulkhead - Rear Side Nut		Panel Mount	Push-Pull	Shielded	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	Gold	8 A	10	Chrome	Silver	Bronze	G	80 °C	-20 ░C	Receptacle Female Sockets	Brass	1.5 Ám	59 Áin	310
LEMO HGG.2B.305.CLLP	Metal	Bulkhead - Rear Side Nut		Panel Mount	Push-Pull	Shielded	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	Gold	14 A	5	Chrome	Silver	Bronze	G	80 °C	-20 ░C	Receptacle Female Sockets	Brass	1.5 Ám	59 Áin	305
LEMO HGG.2B.319.CLLP	Metal	Bulkhead - Rear Side Nut		Panel Mount	Push-Pull	Shielded	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	Gold	5 A	19	Chrome	Silver	Bronze	G	80 °C	-20 ░C	Receptacle Female Sockets	Brass	1.5 Ám	59 Áin	319
LEMO HGG.2B.310.CLLPV	Metal	Bulkhead - Rear Side Nut		Panel Mount	Push-Pull	Shielded	IP68 - Dust Tight Waterproof	Potted Vacuumtight	Polyetheretherketone (PEEK)	UL94 V-0	Gold	8 A	10	Chrome	Silver	Bronze	G	80 °C	-20 ░C	Receptacle Female Sockets	Brass	1.5 Ám	59 Áin	310
LEMO HGG.2B.319.CLLPV	Metal	Bulkhead - Rear Side Nut		Panel Mount	Push-Pull	Shielded	IP68 - Dust Tight Waterproof	Potted Vacuumtight	Polyetheretherketone (PEEK)	UL94 V-0	Gold	5 A	19	Chrome	Silver	Bronze	G	80 °C	-20 ░C	Receptacle Female Sockets	Brass	1.5 Ám	59 Áin	319
LEMO HGG.2B.314.CLLP	Metal	Bulkhead - Rear Side Nut		Panel Mount	Push-Pull	Shielded	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	Gold	6.5 A	14	Chrome	Silver	Bronze	G	80 °C	-20 ░C	Receptacle Female Sockets	Brass	1.5 Ám	59 Áin	314
LEMO HGG.2B.332.CLLPV	Metal	Bulkhead - Rear Side Nut		Panel Mount	Push-Pull	Shielded	IP68 - Dust Tight Waterproof	Potted Vacuumtight	Polyetheretherketone (PEEK)	UL94 V-0	Gold	1.5 A		Chrome	Silver	Bronze	G	80 °C	-20 ░C	Receptacle Female Sockets	Brass	1.5 Ám	59 Áin	332
LEMO HGG.2B.316.CLLP	Metal	Bulkhead - Rear Side Nut	316	Panel Mount	Push-Pull	Shielded	IP68 - Dust Tight Waterproof	Potted	Polyetheretherketone (PEEK)	UL94 V-0	Gold	6 A	16	Chrome	Silver	Bronze	G	80 °C	-20 ░C	Receptacle Female Sockets	Brass	1.5 Ám	59 Áin
LEMO HGG.2B.312.CLLPV	Metal	Bulkhead - Rear Side Nut		Panel Mount	Push-Pull	Shielded	IP68 - Dust Tight Waterproof	Potted Vacuumtight	Polyetheretherketone (PEEK)	UL94 V-0	Gold	7 A	12	Chrome	Silver	Bronze	G	80 °C	-20 ░C	Receptacle Female Sockets	Brass	1.5 Ám	59 Áin	312
