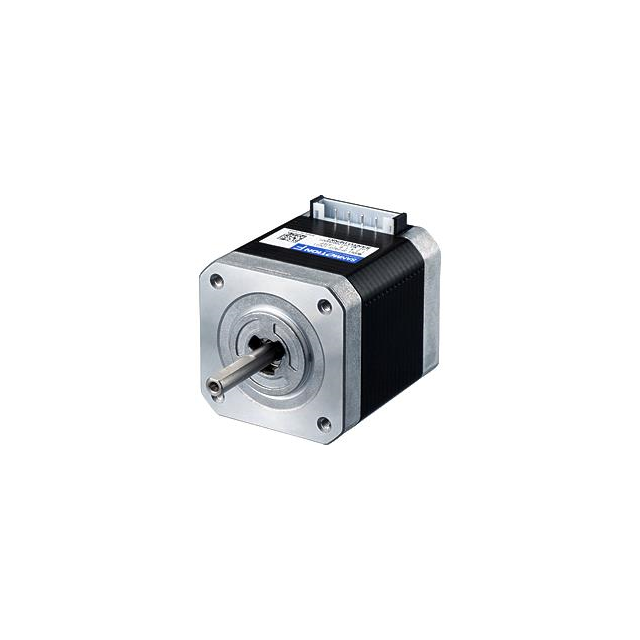

SF2423 Series
Manufacturer: Sanyo Denki SanMotion Products
Beta
⌘K
STEP, F2, SQ.42, 1.8, , , BIPOLA
| Part | Rotor Inertia | Approval Agency | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | Current Rating (Amps) | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Rated | Coil Resistance | Step Angle | Termination Style | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Steps per Revolution | Coil Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki SanMotion Products | 1.52 gcm² | CE cURus TUV | 560 mNm | 79.3 oz-in | 1 A | 31 mm | 1.22 in | 1.654 in | 42 mm | 1.654 in | 42 mm | 0.197 in | 5 mm | 50 °C | -10 °C | 24 VDC | 5.3 Ohms | 1.8 ° | Connector | 24 mm | 0.945 " | 200 | Bipolar | Hybrid |
