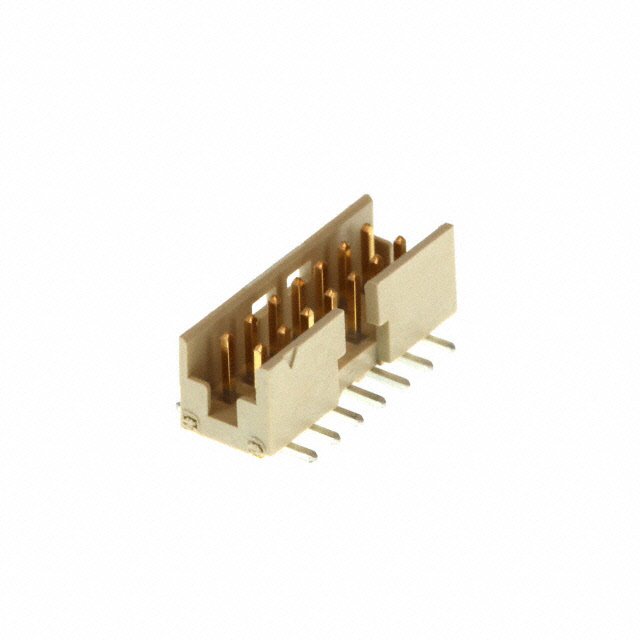

98424 Series

Catalog

CONN HEADER SMD 34POS 2MM

...

Part	Style	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Number of Positions	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Features	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Number of Positions Loaded	Contact Shape	Insulation Height	Insulation Height	Insulation Color	Contact Material	Contact Finish Thickness - Mating	Voltage Rating	Connector Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Type	Mounting Type	Contact Finish - Post	Contact Finish - Mating	Termination	Number of Rows	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Amphenol ICC (FCI) 98424-F52-34LF	Board to Board Cable	2 çm	78.7 çin	Latch Holder	34	Thermoplastic	0.079 in	2 mm	Keying Slot	Shrouded - 4 Wall	0.079 in	2 mm	2 A	All	Square	0.244 in	6.2 mm	Cream	Copper Alloy	Flash	200 V	Header	UL94 V-0	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Gold	Solder	2
Amphenol ICC (FCI) 98424-G52-12-B04LF	Board to Board Cable	2 çm	78.7 çin	Latch Holder	12	Thermoplastic	0.079 in	2 mm	Keying Slot	Shrouded - 4 Wall	0.079 in	2 mm	2 A		Square	0.244 in	6.2 mm	Black	Copper Alloy		200 V	Header	UL94 V-0	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Gold GXT™	Solder	2	11	30 Áin	0.76 Ám
Amphenol ICC (FCI) 98424-G52-22ULF	Board to Board Cable	2 çm	78.7 çin	Latch Holder	22 positions	Thermoplastic	0.079 in	2 mm	Keying Slot	Shrouded - 4 Wall	0.079 in	2 mm	2 A	All	Square	0.244 in	6.2 mm	Cream	Copper Alloy		200 V	Header	UL94 V-0	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Gold GXT™	Solder	2		30 Áin	0.76 Ám
Amphenol ICC (FCI) 98424-F52-30ULF	Board to Board Cable	2 çm	78.7 çin	Latch Holder	30	Thermoplastic	0.079 in	2 mm	Keying Slot	Shrouded - 4 Wall	0.079 in	2 mm	2 A	All	Square	0.244 in	6.2 mm	Cream	Copper Alloy	Flash	200 V	Header	UL94 V-0	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Gold	Solder	2

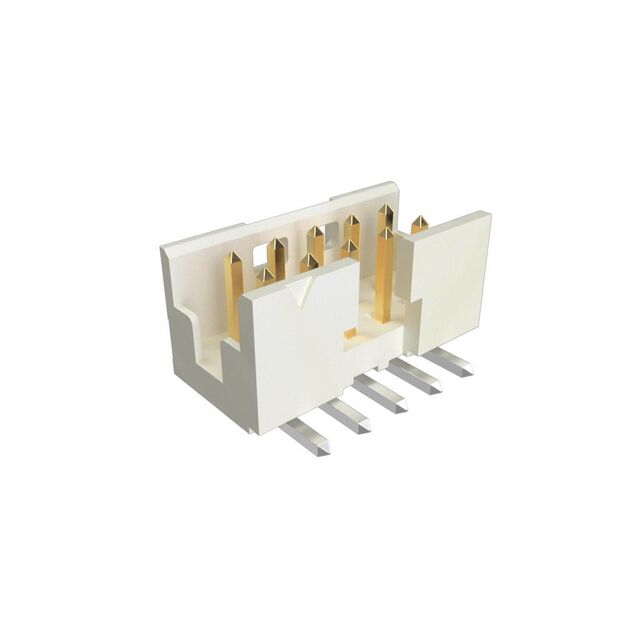

Amphenol ICC (FCI) 98424-F52-10LF	Board to Board Cable	2 çm	78.7 çin	Latch Holder	10	Thermoplastic	0.079 in	2 mm	Keying Slot	Shrouded - 4 Wall	0.079 in	2 mm	2 A	All	Square	0.244 in	6.2 mm	Cream	Copper Alloy	Flash	200 V	Header	UL94 V-0	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Gold	Solder	2
Amphenol ICC (FCI) 98424-F52-20U	Board to Board Cable	2 çm	78.7 çin	Latch Holder	20	Thermoplastic	0.079 in	2 mm	Keying Slot	Shrouded - 4 Wall	0.079 in	2 mm	2 A	All	Square	0.244 in	6.2 mm	Cream	Copper Alloy	Flash	200 V	Header	UL94 V-0	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Gold	Solder	2
Amphenol ICC (FCI) 98424-F52-14A	Board to Board Cable	2 çm	78.7 çin	Latch Holder	14	Thermoplastic	0.079 in	2 mm	Keying Slot Pick and Place	Shrouded - 4 Wall	0.079 in	2 mm	2 A	All	Square	0.244 in	6.2 mm	Cream	Copper Alloy	Flash	200 V	Header	UL94 V-0	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Gold	Solder	2
Amphenol ICC (FCI) 98424-G52-42ALF	Board to Board Cable	2 çm	78.7 çin	Latch Holder	42	Thermoplastic	0.079 in	2 mm	Keying Slot Pick and Place	Shrouded - 4 Wall	0.079 in	2 mm	2 A	All	Square	0.244 in	6.2 mm	Cream	Copper Alloy		200 V	Header	UL94 V-0	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Gold GXT™	Solder	2		30 Áin	0.76 Ám

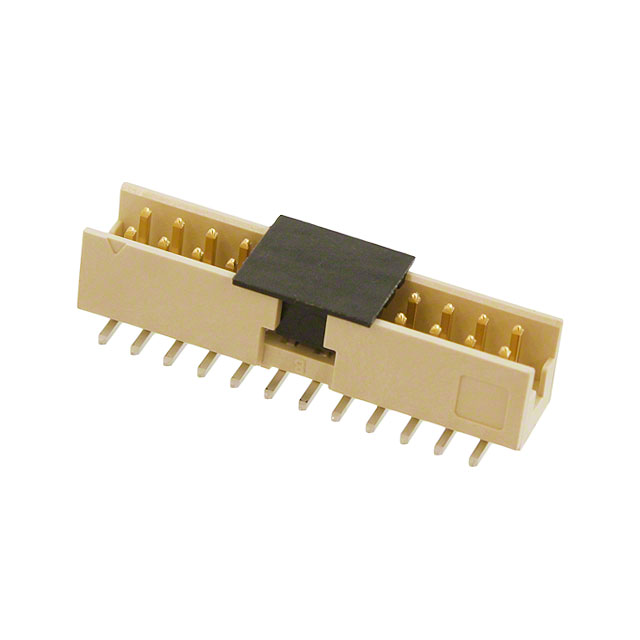

Amphenol ICC (FCI) 98424-F52-24ALF	Board to Board Cable	2 çm	78.7 çin	Latch Holder	24	Thermoplastic	0.079 in	2 mm	Keying Slot Pick and Place	Shrouded - 4 Wall	0.079 in	2 mm	2 A	All	Square	0.244 in	6.2 mm	Cream	Copper Alloy	Flash	200 V	Header	UL94 V-0	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Gold	Solder	2
Amphenol ICC (FCI) 98424-G52-14LF	Board to Board Cable	2 çm	78.7 çin	Latch Holder	14	Thermoplastic	0.079 in	2 mm	Keying Slot	Shrouded - 4 Wall	0.079 in	2 mm	2 A	All	Square	0.244 in	6.2 mm	Cream	Copper Alloy		200 V	Header	UL94 V-0	4 mm	0.157 in	Male Pin	Surface Mount	Tin	Gold GXT™	Solder	2		30 Áin	0.76 Ám
