A782MS Series

Manufacturer: KEMET

Catalog

CAP, 220UF, 35V, ALU, HYBRID, SMD ROHS COMPLIANT: YES

Part	Capacitance	Tolerance	ESR (Equivalent Series Resistance)	Ratings	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Ripple Current @ High Frequency	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Ripple Current @ Low Frequency	Voltage - Rated	Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features
KEMET A782MS227M1VLAS020	220 µF	20 %	20 mOhms	AEC-Q200	0.394 in	10 mm	Surface Mount	0.5 in	12.7 mm	4000 Hrs	4.45 A	Automotive	-55 C	135 °C	Radial Can - SMD	1.78 A	35 V	Hybrid	0.406 "	0.406 in	10.3 mm	10.3 mm
KEMET A782MS157M1HLAS028	150 µF	20 %	28 mOhm	AEC-Q200	0.394 in	10 mm	Surface Mount	0.5 in	12.7 mm	4000 Hrs	3.8 A	Automotive	-55 C	135 °C	Radial Can - SMD	836 mA	50 VDC	Hybrid	0.406 "	0.406 in	10.3 mm	10.3 mm
KEMET A782MS427M1ELAV020	420 µF	20 %	20 mOhms	AEC-Q200	0.394 in	10 mm	Surface Mount			4000 Hrs	4.45 A	Automotive	-55 C	135 °C	Radial Can - SMD	1.78 A	25 VDC	Hybrid			0.406 in	0.425 in	10.8 mm	10.3 mm	13.2 mm	0.52 in	Anti-Vibration
KEMET A782MS107M1JLAS030	100 µF	20 %	30 mOhms	AEC-Q200	0.394 in	10 mm	Surface Mount	0.5 in	12.7 mm	4000 Hrs	3.65 A	Automotive	-55 C	135 °C	Radial Can - SMD	803 mA	63 V	Hybrid	0.406 "	0.406 in	10.3 mm	10.3 mm

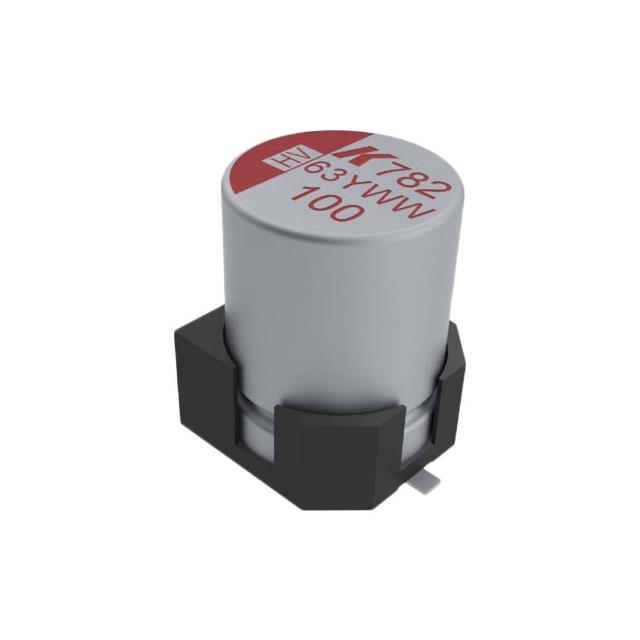

KEMET A782MS107M1JLAV030	100 µF	20 %	30 mOhms	AEC-Q200	0.394 in	10 mm	Surface Mount			4000 Hrs	3.65 A	Automotive	-55 C	135 °C	Radial Can - SMD	803 mA	63 V	Hybrid			0.406 in	0.425 in	10.8 mm	10.3 mm	13.2 mm	0.52 in	Anti-Vibration
KEMET A782MS427M1ELAS020	420 µF	20 %	20 mOhms	AEC-Q200	0.394 in	10 mm	Surface Mount	0.5 in	12.7 mm	4000 Hrs	4.45 A	Automotive	-55 C	135 °C	Radial Can - SMD	1.78 A	25 VDC	Hybrid	0.406 "	0.406 in	10.3 mm	10.3 mm
KEMET A782MS227M1VLAV020	220 µF	20 %	20 mOhms	AEC-Q200	0.394 in	10 mm	Surface Mount			4000 Hrs	4.45 A	Automotive	-55 C	135 °C	Radial Can - SMD	1.78 A	35 V	Hybrid			0.406 in	0.425 in	10.8 mm	10.3 mm	13.2 mm	0.52 in	Anti-Vibration
KEMET A782MS157M1HLAV028	150 µF	20 %	28 mOhm	AEC-Q200	0.394 in	10 mm	Surface Mount			4000 Hrs	3.8 A	Automotive	-55 C	135 °C	Radial Can - SMD	836 mA	50 VDC	Hybrid			0.406 in	0.425 in	10.8 mm	10.3 mm	13.2 mm	0.52 in	Anti-Vibration
