THS3115 Series

Catalog

DUAL, LOW-NOISE, HIGH OUTPUT CURRENT, 110-MHZ AMPLIFIER WITH SHUTDOWN

Part	Voltage - Supply Span (Min) [Min]	-3db Bandwidth	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case [y]	Package / Case	Mounting Type	Amplifier Type	Voltage - Input Offset	Slew Rate	Current - Output / Channel [custom]	Current - Input Bias	Number of Circuits	Current - Supply	Voltage - Supply Span (Max) [Max]	Supplier Device Package	Utilized IC / Part	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Supplied Contents	Current - Supply (Main IC)	Channels per IC	Output Type	Board Type
Texas Instruments THS3115ID	10 V	110 MHz	85 °C	-40 °C	0.154 in	3.9 mm	14-SOIC	Surface Mount	Current Feedback	3 mV	1550 V/µs	270 mA	330 nA	2	4.9 mA	30 V
Texas Instruments THS3115CPWP	10 V	110 MHz	70 °C	0 °C	0.173 in	4.4 mm	14-PowerTSSOP	Surface Mount	Current Feedback	3 mV	1550 V/µs	270 mA	330 nA	2	4.9 mA	30 V	14-HTSSOP
Texas Instruments THS3115CPWPR	10 V	110 MHz	70 °C	0 °C	0.173 in	4.4 mm	14-PowerTSSOP	Surface Mount	Current Feedback	3 mV	1550 V/µs	270 mA	330 nA	2	4.9 mA	30 V	14-HTSSOP
Texas Instruments THS3115IPWPR	10 V	110 MHz	85 °C	-40 °C	0.173 in	4.4 mm	14-PowerTSSOP	Surface Mount	Current Feedback	3 mV	1550 V/µs	270 mA	330 nA	2	4.9 mA	30 V	14-HTSSOP

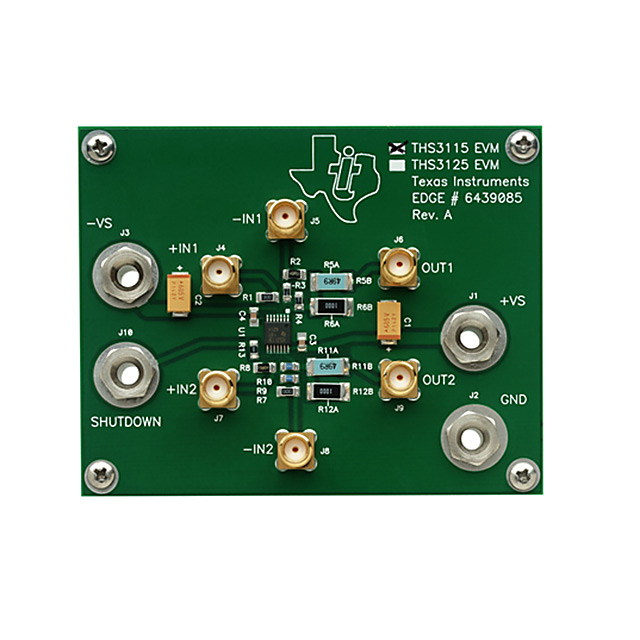

Texas Instruments THS3115EVM		110 MHz							Current Feedback		1550 V/µs	270 mA						THS3115	-5 V 10 V	15 V 30 V	Board(s)	4.9 mA	2 - Dual	Single-Ended	Fully Populated
Texas Instruments THS3115IPWPG4	10 V	110 MHz	85 °C	-40 °C	0.173 in	4.4 mm	14-PowerTSSOP	Surface Mount	Current Feedback	3 mV	1550 V/µs	270 mA	330 nA	2	4.9 mA	30 V	14-HTSSOP
Texas Instruments THS3115IPWP	10 V	110 MHz	85 °C	-40 °C	0.173 in	4.4 mm	14-PowerTSSOP	Surface Mount	Current Feedback	3 mV	1550 V/µs	270 mA	330 nA	2	4.9 mA	30 V	14-HTSSOP
Texas Instruments THS3115IPWPRG4	10 V	110 MHz	85 °C	-40 °C	0.173 in	4.4 mm	14-PowerTSSOP	Surface Mount	Current Feedback	3 mV	1550 V/µs	270 mA	330 nA	2	4.9 mA	30 V	14-HTSSOP
