68695 Series

Catalog

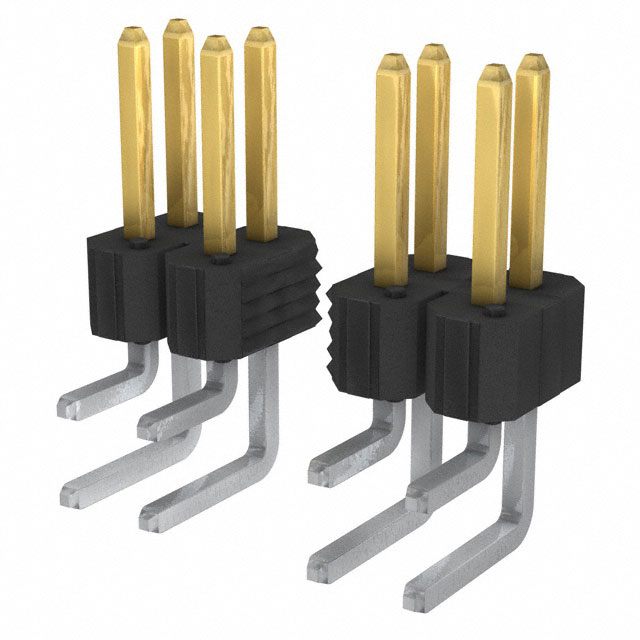

CONN HEADER R/A 52POS 2.54MM

Part	Insulation Height	Insulation Height	Contact Length - Mating [x]	Contact Length - Mating	Contact Shape	Number of Rows	Insulation Color	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Connector Type	Termination	Material Flammability Rating	Shrouding	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Material	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Contact Finish - Mating	Number of Positions	Contact Type	Mounting Type	Voltage Rating	Contact Finish - Post
Amphenol ICC (FCI) 68695-152HLF	4.83 mm	0.19 in	0.23 in	5.84 mm	Square	2	Black	Push-Pull	30 Áin	0.76 Ám	2.54 mm	0.1 in	Header	Solder	UL94 V-0	Unshrouded	5 A	0.1 in	2.54 mm	Phosphor Bronze	0.09 "	2.29 mm	All	Gold or Gold GXT™	52	Male Pin	Through Hole Right Angle	110 VDC
Amphenol ICC (FCI) 68695-428HLF	4.83 mm	0.19 in	0.23 in	5.84 mm	Square	2	Black	Push-Pull	100 çin	2.54 çm	2.54 mm	0.1 in	Header	Solder	UL94 V-0	Unshrouded	5 A	0.1 in	2.54 mm	Phosphor Bronze	0.09 "	2.29 mm	All		28	Male Pin	Through Hole Right Angle	110 VDC	Tin
Amphenol ICC (FCI) 68695-448HLF	4.83 mm	0.19 in	0.23 in	5.84 mm	Square	2	Black	Push-Pull	100 çin	2.54 çm	2.54 mm	0.1 in	Header	Solder	UL94 V-0	Unshrouded	5 A	0.1 in	2.54 mm	Phosphor Bronze	0.09 "	2.29 mm	All		48	Male Pin	Through Hole Right Angle	110 VDC	Tin
Amphenol ICC (FCI) 68695-128HLF	4.83 mm	0.19 in	0.23 in	5.84 mm	Square	2	Black	Push-Pull	30 Áin	0.76 Ám	2.54 mm	0.1 in	Header	Solder	UL94 V-0	Unshrouded	5 A	0.1 in	2.54 mm	Phosphor Bronze	0.09 "	2.29 mm	All	Gold or Gold GXT™	28	Male Pin	Through Hole Right Angle	110 VDC
Amphenol ICC (FCI) 68695-136HLF	4.83 mm	0.19 in	0.23 in	5.84 mm	Square	2	Black	Push-Pull	30 Áin	0.76 Ám	2.54 mm	0.1 in	Header	Solder	UL94 V-0	Unshrouded	5 A	0.1 in	2.54 mm	Phosphor Bronze	0.09 "	2.29 mm	All	Gold or Gold GXT™	36	Male Pin	Through Hole Right Angle	110 VDC
Amphenol ICC (FCI) 68695-454HLF	4.83 mm	0.19 in	0.23 in	5.84 mm	Square	2	Black	Push-Pull	100 çin	2.54 çm	2.54 mm	0.1 in	Header	Solder	UL94 V-0	Unshrouded	5 A	0.1 in	2.54 mm	Phosphor Bronze	0.09 "	2.29 mm	All		54	Male Pin	Through Hole Right Angle	110 VDC	Tin
Amphenol ICC (FCI) 68695-104HLF	4.83 mm	0.19 in	0.23 in	5.84 mm	Square	2	Black	Push-Pull	30 Áin	0.76 Ám	2.54 mm	0.1 in	Header	Solder	UL94 V-0	Unshrouded	5 A	0.1 in	2.54 mm	Phosphor Bronze	0.09 "	2.29 mm	All	Gold or Gold GXT™	4	Male Pin	Through Hole Right Angle	110 VDC
Amphenol ICC (FCI) 68695-154HLF	4.83 mm	0.19 in	0.23 in	5.84 mm	Square	2	Black	Push-Pull	30 Áin	0.76 Ám	2.54 mm	0.1 in	Header	Solder	UL94 V-0	Unshrouded	5 A	0.1 in	2.54 mm	Phosphor Bronze	0.09 "	2.29 mm	All	Gold or Gold GXT™	54	Male Pin	Through Hole Right Angle	110 VDC
Amphenol ICC (FCI) 68695-144HLF	4.83 mm	0.19 in	0.23 in	5.84 mm	Square	2	Black	Push-Pull	30 Áin	0.76 Ám	2.54 mm	0.1 in	Header	Solder	UL94 V-0	Unshrouded	5 A	0.1 in	2.54 mm	Phosphor Bronze	0.09 "	2.29 mm	All	Gold or Gold GXT™	44	Male Pin	Through Hole Right Angle	110 VDC
Amphenol ICC (FCI) 68695-440HLF	4.83 mm	0.19 in	0.23 in	5.84 mm	Square	2	Black	Push-Pull	100 çin	2.54 çm	2.54 mm	0.1 in	Header	Solder	UL94 V-0	Unshrouded	5 A	0.1 in	2.54 mm	Phosphor Bronze	0.09 "	2.29 mm	All		40	Male Pin	Through Hole Right Angle	110 VDC	Tin
