PJQ1820 Series

Catalog

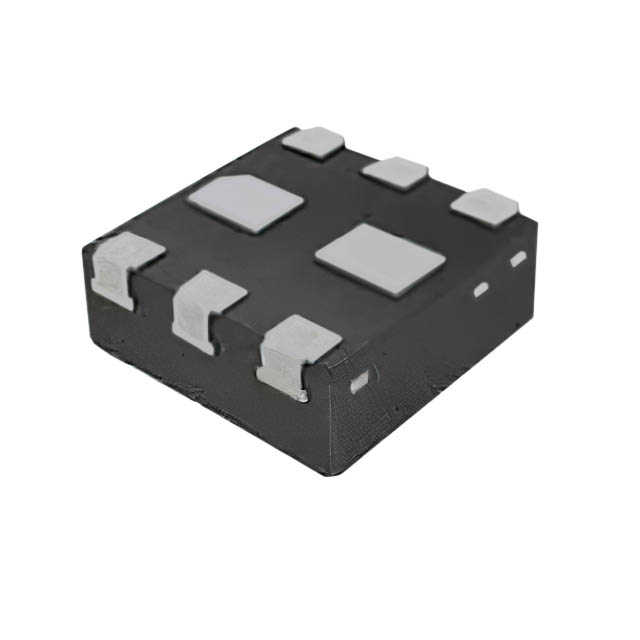

MOSFET 2N-CH 20V 0.8A 6DFN

Part	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Configuration	Supplier Device Package	Package / Case	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs [Max]
Panjit International Inc. PJQ1820_R1_00001	800 mA	300 mOhm	20 V	46 pF	Surface Mount	2 N-Channel (Dual)	DFN1010-6L	6-UFDFN	1 V	150 °C	-55 °C	1.1 nC
