09162723 Series
Manufacturer: HARTING
Beta
⌘K
HEAVY DUTY CONNECTOR, 72+PE, LESS CONTACTS, HAN DD HMC SERIES, INSERT, 73 CONTACTS, 16B, PLUG
| Part | Material Flammability Rating | Housing Material | Size | Contact Type | Gender | Connector Type | Voltage Rating | Termination Style | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|

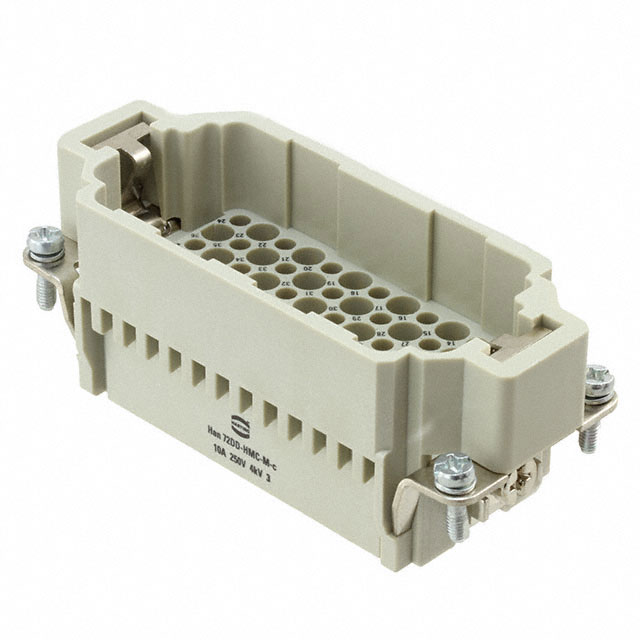

 HARTING | UL94 V-0 | Polycarbonate (PC) | 16 B | Han® High Temp | Male | Insert without Contacts | 250 V | Crimp | 10 A | 125 °C | -40 C |

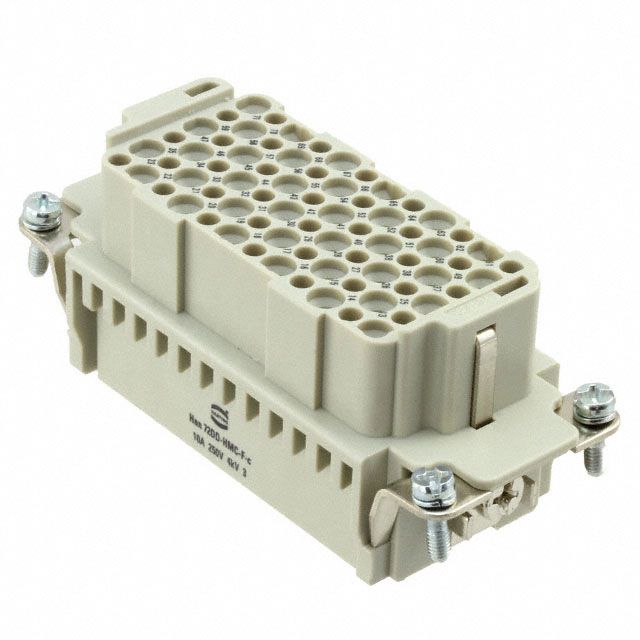

 HARTING | UL94 V-0 | Polycarbonate (PC) | 16 B | Han® High Temp | Female | Insert without Contacts | 250 V | Crimp | 10 A | 125 °C | -40 C |
