2439 Series

Catalog

BINDING POST, 2439 SERIES, 5 A, 1.5 KV, TIN PLATED CONTACTS, PANEL MOUNT, GREEN

Part	Nut Material	Head Size [custom]	Head Size [custom]	Head Size [diameter]	Head Size [diameter]	Material - Insulation	Nut Plating	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Voltage Rating	Termination Thread	Type	Termination	Current Rating (Amps)	Material - Body	Color	Plating - Body
Pomona Electronics 2439-5	Brass	0.086 in	2.18 mm	9.65 mm	0.38 in	Polycarbonate (PC)	Nickel	0.07 "	0.17 in	1.78 mm	4.32 mm	1500 VAC	8-32	Miniature	Threaded and Turret	5 A	Brass	Green	Tin
Pomona Electronics 2439-1	Brass	0.086 in	2.18 mm	9.65 mm	0.38 in	Polycarbonate (PC)	Nickel	0.07 "	0.17 in	1.78 mm	4.32 mm	1500 VAC	8-32	Miniature	Threaded and Turret	5 A	Brass	Brown	Tin
Pomona Electronics 2439-5#	Brass	0.086 in	2.18 mm	9.65 mm	0.38 in	Polycarbonate (PC)	Nickel	0.07 "	0.17 in	1.78 mm	4.32 mm	1500 VAC	8-32	Miniature	Threaded and Turret	5 A	Brass	Green	Tin
Pomona Electronics 2439-0#	Brass	0.086 in	2.18 mm	9.65 mm	0.38 in	Polycarbonate (PC)	Nickel	0.07 "	0.17 in	1.78 mm	4.32 mm	1500 VAC	8-32	Miniature	Threaded and Turret	5 A	Brass	Black	Tin

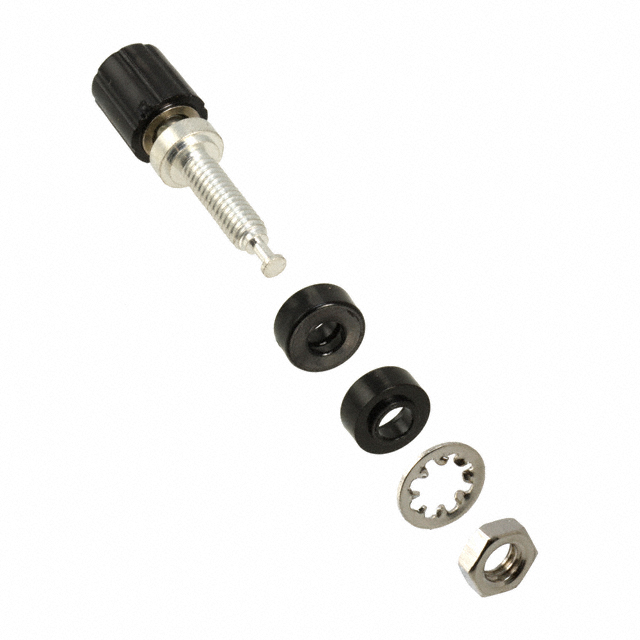

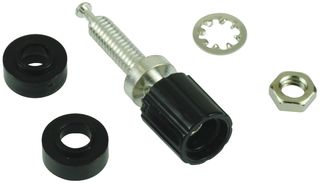

Pomona Electronics 2439-0	Brass	0.086 in	2.18 mm	9.65 mm	0.38 in	Polycarbonate (PC)	Nickel	0.07 "	0.17 in	1.78 mm	4.32 mm	1500 VAC	8-32	Miniature	Threaded and Turret	5 A	Brass	Black	Tin
Pomona Electronics 2439-2	Brass	0.086 in	2.18 mm	9.65 mm	0.38 in	Polycarbonate (PC)	Nickel	0.07 "	0.17 in	1.78 mm	4.32 mm	1500 VAC	8-32	Miniature	Threaded and Turret	5 A	Brass	Red	Tin
Pomona Electronics 2439-6	Brass	0.086 in	2.18 mm	9.65 mm	0.38 in	Polycarbonate (PC)	Nickel	0.07 "	0.17 in	1.78 mm	4.32 mm	1500 VAC	8-32	Miniature	Threaded and Turret	5 A	Brass	Blue	Tin
