TP-POE Series
Manufacturer: Tycon Systems Inc.
Beta
⌘K

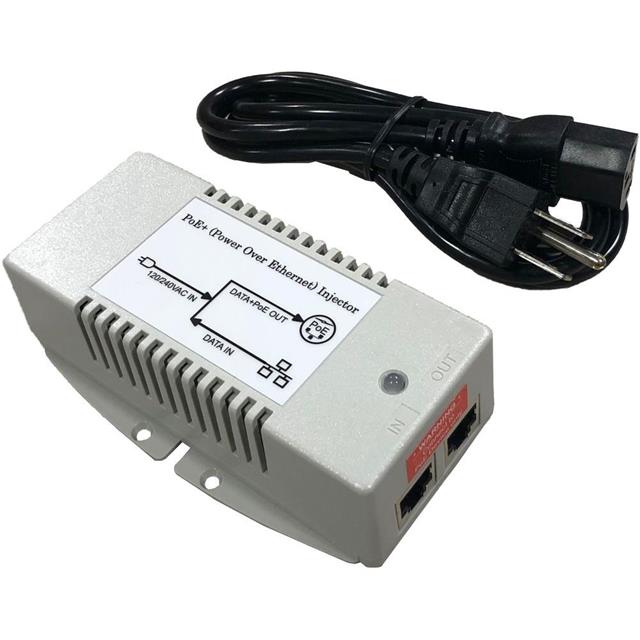

48V 50W HIGH POWER GIGABIT PASSI
| Part | Input Connector | Output Connector | Type | Approval Agency | Mounting Type | Features | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Output | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) - Per Port | Data Rate | Number of Ports | Efficiency | Compliance | Current - Output | Voltage - Output | Data Rate [Min] | Data Rate [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Standard Number | Size / Dimension [y] | Size / Dimension [z] | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Tycon Systems Inc. | RJ45 (Data Power) | RJ45 (Data Power) | Passive Injector | FCC TUV | Desktop | OCP OVP SCP | 4.9 in | 124.5 mm | 38.1 mm | 3 in | 76.2 mm | 1.5 in | 48 V | 264 VAC | 90 VAC | 80 °C | -40 C | 50 W | 10 Mbps 100 Mbps 1000 Mbps | 1 | 85 % | ||||||||||||
Tycon Systems Inc. | RJ45 (Data Power) | RJ45 (Data Power) | Passive Injector | FCC TUV | Desktop | OCP OVP SCP | 4.9 in | 124.5 mm | 38.1 mm | 3 in | 76.2 mm | 1.5 in | 24 V | 264 VAC | 90 VAC | 60 °C | -30 ░C | 48 W | 10 Mbps 100 Mbps 1000 Mbps | 1 | 85 % | IEEE802.3af IEEE802.3at | 2 A | ||||||||||
 Tycon Systems Inc. | IEC 320-C13 (Power) RJ45 (Data) | RJ45 (Data Power) | Passive Injector | Desktop | OCP OVP SCP | 4.9 in | 124.5 mm | 38.1 mm | 3 in | 76.2 mm | 1.5 in | 56 V | 264 VAC | 90 VAC | 50 °C | -25 °C | 50 W | 1 | 80 % | IEEE802.3af IEEE802.3at | 450 mA | 56 V | 10 Mbps | 100 Mbps | |||||||||
 Tycon Systems Inc. | RJ45 (Data Power) | RJ45 (Data Power) | Passive Injector | FCC TUV | Desktop | OCP OVP SCP | 86.4 mm | 35.6 mm | 76.2 mm | 48 V | 264 VAC | 90 VAC | 60 °C | -30 ░C | 15.8 W | 10 Mbps 100 Mbps 1000 Mbps | 1 | 85 % | IEEE802.3af IEEE802.3at | 330 mA | 3 " | 1.4 " | 3.4 in | ||||||||||
 Tycon Systems Inc. | RJ45 (Data Power) | RJ45 (Data Power) | Passive Injector | Desktop | OCP OVP SCP | 86.4 mm | 35.6 mm | 76.2 mm | 56 V | 36 V | 22 VDC | 60 °C | -30 ░C | 35 W | 10 Mbps 100 Mbps 1000 Mbps | 1 | IEEE802.3af IEEE802.3at | 3 " | 1.4 " | 3.4 in | |||||||||||||
 Tycon Systems Inc. | IEC 320-C8 RJ45 | RJ45 (Data Power) | Passive Injector | FCC TUV | Desktop | OCP OVP SCP | 4.9 in | 124.5 mm 125 mm | 38.1 mm | 3 in | 76.2 mm | 1.5 in | 48 V 56 V | 264 VAC | 90 VAC | 60 °C | -30 ░C | 50 W | 10 Mbps 100 Mbps 1000 Mbps | 1 | 85 % | IEEE802.3af IEEE802.3at | 900 mA | 2.95 " | 1.5 in | 4.92 in | 60950-1 | 75 mm | 38 mm | ||||
Tycon Systems Inc. | RJ45 (Data Power) | RJ45 (Data Power) | Passive Injector | FCC TUV | Desktop | OCP OVP SCP | 4.9 in | 124.5 mm | 38.1 mm | 3 in | 76.2 mm | 1.5 in | 24 V | 264 VAC | 90 VAC | 60 °C | -30 ░C | 36 W | 10 Mbps 100 Mbps 1000 Mbps | 1 | 85 % | IEEE802.3af IEEE802.3at | 1.5 A | 60950-1 | AC Power Cord Sold Separately | ||||||||
 Tycon Systems Inc. | RJ45 (Data Power) | RJ45 (Data Power) | Passive Injector | CSA FCC TUV UL | Desktop | OCP OVP SCP | 86.4 mm | 35.6 mm | 76.2 mm | 18 V 24 V | 60 V | 36 V | 60 °C | -30 ░C | 24 W | 10 Mbps 100 Mbps 1000 Mbps | 1 | IEEE802.3af IEEE802.3at | 1 A | 3 " | 1.4 " | 3.4 in | 60950-1 | ||||||||||
 Tycon Systems Inc. | RJ45 (Data Power) | RJ45 (Data Power) | Midspan Injector | CE FCC UL | Desktop | OCP SCP | 139.7 mm | 35.6 mm | 63.5 mm | 53 V | 240 VAC | 100 VAC | 50 °C | -20 ░C | 31.8 W | 10 Mbps 100 Mbps 1000 Mbps | 1 | 78 % | IEEE802.3af IEEE802.3at | 600 mA | 2.5 " | 1.4 " | 5.5 " | ||||||||||
 Tycon Systems Inc. | RJ45 (Data Power) | RJ45 (Data Power) | Passive Injector | FCC TUV | Desktop | OCP OVP SCP | 86.4 mm | 35.6 mm | 76.2 mm | 48 V | 264 VAC | 90 VAC | 60 °C | -30 ░C | 16.8 W | 10 Mbps 100 Mbps 1000 Mbps | 1 | 85 % | IEEE802.3af IEEE802.3at | 350 mA | 3 " | 1.4 " | 3.4 in | 60950-1 |
