V7NL63 Series

Catalog

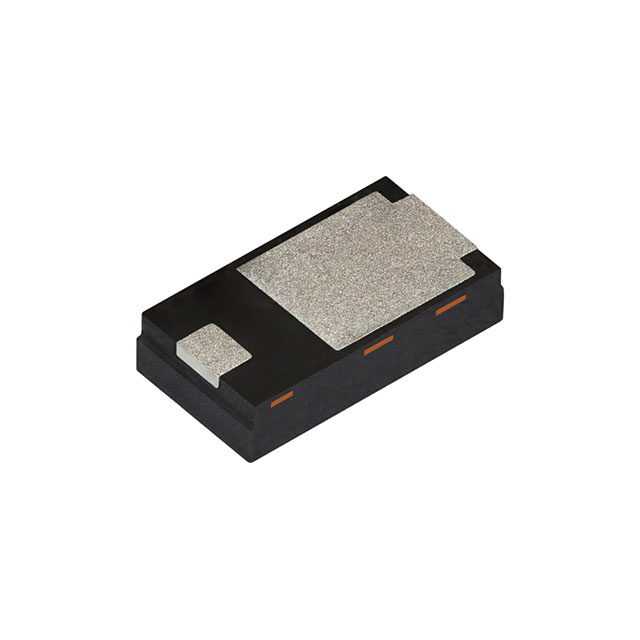

7A, 60V, DFN3820A TRENCH SKY REC

Part	Package / Case	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Grade	Supplier Device Package	Qualification	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Capacitance @ Vr, F	Speed
Vishay General Semiconductor - Diodes Division V7NL63HM3/I	2-VDFN	2.6 A	580 mV	Automotive	DFN3820A	AEC-Q101	Surface Mount Wettable Flank	150 °C	-40 °C	60 V	Schottky	1150 pF	200 mA 500 ns
Vishay General Semiconductor - Diodes Division V7NL63-M3/I	2-VDFN	2.6 A	580 mV	Automotive	DFN3820A	AEC-Q101	Surface Mount Wettable Flank	150 °C	-40 °C	60 V	Schottky	1150 pF	200 mA 500 ns
