AEA87 Series

Catalog

CONN RCPT HSG MALE 17POS PNL MT

Part	Connector Type	Mounting Type	Ingress Protection	Shielding	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Type	Material Flammability Rating	Shell Finish	Note	Orientation	Fastening Type	Housing Color	Includes	Contact Shape	Shell Size - Insert	Insert Material

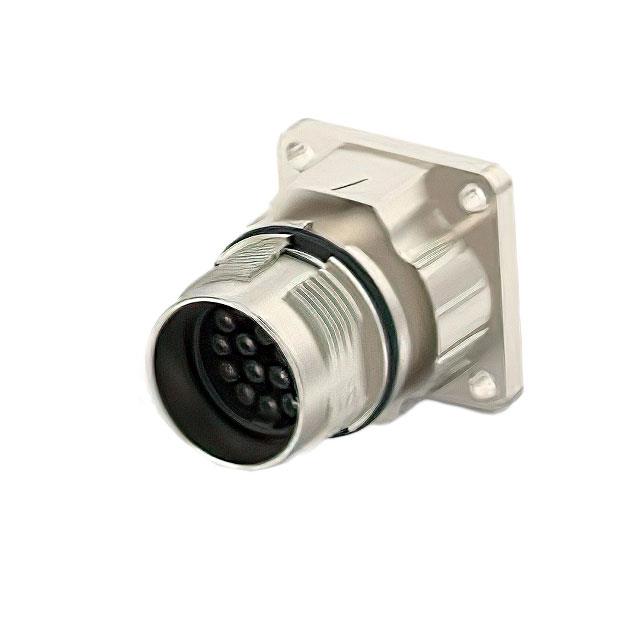

TE Intercontec AEA874N0000151A000	Receptacle Housing	Panel Mount	IP66 IP67	Unshielded	Bulkhead - Front Side Nut	-20 ░C	130 °C	Zinc Die Cast	For Male Pins	UL94 V-0	Nickel	Contacts Not Included	Keyed	Push-Twist	Silver	1 Connector 1 Nut 1 O-Ring	Circular	M17-17	Polybutylene Terephthalate (PBT)
TE Intercontec AEA874N0000150A000	Receptacle Housing	Panel Mount	IP66 IP67	Unshielded	Flange	-20 ░C	130 °C	Zinc Die Cast	For Male Pins	UL94 V-0	Nickel	Contacts Not Included	Keyed	Push-Twist	Silver	1 Connector 1 O-Ring	Circular	M17-17	Polybutylene Terephthalate (PBT)
TE Intercontec AEA874N0000050A000	Receptacle Housing	Panel Mount	IP66 IP67	Unshielded	Flange	-20 ░C	130 °C	Zinc Die Cast	For Male Pins	UL94 V-0	Nickel	Contacts Not Included	Keyed	Push-Twist	Silver	1 Connector 1 O-Ring	Circular	M17-17	Polybutylene Terephthalate (PBT)
