3105-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

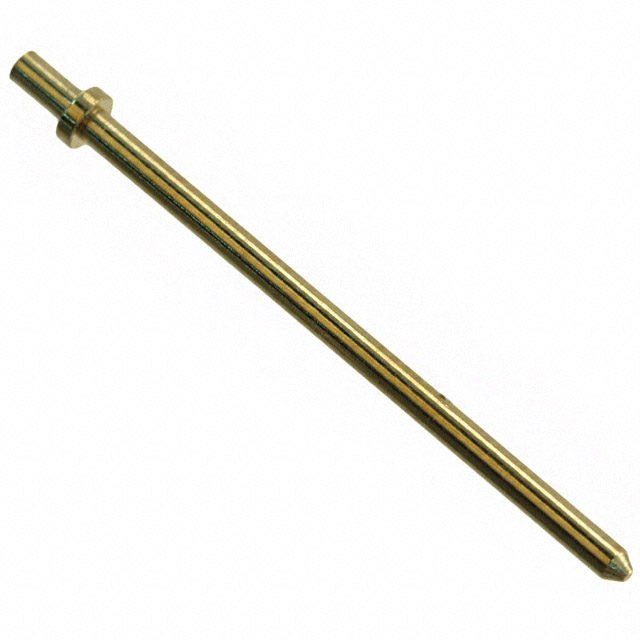

CONN PC PIN CIRC
| Part | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Contact Finish | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Contact Material | Insulation | Board Thickness | Board Thickness | Termination | Length - Overall [x] | Length - Overall [x] | Length - Above Flange [x] | Length - Above Flange [x] | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 2.08 mm | 0.082 " | Through Hole | Tin | 0.043 in | 1.09 mm | 200 Áin | 5.08 Ám | Single End | Brass Alloy | Non-Insulated | 1.57 mm | 0.062 " | Swage | 0.852 in | 21.64 mm | 0.75 in | 19.05 mm | PC Pin | 0.04 in | 1.02 mm | 1.78 mm | 0.07 in |
Mill-Max Manufacturing Corp. | 2.08 mm | 0.082 " | Through Hole | Tin-Lead | 0.043 in | 1.09 mm | 200 Áin | 5.08 Ám | Single End | Brass Alloy | Non-Insulated | 1.57 mm | 0.062 " | Swage | 0.852 in | 21.64 mm | 0.75 in | 19.05 mm | PC Pin | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in |
 Mill-Max Manufacturing Corp. | 2.08 mm | 0.082 " | Through Hole | Gold | 0.043 in | 1.09 mm | 10 Áin | 0.25 Ám | Single End | Brass Alloy | Non-Insulated | 1.57 mm | 0.062 " | Swage | 0.852 in | 21.64 mm | 0.75 in | 19.05 mm | PC Pin | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in |
Mill-Max Manufacturing Corp. | 2.08 mm | 0.082 " | Through Hole | Gold | 0.043 in | 1.09 mm | 50 µin | 1.27 µm | Single End | Brass Alloy | Non-Insulated | 1.57 mm | 0.062 " | Swage | 0.852 in | 21.64 mm | 0.75 in | 19.05 mm | PC Pin | 0.04 in | 1.02 mm | 1.77 mm | 0.07 in |
