QT40 Series
Manufacturer: PULS, LP
Beta
⌘K

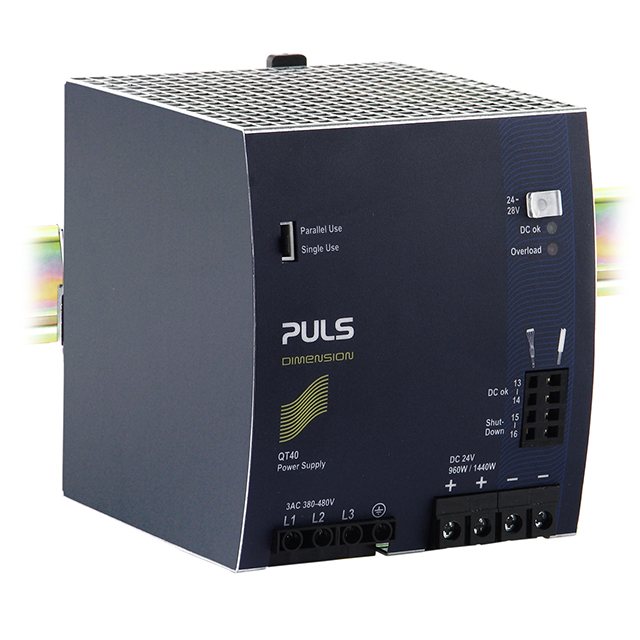

AC/DC DIN RAIL SUPPLY 24V 960W
| Part | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Applications | Number of Outputs | Features | Voltage - Isolation | Input Type | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Standard Number | Current - Output (Max) [Max] | Approval Agency | Power (Watts) | Voltage - Output 1 | Efficiency | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PULS, LP | 110 mm | 4.88 in | 4.33 " | 124 mm | 5 " | 127 mm | ITE (Commercial) | 1 | Adjustable Output Load Sharing PFC | 500 V | AC | 576 VAC | 323 VAC | 70 °C | -10 °C | 508 60950-1 61010-2-201 | 40 A | EAC IEC UL | 960 W | 24 V | 95.2 % | |
PULS, LP | 110 mm | 4.88 in | 4.33 " | 124 mm | 5 " | 127 mm | ITE (Commercial) | 1 | Adjustable Output Load Sharing PFC | 500 V | AC | 576 VAC | 323 VAC | 70 °C | -10 °C | 508 60950-1 61010-2-201 F47 | 40 A | ABS DNV GL EAC IEC SEMI UL | 960 W | 24 V | 95.3 % | |
PULS, LP | 110 mm | 4.88 in | 4.33 " | 124 mm | 5 " | 127 mm | ITE (Commercial) | 1 | Adjustable Output Load Sharing PFC | 500 V | AC | 576 VAC | 323 VAC | 70 °C | -10 °C | 508 60950-1 61010-2-201 | 26.7 A | EAC IEC UL | 960 W | 95.3 % | 36 V | |
PULS, LP | 110 mm | 4.88 in | 4.33 " | 124 mm | 5 " | 127 mm | ITE (Commercial) | 1 | Adjustable Output Load Sharing PFC | 500 V | AC | 576 VAC | 323 VAC | 70 °C | -25 °C | 508 60950-1 61010-2-201 | 20 A | ABS DNV GL EAC IEC UL | 960 W | 48 V | 95.4 % |
