HP0215A Series
Manufacturer: NKK Switches
Beta
⌘K

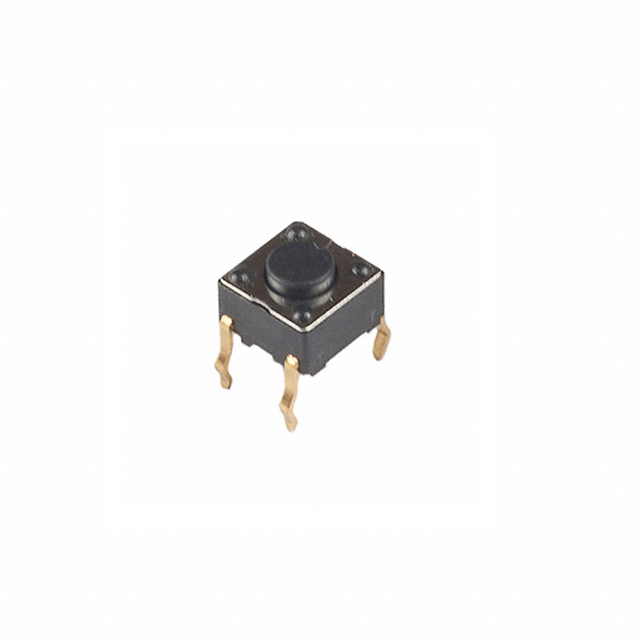

TACTILE SWITCH, HP02 SERIES, TOP ACTUATED, THROUGH HOLE, ROUND BUTTON, 160 GF, 100MA AT 28VDC
| Part | Switch Travel | Actuator Material | Mechanical Life | Illumination | Actuator Type | Outline [x] | Outline [y] | Features | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Mounting Type | Actuator Height off PCB, Vertical [z] | Actuator Orientation | Operating Force | Contact Rating @ Voltage | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 0.2 mm | Glass Filled Nylon Polyamide (PA) | 500000 Cycles | Non-Illuminated | Standard | 6.2 mm | 6.2 mm | Sealed - Flux Protection | SPST-NO | -20 ░C | 70 °C | Off-Mom | Through Hole | 4.3 mm | Top Actuated | 160 gf | 0.4 VA | PC Pin |
 NKK Switches | 0.2 mm | Glass Filled Nylon Polyamide (PA) | 500000 Cycles | Non-Illuminated | Standard | 6.2 mm | 6.2 mm | Sealed - Flux Protection | SPST-NO | -20 ░C | 70 °C | Off-Mom | Through Hole | 4.3 mm | Top Actuated | 160 gf | 0.4 VA | PC Pin |
 NKK Switches | 0.2 mm | Glass Filled Nylon Polyamide (PA) | 500000 Cycles | Non-Illuminated | Standard | 6.2 mm | 6.2 mm | Sealed - Flux Protection | SPST-NO | -20 ░C | 70 °C | Off-Mom | Through Hole | 4.3 mm | Top Actuated | 160 gf | 3 VA | PC Pin |
