SGA40U12 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

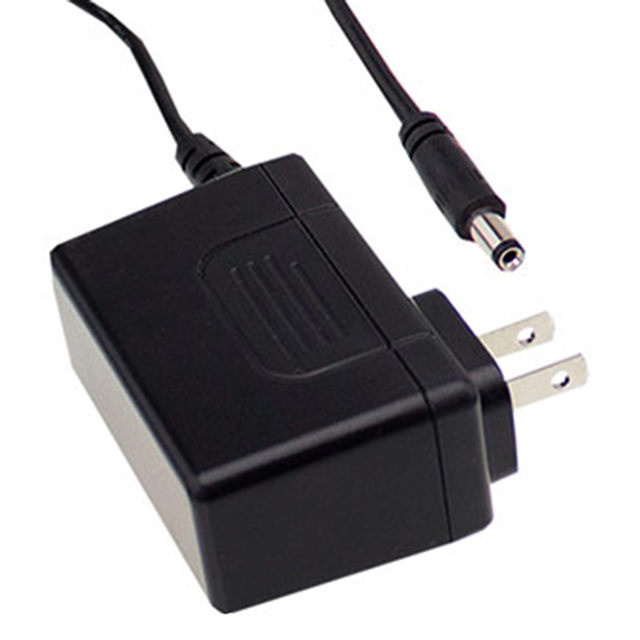

AC/DC WALL MOUNT ADAPTER 12V 40W
| Part | Voltage - Output | Applications | Cord Length | Cord Length | Form | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Region Utilized | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Output Connector [x] | Output Connector [diameter] | Output Connector | Power (Watts) | Input Type | Input Connector | Approval Agency | Polarization | No Load Power Consumption | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 12 V | ITE (Commercial) | 1 m | 39.4 in | Wall Mount | Level VI | 264 VAC | 90 VAC | North America | 1.26 in | 47.5 mm | 2.97 in | 32 mm | 1.87 in | 75.5 mm | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 40 W | Fixed Blade | NEMA 1-15P | CB cULus | Positive Center | 75 mW | 3.33 A | -20 ░C | 50 °C |
