M52-500 Series
Manufacturer: Harwin Inc.
Beta
⌘K

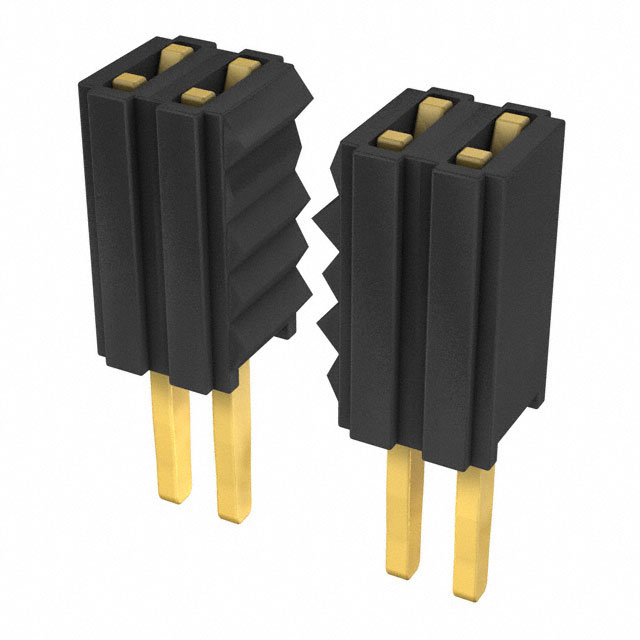

CONN RCPT 9POS 0.05 GOLD PCB
| Part | Insulation Material | Contact Shape | Applications | Contact Material | Insulation Height [z] | Insulation Height [z] | Number of Rows | Contact Length - Post | Contact Length - Post | Contact Type | Number of Positions | Pitch - Mating | Pitch - Mating | Mated Stacking Heights | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Mounting Type | Material Flammability Rating | Number of Positions Loaded | Contact Finish - Mating | Termination | Contact Finish - Post | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Nylon 6T Polyamide (PA6T) | Rectangular | General Purpose Medical Telecommunications | Phosphor Bronze | 0.181 in | 4.6 mm | 1 | 0.118 in | 3 mm | Forked | 9 | 1.27 mm | 0.05 in | 7.1 mm 8.37 mm | Push-Pull | -40 C | 105 ░C | Receptacle | Through Hole | UL94 V-0 | All | Gold | Solder | Gold | Black |
Harwin Inc. | Nylon 6T Polyamide (PA6T) | Rectangular | General Purpose Medical Telecommunications | Phosphor Bronze | 0.181 in | 4.6 mm | 1 | 0.118 in | 3 mm | Forked | 8 | 1.27 mm | 0.05 in | 7.1 mm 8.37 mm | Push-Pull | -40 C | 105 ░C | Receptacle | Through Hole | UL94 V-0 | All | Gold | Solder | Gold | Black |
Harwin Inc. | Nylon 6T Polyamide (PA6T) | Rectangular | General Purpose Medical Telecommunications | Phosphor Bronze | 0.181 in | 4.6 mm | 1 | 0.118 in | 3 mm | Forked | 7 | 1.27 mm | 0.05 in | 7.1 mm 8.37 mm | Push-Pull | -40 C | 105 ░C | Receptacle | Through Hole | UL94 V-0 | All | Gold | Solder | Gold | Black |
 Harwin Inc. | Nylon 6T Polyamide (PA6T) | Rectangular | General Purpose Medical Telecommunications | Phosphor Bronze | 0.181 in | 4.6 mm | 1 | 0.118 in | 3 mm | Forked | 25 | 1.27 mm | 0.05 in | 7.1 mm 8.37 mm | Push-Pull | -40 C | 105 ░C | Receptacle | Through Hole | UL94 V-0 | All | Gold | Solder | Gold | Black |

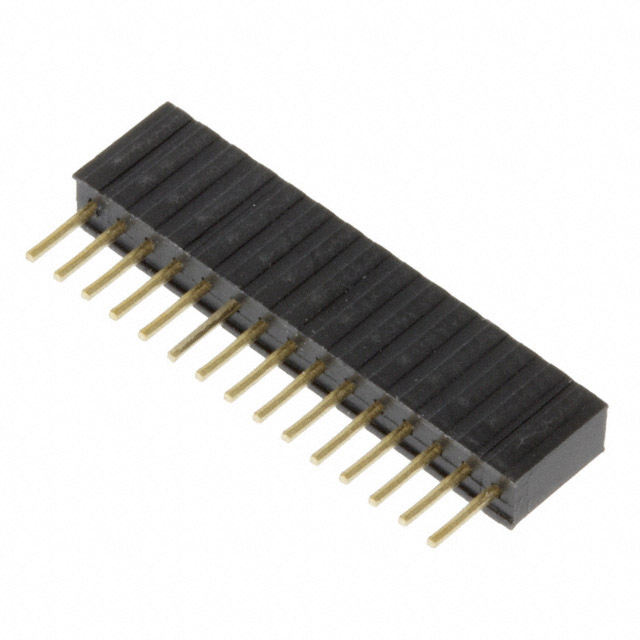

 Harwin Inc. | Nylon 6T Polyamide (PA6T) | Rectangular | General Purpose Medical Telecommunications | Phosphor Bronze | 0.181 in | 4.6 mm | 1 | 0.118 in | 3 mm | Forked | 15 | 1.27 mm | 0.05 in | 7.1 mm 8.37 mm | Push-Pull | -40 C | 105 ░C | Receptacle | Through Hole | UL94 V-0 | All | Gold | Solder | Gold | Black |
Harwin Inc. | Nylon 6T Polyamide (PA6T) | Rectangular | General Purpose Medical Telecommunications | Phosphor Bronze | 0.181 in | 4.6 mm | 1 | 0.118 in | 3 mm | Forked | 16 | 1.27 mm | 0.05 in | 7.1 mm 8.37 mm | Push-Pull | -40 C | 105 ░C | Receptacle | Through Hole | UL94 V-0 | All | Gold | Solder | Gold | Black |
Harwin Inc. | Nylon 6T Polyamide (PA6T) | Rectangular | General Purpose Medical Telecommunications | Phosphor Bronze | 0.181 in | 4.6 mm | 1 | 0.118 in | 3 mm | Forked | 20 | 1.27 mm | 0.05 in | 7.1 mm 8.37 mm | Push-Pull | -40 C | 105 ░C | Receptacle | Through Hole | UL94 V-0 | All | Gold | Solder | Gold | Black |

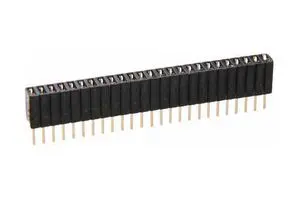

 Harwin Inc. | Nylon 6T Polyamide (PA6T) | Rectangular | General Purpose Medical Telecommunications | Phosphor Bronze | 0.181 in | 4.6 mm | 1 | 0.118 in | 3 mm | Forked | 40 | 1.27 mm | 0.05 in | 7.1 mm 8.37 mm | Push-Pull | -40 C | 105 ░C | Receptacle | Through Hole | UL94 V-0 | All | Gold | Solder | Gold | Black |
 Harwin Inc. | Nylon 6T Polyamide (PA6T) | Rectangular | General Purpose Medical Telecommunications | Phosphor Bronze | 0.181 in | 4.6 mm | 1 | 0.118 in | 3 mm | Forked | 4 | 1.27 mm | 0.05 in | 7.1 mm 8.37 mm | Push-Pull | -40 C | 105 ░C | Receptacle | Through Hole | UL94 V-0 | All | Gold | Solder | Gold | Black |
