111-93 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN IC DIP SOCKET 28POS GOLD

Part	Termination Post Length	Termination Post Length	Current Rating (Amps)	Contact Material - Post	Number of Positions or Pins (Grid)	Pitch - Mating	Pitch - Mating	Housing Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Type	Type	Type	Contact Finish - Post	Features	Contact Material - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Mounting Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid) [y]	Type [custom]	Type [custom]
Mill-Max Manufacturing Corp. 111-93-328-41-001000	0.125 in	3.18 mm	3 A	Brass Alloy	28	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	0.1 in	2.54 mm	200 µin	5.08 µm	7.62 mm	0.3 in	DIP	Tin-Lead	Open Frame	Beryllium Copper	0.76 Ám	30 Áin	Solder	Through Hole
Mill-Max Manufacturing Corp. 111-93-316-61-001000	0.125 in	3.18 mm	3 A	Brass Alloy	16	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	0.1 in	2.54 mm	200 µin	5.08 µm	7.62 mm	0.3 in	DIP	Tin-Lead	Open Frame	Beryllium Copper	0.76 Ám	30 Áin	Solder	Through Hole	2	8

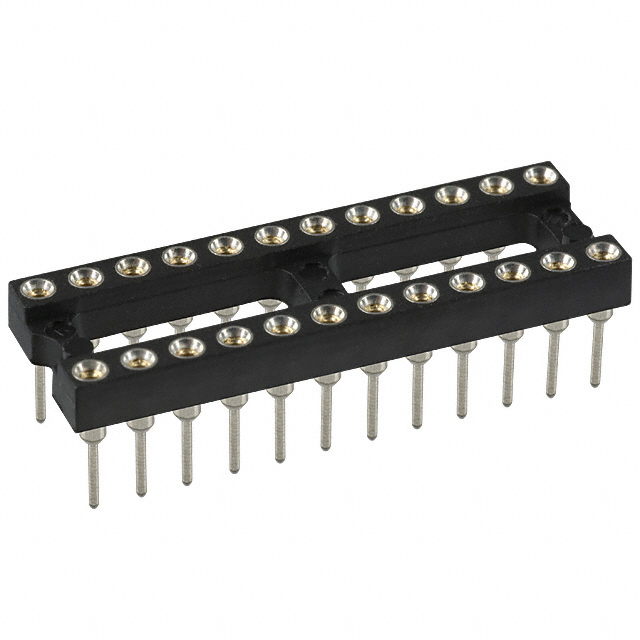

Mill-Max Manufacturing Corp. 111-93-324-41-001000	0.125 in	3.18 mm	3 A	Brass Alloy	24	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	0.1 in	2.54 mm	200 µin	5.08 µm	7.62 mm	0.3 in	DIP	Tin-Lead	Open Frame	Beryllium Copper	0.76 Ám	30 Áin	Solder	Through Hole			12	2
Mill-Max Manufacturing Corp. 111-93-652-61-001000	0.125 in	3.18 mm	3 A	Brass Alloy		0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	0.1 in	2.54 mm	200 µin	5.08 µm			DIP	Tin-Lead	Open Frame	Beryllium Copper	0.76 Ám	30 Áin	Solder	Through Hole					15.24 mm	0.6 in

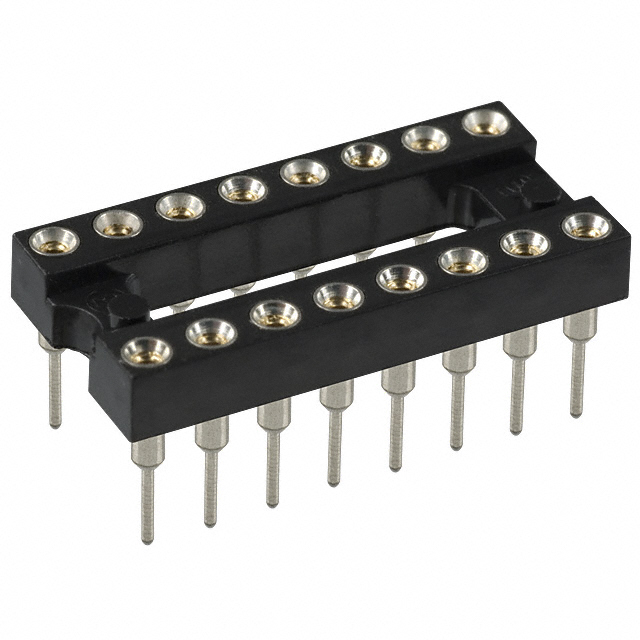

Mill-Max Manufacturing Corp. 111-93-316-41-001000	0.125 in	3.18 mm	3 A	Brass Alloy	16	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	0.1 in	2.54 mm	200 µin	5.08 µm	7.62 mm	0.3 in	DIP	Tin-Lead	Open Frame	Beryllium Copper	0.76 Ám	30 Áin	Solder	Through Hole	2	8

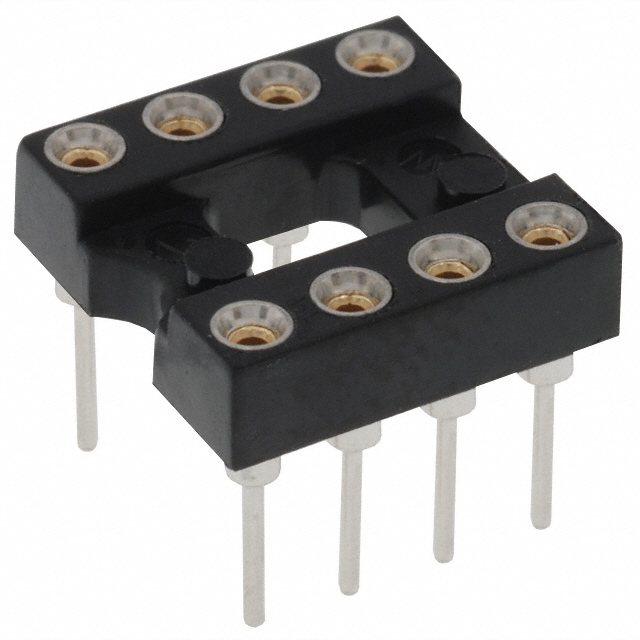

Mill-Max Manufacturing Corp. 111-93-308-41-001000	0.125 in	3.18 mm	3 A	Brass Alloy	8	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	0.1 in	2.54 mm	200 µin	5.08 µm	7.62 mm	0.3 in	DIP	Tin-Lead	Open Frame	Beryllium Copper	0.76 Ám	30 Áin	Solder	Through Hole			2	4
Mill-Max Manufacturing Corp. 111-93-424-41-001000	0.125 in	3.18 mm	3 A	Brass Alloy	24	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	0.1 in	2.54 mm	200 µin	5.08 µm		0.4 in	DIP	Tin-Lead	Open Frame	Beryllium Copper	0.76 Ám	30 Áin	Solder	Through Hole			12	2
Mill-Max Manufacturing Corp. 111-93-642-61-001000	0.125 in	3.18 mm	3 A	Brass Alloy	42	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	0.1 in	2.54 mm	200 µin	5.08 µm			DIP	Tin-Lead	Open Frame	Beryllium Copper	0.76 Ám	30 Áin	Solder	Through Hole					15.24 mm	0.6 in

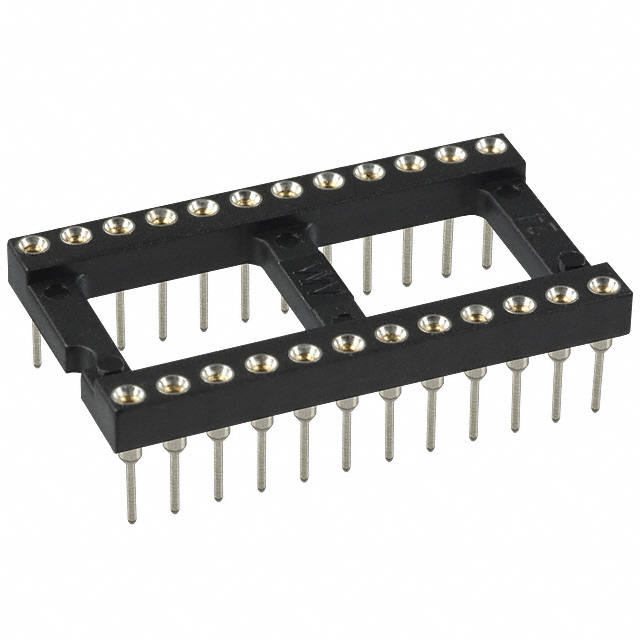

Mill-Max Manufacturing Corp. 111-93-624-41-001000	0.125 in	3.18 mm	3 A	Brass Alloy	24	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	0.1 in	2.54 mm	200 µin	5.08 µm			DIP	Tin-Lead	Open Frame	Beryllium Copper	0.76 Ám	30 Áin	Solder	Through Hole			12	2	15.24 mm	0.6 in
Mill-Max Manufacturing Corp. 111-93-306-61-001000	0.125 in	3.18 mm	3 A	Brass Alloy	6	0.1 "	2.54 mm	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Gold	-55 C	125 °C	0.1 in	2.54 mm	200 µin	5.08 µm	7.62 mm	0.3 in	DIP	Tin-Lead	Open Frame	Beryllium Copper	0.76 Ám	30 Áin	Solder	Through Hole			2	3 positions or pins
