794073 Series

Catalog

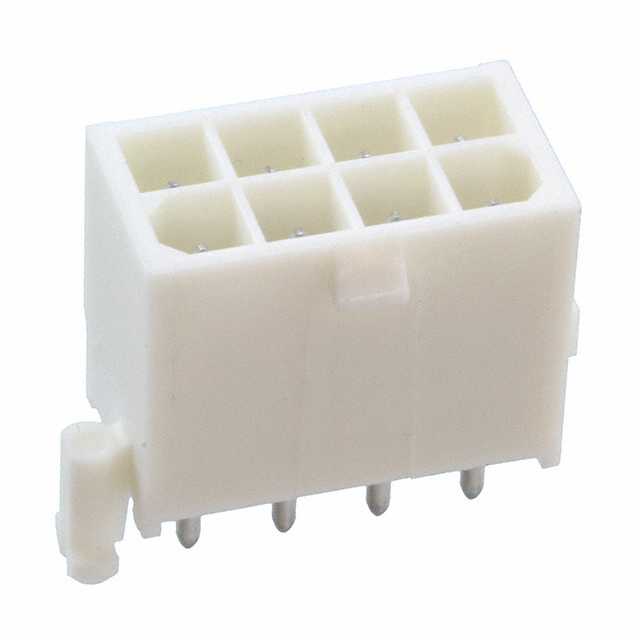

CONN HEADER VERT 8POS 4.14MM

Part	Contact Finish Thickness - Post	Applications	Contact Length - Post	Contact Length - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Insulation Color	Contact Finish - Mating	Number of Positions Loaded	Mounting Type	Material Flammability Rating	Contact Type	Insulation Height	Insulation Height	Fastening Type	Number of Positions	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Shrouding	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Termination	Style	Contact Finish - Post	Features	Contact Shape	Number of Rows [custom]	Insulation Material
TE Connectivity AMP Connectors 794073-1	3.81 Ám	General Purpose	4.45 mm	0.175 in	4.14 mm	0.163 in	Varies by Wire Gauge	White	Tin-Lead	All	Through Hole	UL94 V-0	Male Pin	13.5 mm	0.531 in	Locking Ramp	8	0.163 in	4.14 mm	85 °C	-20 ░C	Brass	Shrouded - 4 Wall	600 VAC	150 Áin	3.81 Ám	Header	Solder	Board to Cable/Wire	Tin-Lead	Board Lock	Circular	2	Nylon Polyamide (PA)
