RW2622H Series
Manufacturer: CIT Relay and Switch
Beta
⌘K

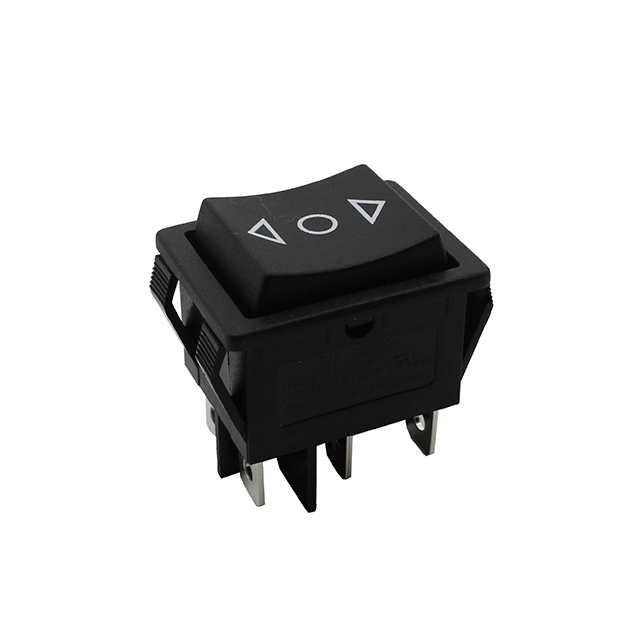

SWITCH ROCKER DPDT 20A 120V
| Part | Electrical Life | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Mounting Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Color - Actuator/Cap | Circuit | Approval Agency | Actuator Type | Ingress Protection | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 10000 Cycles | Triangular Arrows with O | 22.25 mm | 30.2 mm | Panel Mount Snap-In | 120 V | 80 °C | -30 ░C | On-Off-On | Black | DPDT | cULus | Concave (Curved) | IP40 | 20 A |
