PPTC071 Series

Catalog

CONN HDR 7POS 0.1 TIN PCB

Part	Contact Shape	Insulation Material	Contact Material	Contact Finish - Post	Contact Type	Voltage Rating	Insulation Color	Fastening Type	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Number of Positions Loaded	Connector Type	Number of Rows	Mounting Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions	Contact Length - Post	Contact Length - Post

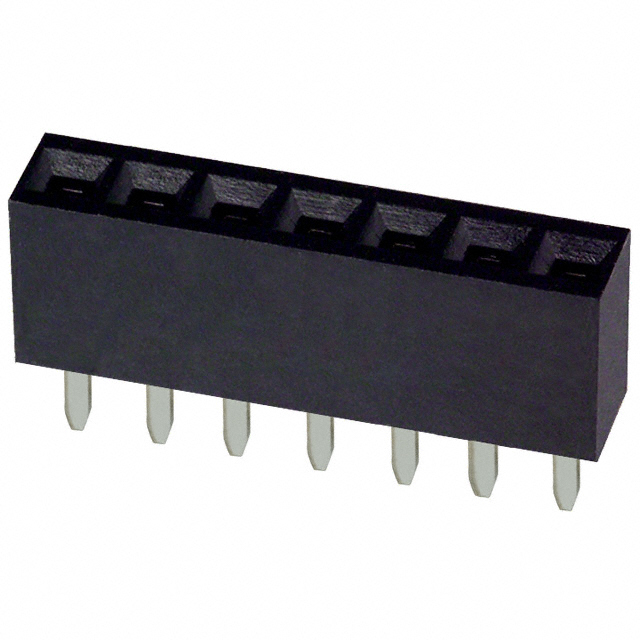

Sullins Connector Solutions PPTC071LFBN	Square	Polyester	Phosphor Bronze	Tin	Female Socket	250 V	Black	Push-Pull	0.1 "	2.54 mm	0.126 "	3.2 mm	Solder	All	Header	1	Through Hole	3 A	-40 C	105 ░C	0.335 "	8.51 mm	UL94 V-0	7
Sullins Connector Solutions PPTC071LFBN-RC	Square	Polyester	Phosphor Bronze	Tin	Female Socket	250 V	Black	Push-Pull	0.1 "	2.54 mm	0.126 "	3.2 mm	Solder	All	Header	1	Through Hole	3 A	-40 C	105 ░C	0.335 "	8.51 mm	UL94 V-0	7

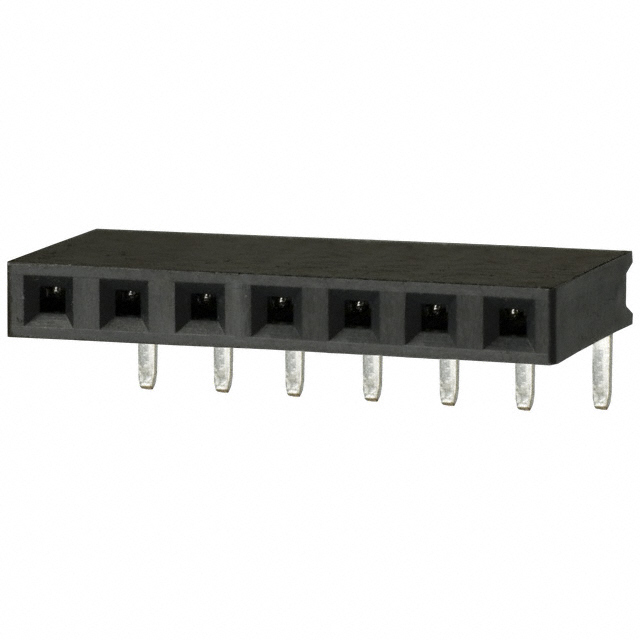

Sullins Connector Solutions PPTC071LGBN-RC	Square	Polyester	Phosphor Bronze	Tin	Female Socket	250 V	Black	Push-Pull	0.1 "	2.54 mm			Solder	All	Header	1	Right Angle Through Hole	3 A	-40 C	105 ░C	0.1 in	2.54 mm	UL94 V-0	7	0.124 in	3.15 mm
