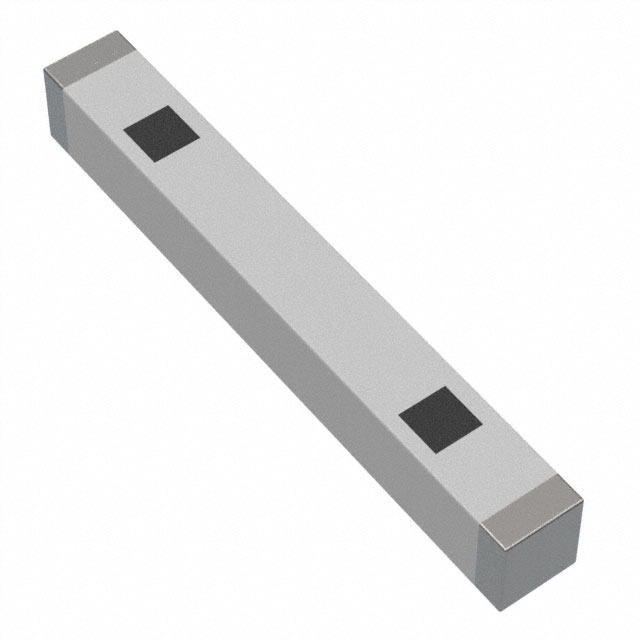

ANT8010 Series
Manufacturer: Pulse Electronics
Beta
⌘K
ANTENNAS 8010 GPS/GLONASS CERAMIC CHIP
| Part | Gain | Power - Max [Max] | RF Family/Standard | Frequency (Center/Band) | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Mounting Type | Termination | Antenna Type | Applications | Number of Bands | Frequency Group [Max] | Frequency Group [Min] | Frequency Group | Return Loss | Frequency Range [Max] | Frequency Range [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 1.53 dBi 1.69 dBi | 1 W | Navigation | 1.575 GHz 1.602 GHz | 0.039 in | 1 mm | Surface Mount | Solder | Chip | Galileo GLONASS GPS | 2 | 2 GHz | 1 GHz | UHF | 10 dB | ||
 Pulse Electronics | 5.46 dBi | 1 W | 802.15.4 Bluetooth WiFi | 2.4 GHz | 0.039 in | 1 mm | Surface Mount | Solder | Chip | Bluetooth Wi-Fi Zigbee™ | 1 | -24.9 dB | 2.5 GHz | 2.4 GHz |
