HDSP-H2 Series

Catalog

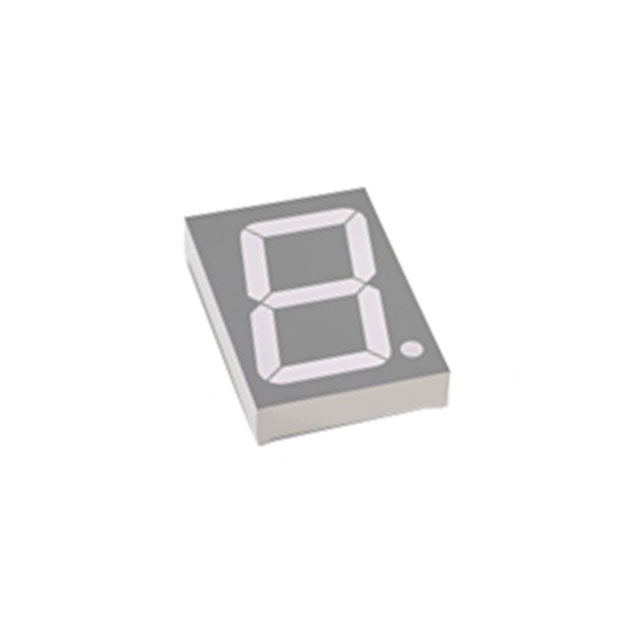

DISPLAY 7SEG 0.56" SGL RED 10DIP

Part	Color	Wavelength - Peak	Display Type	Current - Test	Millicandela Rating	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Power Dissipation (Max) [Max]	Package / Case	Package / Case	Number of Characters	Common Pin	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size
Broadcom Limited HDSP-H213	Red	635 nm	7-Segment	20 mA	2.8 mcd	0.67 in	0.495 "	12.57 mm	17.02 mm	0.315 in	8 mm	105 mW	0.6 in 15.24 mm	10-DIP	1	Common Cathode	2 V	0.56 in	14.22 mm
Broadcom Limited HDSP-H2A1	Red	644 nm	7-Segment	20 mA	95 mcd	0.472 "	1.882 in	47.8 mm	12 mm	2.744 in	69.7 mm	208 mW		10-DIP (2.370" 60.20mm)	1	Common Anode	4 V	2.3 in	58.42 mm
Broadcom Limited HDSP-H2E1	Red	634 nm	7-Segment	20 mA	105 mcd	0.472 "	1.882 in	47.8 mm	12 mm	2.744 in	69.7 mm	208 mW		10-DIP (2.370" 60.20mm)	1	Common Anode	4 V	2.3 in	58.42 mm
