1564514 Series

Catalog

10POS, MIXED,REC HSG,ASSY

Part	Number of Positions	Number of Rows	Connector Type	Fastening Type	Row Spacing [Max]	Row Spacing [Max]	Color	Features	Contact Type	Contact Termination	Note	Insulation Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]

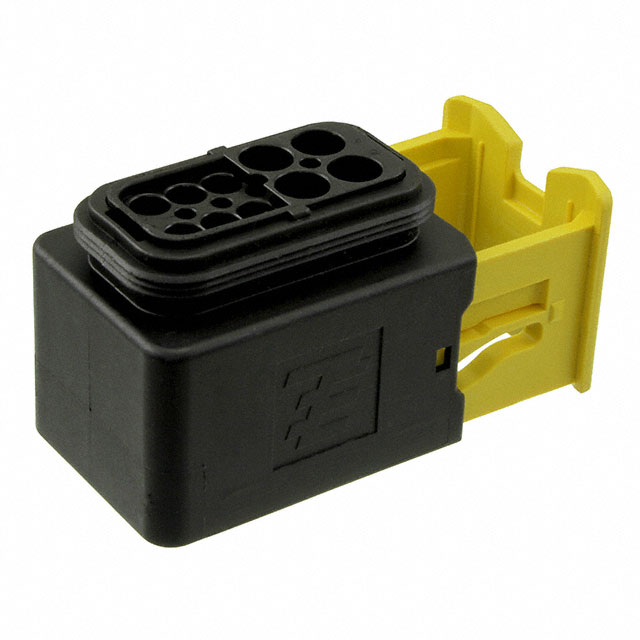

TE Connectivity Raychem Cable Protection 1-1564514-1	10	2	Receptacle	Slide-On	0.236 in	6 mm	Black	Sealed	Female Socket	Crimp	Contacts Not Included	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	140 °C	-40 °C

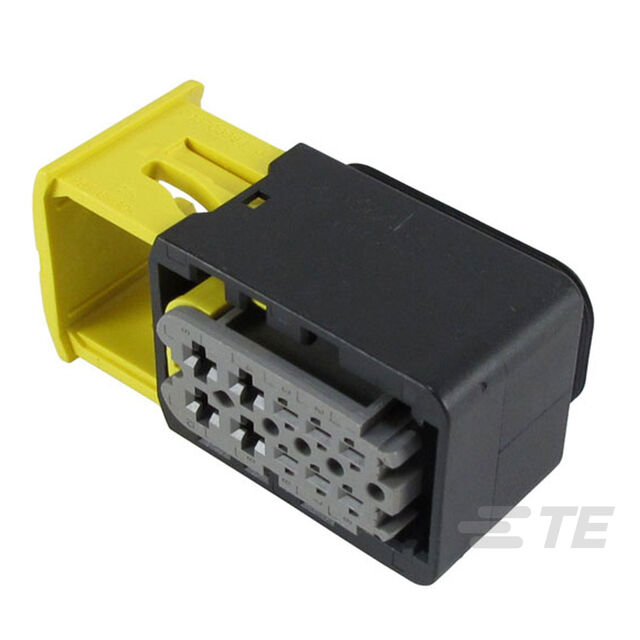

TE Connectivity Raychem Cable Protection 2-1564514-1	10	2	Receptacle	Slide-On	0.236 in	6 mm	Gray	Sealed	Female Socket	Crimp	Contacts Not Included	Polybutylene Terephthalate (PBT) Glass Filled	Free Hanging (In-Line)	140 °C	-40 °C
