ECA-0JH Series

Manufacturer: Panasonic Electronic Components

Catalog

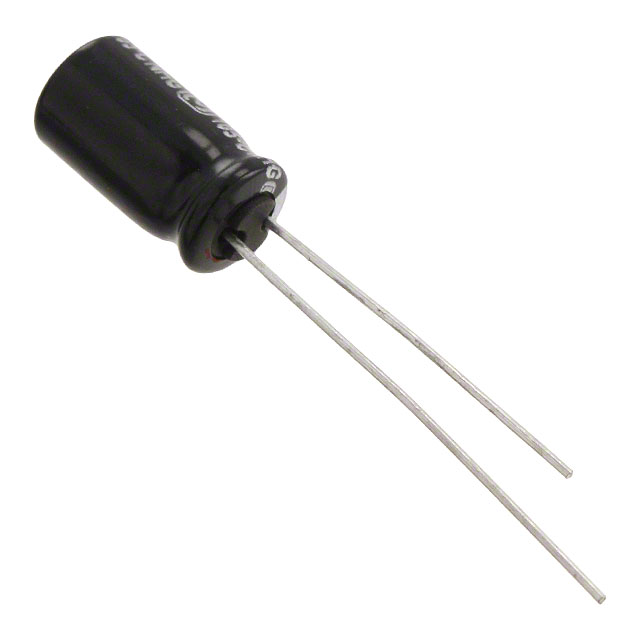

CAP ALUM 100UF 20% 6.3V RADIAL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Voltage - Rated	Ripple Current @ Low Frequency	Polarization	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max)	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Applications	Package / Case	Lead Spacing	Lead Spacing	Ripple Current @ High Frequency	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Ratings	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECA-0JHG101	-55 C	105 ░C	20 %	6.3 VDC	91 mA	Polar	Through Hole	0.472 in	12 mm	0.197 in	5 mm	100 µF	General Purpose	Can Radial	2 mm	0.079 in	136.5 mA	1000 Hrs
Panasonic Electronic Components ECA-0JHG223	-55 C	105 ░C	20 %	6.3 VDC	2.35 A	Polar	Through Hole			0.709 in	18 mm	22000 µF	General Purpose	Can Radial	7.5 mm	0.295 in	2.703 A	2000 Hrs	1.476 in	37.5 mm
Panasonic Electronic Components ECA-0JHG332B	-55 C	105 ░C	20 %	6.3 VDC	840 mA	Polar	Through Hole			0.394 in	10 mm	3.3 mF	Automotive	Can Radial	5 mm	0.197 "	966 mA	2000 Hrs			0.866 in	22 mm	AEC-Q200
Panasonic Electronic Components ECA-0JHG331	-55 C	105 ░C	20 %	6.3 VDC	190 mA	Polar	Through Hole	0.48 in	12.2 mm	0.248 "	6.3 mm	330 µF	General Purpose	Can Radial	2.5 mm	0.098 in	285 mA	1000 Hrs
Panasonic Electronic Components ECA-0JHG102B	-55 C	105 ░C	20 %	6.3 VDC	380 mA	Polar	Through Hole			0.315 in	8 mm	1000 µF	Automotive	Can Radial	5 mm	0.197 "	437 mA	1000 Hrs					AEC-Q200	0.492 in	12.5 mm
Panasonic Electronic Components ECA-0JHG682	-55 C	105 ░C	20 %	6.3 VDC	1.35 A	Polar	Through Hole	1.063 in		0.492 in	12.5 mm	6800 µF	General Purpose	Can Radial	5 mm	0.197 "	1.553 A	2000 Hrs						27 mm
Panasonic Electronic Components ECA-0JHG332	-55 C	105 ░C	20 %	6.3 VDC	840 mA	Polar	Through Hole			0.394 in	10 mm	3.3 mF	General Purpose	Can Radial	5 mm	0.197 "	966 mA	2000 Hrs			0.866 in	22 mm
Panasonic Electronic Components ECA-0JHG682B	-55 C	105 ░C	20 %	6.3 VDC	1.35 A	Polar	Through Hole	1.063 in		0.492 in	12.5 mm	6800 µF	General Purpose	Can Radial	5 mm	0.197 "	1.553 A	2000 Hrs						27 mm
Panasonic Electronic Components ECA-0JHG101I	-55 C	105 ░C	20 %	6.3 VDC	91 mA	Polar	Through Hole	0.472 in	12 mm	0.197 in	5 mm	100 µF	General Purpose	Can Radial	2.5 mm	0.098 in	136.5 mA	1000 Hrs
Panasonic Electronic Components ECA-0JHG471	-55 C	105 ░C	20 %	6.3 VDC	230 mA	Polar	Through Hole	0.48 in	12.2 mm	0.248 "	6.3 mm	470 µF	General Purpose	Can Radial	2.5 mm	0.098 in	345 mA	1000 Hrs
