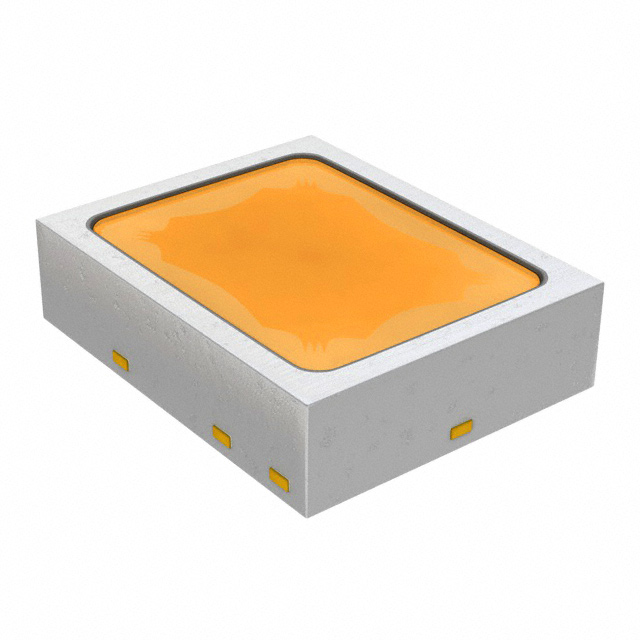

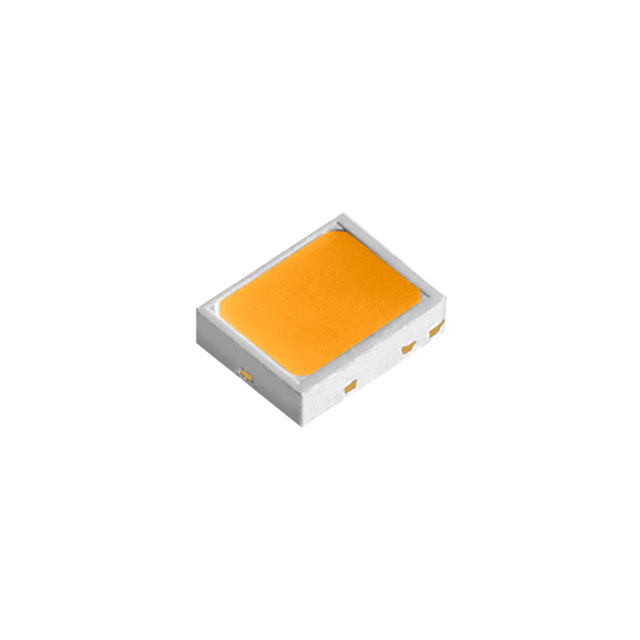

MP-2016 Series

Catalog

LED COOL WHITE 5000K 2016

Part	Thermal Resistance of Package	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	CRI (Color Rendering Index)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Supplier Device Package	Lumens/Watt @ Current - Test	Color	Current - Test	Package / Case	Current - Max [Max]	Flux @ 25°C, Current - Test	Viewing Angle	Voltage - Forward (Vf) (Typ)	CCT (K)
Luminus Devices Inc. MP-2016-2100-50-90	27 °C/W	1.6 mm	0.079 in	0.063 "	2 mm	90	0.52 mm	0.02 in	Surface Mount	2016	126 lm/W	Cool White	60 mA	0806 (2016 Metric)	120 mA	46 lm	110 °	6.1 V	5000 K
Luminus Devices Inc. MP-2016-2100-30-80	27 °C/W	1.6 mm	0.079 in	0.063 "	2 mm	80	0.52 mm	0.02 in	Surface Mount	2016	134 lm/W	Warm White	60 mA	0806 (2016 Metric)	120 mA	49 lm	110 °	6.1 V	3000 K
Luminus Devices Inc. MP-2016-1100-30-90		1.6 mm	0.079 in	0.063 "	2 mm	90	0.52 mm	0.02 in	Surface Mount	2016	122 lm/W	Warm White	60 mA	0806 (2016 Metric)	120 mA	22 lm	110 °	3 V	3000 K
Luminus Devices Inc. MP-2016-1100-65-70		1.6 mm	0.079 in	0.063 "	2 mm	70	0.52 mm	0.02 in	Surface Mount	2016	144 lm/W	Cool White	60 mA	0806 (2016 Metric)	120 mA	26 lm	110 °	3 V	6500 K
Luminus Devices Inc. MP-2016-1100-35-80	27 °C/W	1.6 mm	0.079 in	0.063 "	2 mm	80	0.52 mm	0.02 in	Surface Mount	2016	133 lm/W	Warm White	60 mA	0806 (2016 Metric)	120 mA	24 lm	110 °	3 V	3500 K
Luminus Devices Inc. MP-2016-2100-57-80	27 °C/W	1.6 mm	0.079 in	0.063 "	2 mm	80	0.52 mm	0.02 in	Surface Mount	2016	137 lm/W	Cool White	60 mA	0806 (2016 Metric)	120 mA	50 lm	110 °	6.1 V	5700 K
Luminus Devices Inc. MP-2016-1100-27-90		1.6 mm	0.079 in	0.063 "	2 mm	90	0.52 mm	0.02 in	Surface Mount	2016	122 lm/W	Warm White	60 mA	0806 (2016 Metric)	120 mA	22 lm	110 °	3 V	2700 K
Luminus Devices Inc. MP-2016-1100-40-80		1.6 mm	0.079 in	0.063 "	2 mm	80	0.52 mm	0.02 in	Surface Mount	2016	133 lm/W	Neutral White	60 mA	0806 (2016 Metric)	120 mA	24 lm	110 °	3 V	4000 K
Luminus Devices Inc. MP-2016-1100-57-80		1.6 mm	0.079 in	0.063 "	2 mm	80	0.52 mm	0.02 in	Surface Mount	2016	128 lm/W	Cool White	60 mA	0806 (2016 Metric)	120 mA	23 lm	110 °	3 V	5700 K
Luminus Devices Inc. MP-2016-1100-22-80	27 °C/W	1.6 mm	0.079 in	0.063 "	2 mm	80	0.52 mm	0.02 in	Surface Mount	2016	111 lm/W	Warm White	60 mA	0806 (2016 Metric)	120 mA	20 lm	110 °	3 V	2200 K
