PEC31 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 31POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length [x]	Overall Contact Length [x]	Connector Type	Contact Shape	Mounting Type	Insulation Height	Insulation Height	Current Rating (Amps)	Termination	Pitch - Mating	Pitch - Mating	Number of Positions [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Material	Fastening Type	Shrouding	Contact Length - Mating	Contact Length - Mating	Style	Insulation Color	Number of Rows	Contact Finish - Post	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Insulation Height [z]	Insulation Height [z]	Number of Rows [custom]	Contact Length - Post [custom]	Contact Length - Post [custom]
Sullins Connector Solutions PEC31SFAN	2.54 µm	100 µin	13.67 mm	0.538 in	Header Breakaway	Square	Through Hole	0.1 in	2.54 mm	3 A	Solder	0.1 "	2.54 mm	31	-65 ░C	125 °C	UL94 V-0	All	3.05 mm	0.12 in	Polybutylene Terephthalate (PBT)	Push-Pull	Unshrouded	8.08 mm	0.318 in	Board to Board Cable	Black	1	Tin	Phosphor Bronze	100 çin	2.54 çm	Male Pin

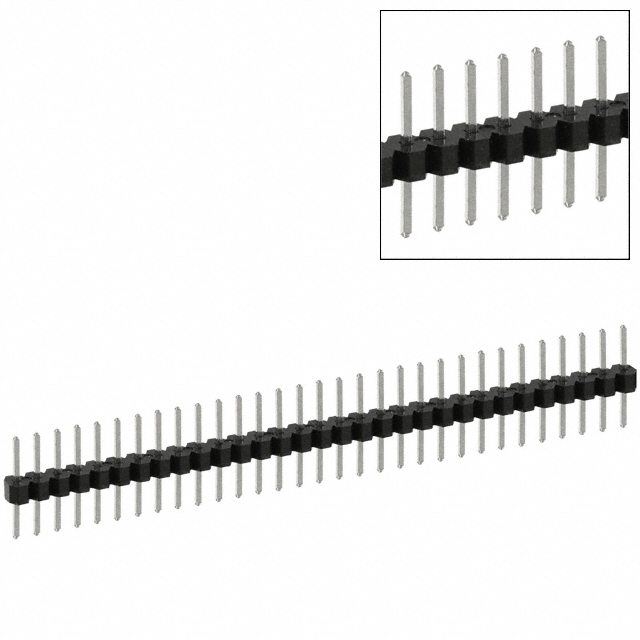

Sullins Connector Solutions PEC31SABN	2.54 µm	100 µin			Header Breakaway	Square	Through Hole	0.1 in	2.54 mm	3 A	Solder	0.1 "	2.54 mm	31	-65 ░C	125 °C	UL94 V-0	All	5.84 mm	0.23 "	Polybutylene Terephthalate (PBT)	Push-Pull	Unshrouded	5.84 mm	0.23 in	Board to Board Cable	Black	1	Tin	Phosphor Bronze	100 çin	2.54 çm	Male Pin	0.56 in	14.22 mm

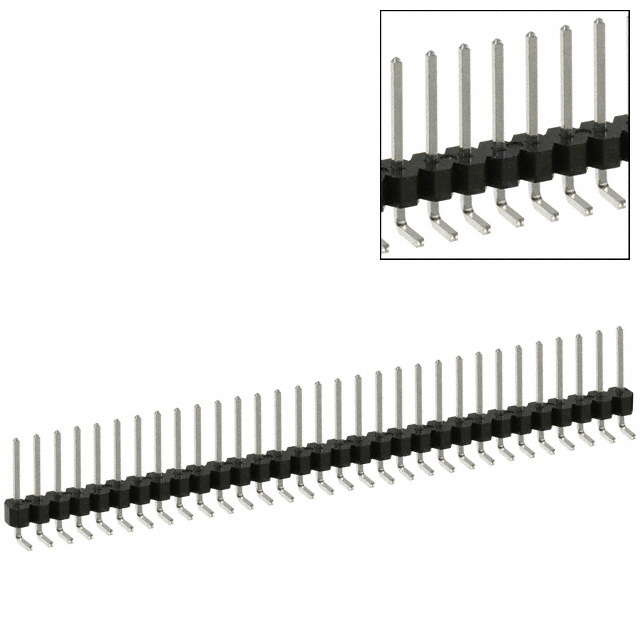

Sullins Connector Solutions PEC31SGAN	2.54 µm	100 µin			Header Breakaway	Square	Right Angle Through Hole	0.14 in	3.56 mm	3 A	Solder	0.1 "	2.54 mm	31	-65 ░C	125 °C	UL94 V-0	All	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	Push-Pull	Unshrouded	8.08 mm	0.318 in	Board to Board Cable	Black	1	Tin	Phosphor Bronze	100 çin	2.54 çm	Male Pin
Sullins Connector Solutions PEC31DBEN	2.54 µm	100 µin			Header Breakaway	Square	Right Angle Through Hole			3 A	Solder	0.1 "	2.54 mm		-65 ░C	125 °C	UL94 V-0	All	12.7 mm	0.5 "	Polybutylene Terephthalate (PBT)	Push-Pull	Unshrouded	5.84 mm	0.23 in	Board to Board Cable	Black		Tin	Phosphor Bronze	100 çin	2.54 çm	Male Pin			0.1 in	2.54 mm	62	6.1 mm	0.24 in	2

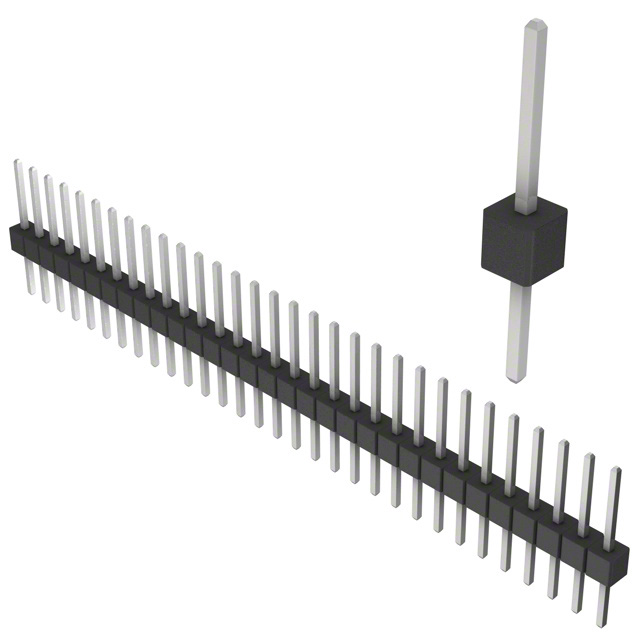

Sullins Connector Solutions PEC31SFBN	2.54 µm	100 µin			Header Breakaway	Square	Through Hole	0.1 in	2.54 mm	3 A	Solder	0.1 "	2.54 mm	31	-65 ░C	125 °C	UL94 V-0	All	5.58 mm	0.22 in	Polybutylene Terephthalate (PBT)	Push-Pull	Unshrouded	8.08 mm	0.318 in	Board to Board Cable	Black	1	Tin	Phosphor Bronze	100 çin	2.54 çm	Male Pin	0.638 in	16.21 mm
Sullins Connector Solutions PEC31DGBN	2.54 µm	100 µin			Header Breakaway	Square	Right Angle Through Hole			3 A	Solder	0.1 "	2.54 mm		-65 ░C	125 °C	UL94 V-0	All			Polybutylene Terephthalate (PBT)	Push-Pull	Unshrouded	8.08 mm	0.318 in	Board to Board Cable	Black		Tin	Phosphor Bronze	100 çin	2.54 çm	Male Pin			0.1 in	2.54 mm	62	6.1 mm	0.24 in	2	5.08 mm	0.2 "
Sullins Connector Solutions PEC31DAHN	2.54 µm	100 µin			Header Breakaway	Square	Through Hole	0.1 in	2.54 mm	3 A	Solder	0.1 "	2.54 mm		-65 ░C	125 °C	UL94 V-0	All	20.83 mm	0.82 in	Polybutylene Terephthalate (PBT)	Push-Pull	Unshrouded	5.84 mm	0.23 in	Board to Board Cable	Black		Tin	Phosphor Bronze	100 çin	2.54 çm	Male Pin	1.15 in	29.21 mm	0.1 in	2.54 mm	62			2

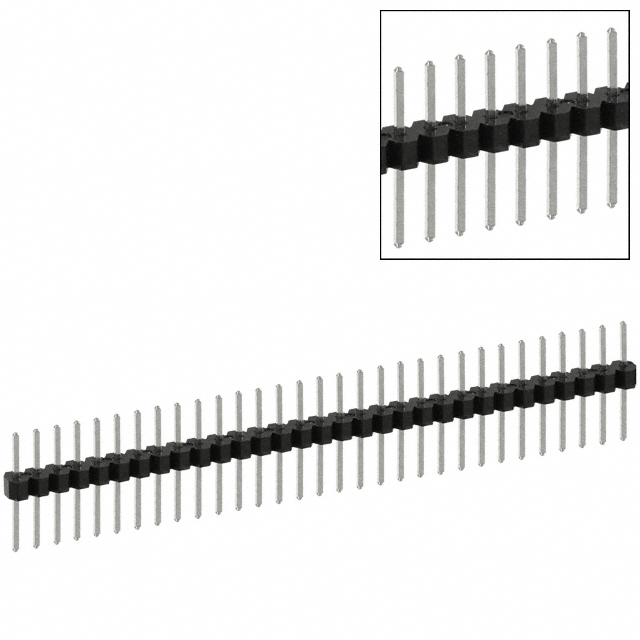

Sullins Connector Solutions PEC31SACN	2.54 µm	100 µin			Header Breakaway	Square	Through Hole	0.1 in	2.54 mm	3 A	Solder	0.1 "	2.54 mm	31	-65 ░C	125 °C	UL94 V-0	All	8.13 mm	0.32 in	Polybutylene Terephthalate (PBT)	Push-Pull	Unshrouded	5.84 mm	0.23 in	Board to Board Cable	Black	1	Tin	Phosphor Bronze	100 çin	2.54 çm	Male Pin	0.65 in	16.51 mm

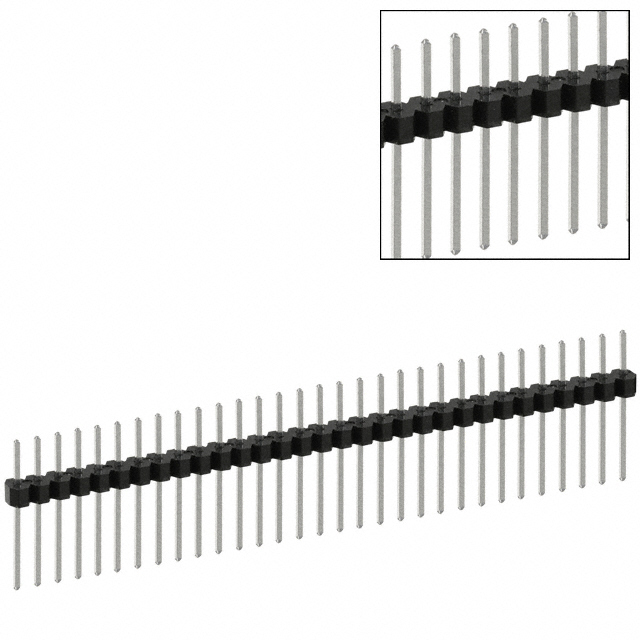

Sullins Connector Solutions PEC31SADN	2.54 µm	100 µin	19.05 mm	0.75 in	Header Breakaway	Square	Through Hole	0.1 in	2.54 mm	3 A	Solder	0.1 "	2.54 mm	31	-65 ░C	125 °C	UL94 V-0	All	10.67 mm	0.42 in	Polybutylene Terephthalate (PBT)	Push-Pull	Unshrouded	5.84 mm	0.23 in	Board to Board Cable	Black	1	Tin	Phosphor Bronze	100 çin	2.54 çm	Male Pin

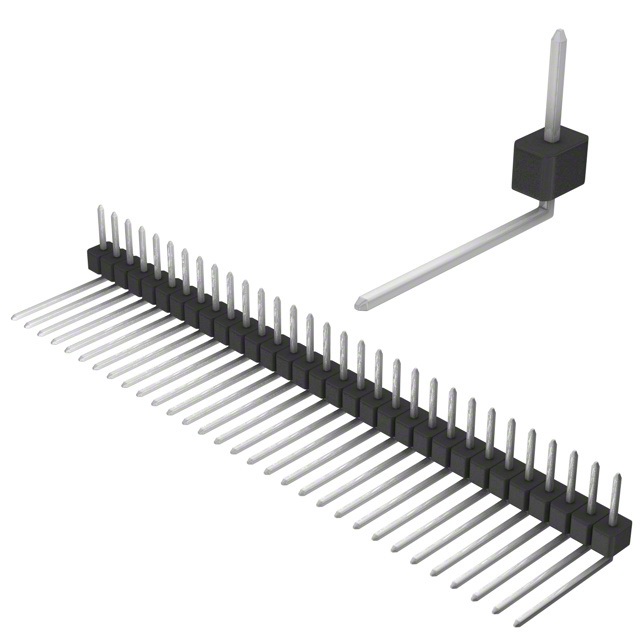

Sullins Connector Solutions PEC31SBEN	2.54 µm	100 µin			Header Breakaway	Square	Right Angle Through Hole	0.14 in	3.56 mm	3 A	Solder	0.1 "	2.54 mm	31	-65 ░C	125 °C	UL94 V-0	All	12.7 mm	0.5 "	Polybutylene Terephthalate (PBT)	Push-Pull	Unshrouded	5.84 mm	0.23 in	Board to Board Cable	Black	1	Tin	Phosphor Bronze	100 çin	2.54 çm	Male Pin
