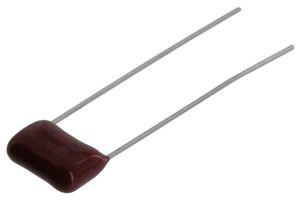

ECQ-E4273 Series

Manufacturer: Panasonic Electronic Components

Catalog

ECQE(F), MET POLYESTER FILM CAP RADIAL L ROHS COMPLIANT: YES

Part	Dielectric Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Tolerance	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Voltage Rating - DC	Package / Case	Lead Spacing	Lead Spacing	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E4273KFB	Polyester Metallized	0.406 in	10.3 mm	5.5 mm	0.217 in	0.512 "	13 mm	General Purpose	10 %	PC Pins	-40 C	105 ░C	0.027 µF	400 V	Radial	0.295 in	7.5 mm	Through Hole
Panasonic Electronic Components ECQ-E4273JF3	Polyester Metallized	0.406 in	10.3 mm	5.5 mm	0.217 in	0.512 "	13 mm	General Purpose	5 %	PC Pins	-40 C	105 ░C	0.027 µF	400 V	Radial	0.197 "	5 mm	Through Hole
Panasonic Electronic Components ECQ-E4273RKF	Polyester Metallized	0.406 in	10.3 mm	5.5 mm	0.217 in	0.512 "	13 mm	General Purpose	10 %	PC Pins	-40 C	105 ░C	0.027 µF	400 V	Radial	0.295 in	7.5 mm	Through Hole
Panasonic Electronic Components ECQ-E4273JFW	Polyester Metallized	0.406 in	10.3 mm	5.5 mm	0.217 in	0.512 "	13 mm	General Purpose	5 %	PC Pins	-40 C	105 ░C	0.027 µF	400 V	Radial	0.295 in	7.5 mm	Through Hole
Panasonic Electronic Components ECQ-E4273JFB	Polyester Metallized	0.406 in	10.3 mm	5.5 mm	0.217 in	0.512 "	13 mm	General Purpose	5 %	PC Pins	-40 C	105 ░C	0.027 µF	400 V	Radial	0.295 in	7.5 mm	Through Hole
Panasonic Electronic Components ECQ-E4273JF	Polyester Metallized	0.406 in	10.3 mm	5.5 mm	0.217 in			General Purpose	5 %	PC Pins	-40 C	105 ░C	0.027 µF	400 V	Radial	0.295 in	7.5 mm	Through Hole	8 mm	0.315 in
Panasonic Electronic Components ECQ-E4273KFW	Polyester Metallized	0.406 in	10.3 mm	5.5 mm	0.217 in	0.512 "	13 mm	General Purpose	10 %	PC Pins	-40 C	105 ░C	0.027 µF	400 V	Radial	0.295 in	7.5 mm	Through Hole
Panasonic Electronic Components ECQ-E4273RJF	Polyester Metallized	0.406 in	10.3 mm	5.5 mm	0.217 in	0.512 "	13 mm	General Purpose	5 %	PC Pins	-40 C	105 ░C	0.027 µF	400 V	Radial	0.295 in	7.5 mm	Through Hole
Panasonic Electronic Components ECQ-E4273JF9	Polyester Metallized	0.406 in	10.3 mm	5.5 mm	0.217 in	0.512 "	13 mm	General Purpose	5 %	PC Pins	-40 C	105 ░C	0.027 µF	400 V	Radial	0.197 "	5 mm	Through Hole
Panasonic Electronic Components ECQ-E4273KF3	Polyester Metallized	0.406 in	10.3 mm	5.5 mm	0.217 in	0.512 "	13 mm	General Purpose	10 %	PC Pins	-40 C	105 ░C	0.027 µF	400 V	Radial	0.197 "	5 mm	Through Hole
