235P-ENCL Series

1-PHASE PUMPSAVERPLUS / 230 V

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

1-PHASE PUMPSAVERPLUS / 230 V

Part	Type	Voltage - Supply	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Trip Range [Max]	Trip Range [Min]	Delay Time	Delay Time	Trip Status	Contact Rating @ Voltage
Littelfuse/Commercial Vehicle Products 235P-ENCL	Voltage Sensing AC	230 VAC	Chassis Mount	-40 °C	55 °C	265 V AC	190 V AC	Fixed	2 Sec	Energized High/Low	10 A 240 VAC

Catalog

1-PHASE PUMPSAVERPLUS / 230 V

Description

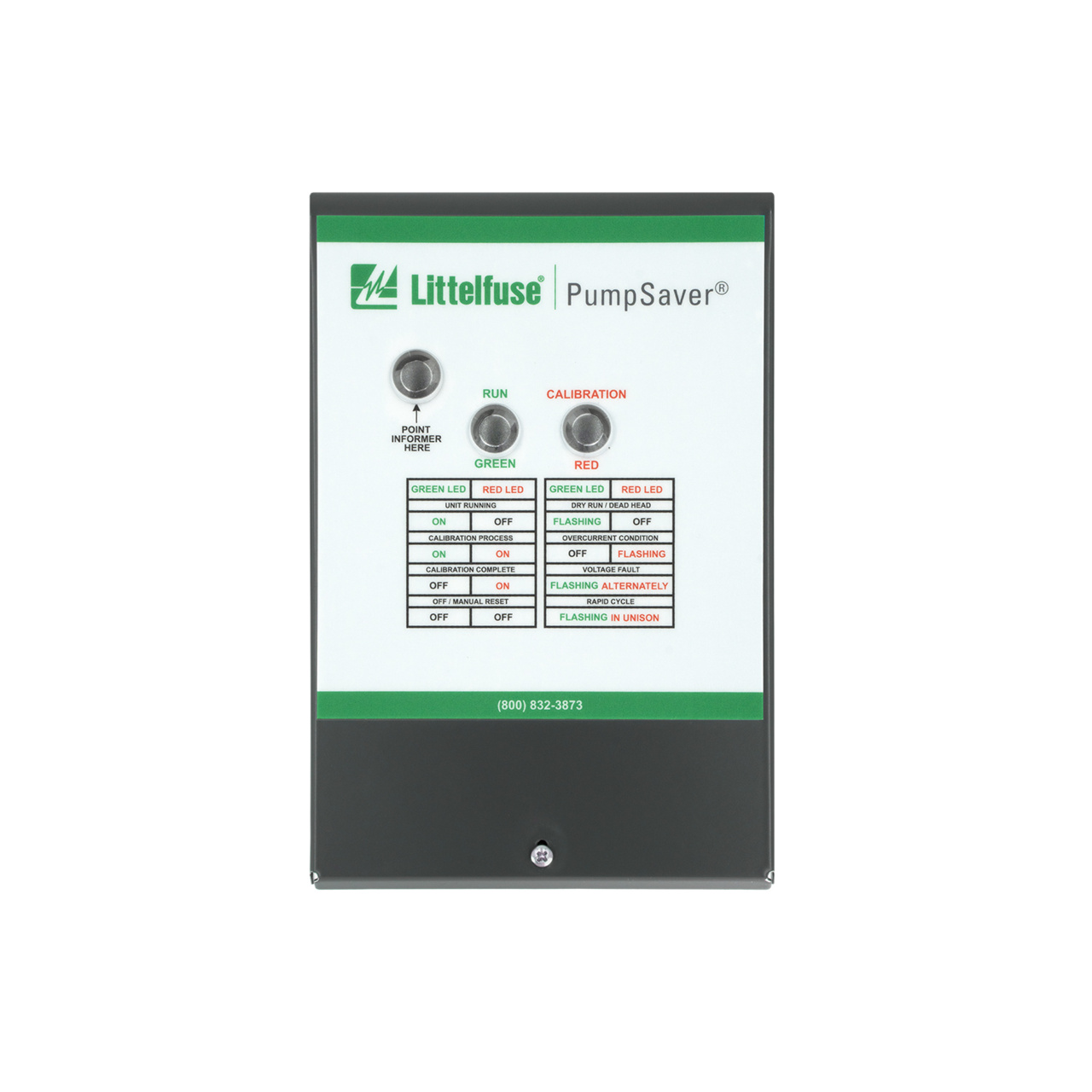

The 235P-ENCL is an enclosed single-phase pump monitor with an input voltage value of 230 V ac, an input load range of 5–15 hp (external current transformer required), and the following dimensions: 8.3" H x 5.36" W x 3.68" D.
