391-072 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 72POS 0.100

Part	Number of Positions	Card Type	Termination Rows	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Material - Insulation	Contact Type	Pitch [x]	Pitch [x]	Contact Material	Contact Finish	Number of Rows	Color	Termination	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 391-072-556-208	72	Non Specified - Dual Edge	2	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Dual	Card Extender	10 Áin	0.25 Ám	36	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Polyester Thermoplastic	Semi Bellows	2.54 mm	0.1 in	Copper Alloy	Gold	2	Black	Solder
EDAC Inc. 391-072-521-208	72	Non Specified - Dual Edge	2	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C	Dual		10 Áin	0.25 Ám	36	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Polyester Thermoplastic	Semi Bellows	2.54 mm	0.1 in	Copper Alloy	Gold	2	Black	Solder
EDAC Inc. 391-072-522-201	72	Non Specified - Dual Edge	2		-40 °C	105 ░C	Dual		10 Áin	0.25 Ám	36	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Polyester Thermoplastic	Semi Bellows	2.54 mm	0.1 in	Copper Alloy	Gold	2	Black	Solder
EDAC Inc. 391-072-556-204	72	Non Specified - Dual Edge	2	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Dual	Card Extender	10 Áin	0.25 Ám	36	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Polyester Thermoplastic	Semi Bellows	2.54 mm	0.1 in	Copper Alloy	Gold	2	Black	Solder	3.96 mm	0.156 in
EDAC Inc. 391-072-521-201	72	Non Specified - Dual Edge	2		-40 °C	105 ░C	Dual		10 Áin	0.25 Ám	36	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Polyester Thermoplastic	Semi Bellows	2.54 mm	0.1 in	Copper Alloy	Gold	2	Black	Solder

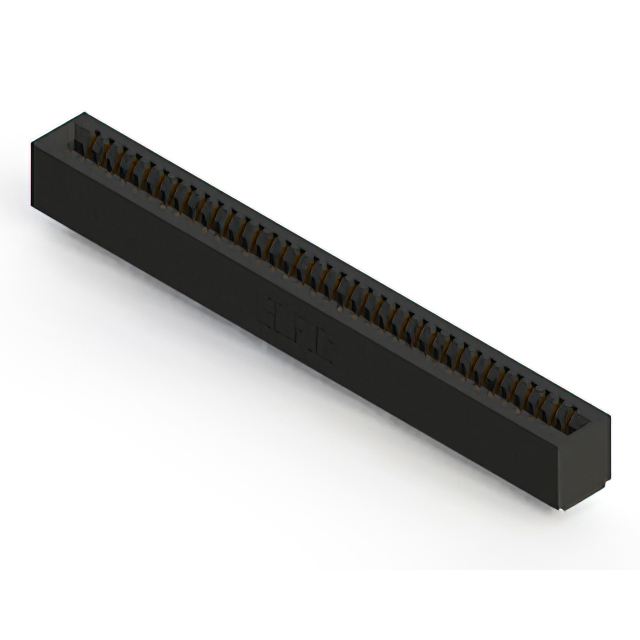

EDAC Inc. 391-072-524-201	72	Non Specified - Dual Edge	2		-40 °C	105 ░C	Dual		10 Áin	0.25 Ám	36	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Polyester Thermoplastic	Semi Bellows	2.54 mm	0.1 in	Copper Alloy	Gold	2	Black	Solder
EDAC Inc. 391-072-524-202	72	Non Specified - Dual Edge	2	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Dual		10 Áin	0.25 Ám	36	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Polyester Thermoplastic	Semi Bellows	2.54 mm	0.1 in	Copper Alloy	Gold	2	Black	Solder	3.25 mm	0.128 "
EDAC Inc. 391-072-521-203	72	Non Specified - Dual Edge	2	Floating Bobbin Flush Mount	-40 °C	105 ░C	Dual		10 Áin	0.25 Ám	36	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Polyester Thermoplastic	Semi Bellows	2.54 mm	0.1 in	Copper Alloy	Gold	2	Black	Solder	2.95 mm	0.116 in
EDAC Inc. 391-072-556-207	72	Non Specified - Dual Edge	2	Flush Mount M3 Threaded Insert Top Opening	-40 °C	105 ░C	Dual	Card Extender	10 Áin	0.25 Ám	36	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Polyester Thermoplastic	Semi Bellows	2.54 mm	0.1 in	Copper Alloy	Gold	2	Black	Solder

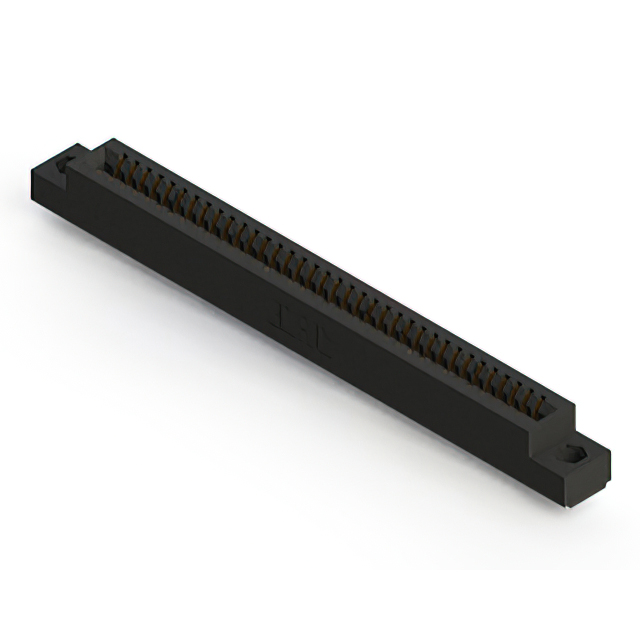

EDAC Inc. 391-072-524-204	72	Non Specified - Dual Edge	2	Flush Mount Top Opening Unthreaded	-40 °C	105 ░C	Dual		10 Áin	0.25 Ám	36	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Polyester Thermoplastic	Semi Bellows	2.54 mm	0.1 in	Copper Alloy	Gold	2	Black	Solder	3.96 mm	0.156 in
