45121 Series

Catalog

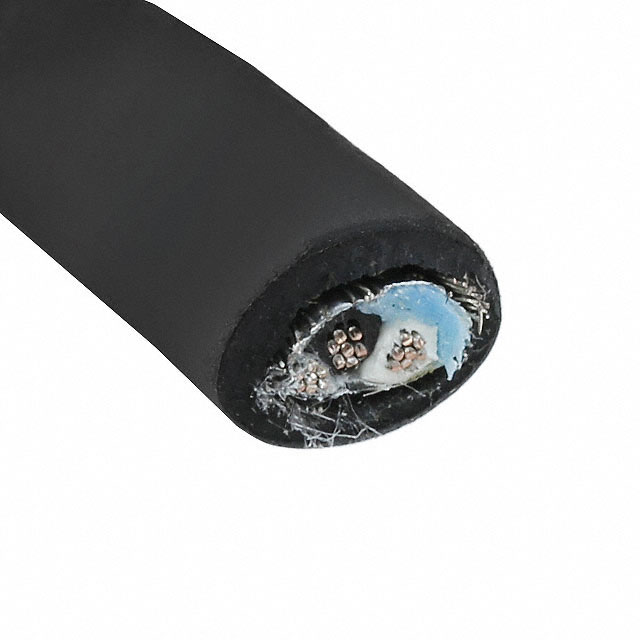

CABLE 2COND 22AWG SHLD 1000'

Part	Shield Material	Shield Coverage	Shield Type	Conductor Material	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness [custom]	Jacket Color	Number of Conductors	Conductor Insulation	Conductor Insulation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Ratings	Length [x]	Length [x]
ALPHA WIRE 45121 SL199	Copper Tinned Suprashield®	70 % 100 %	Braid Foil	Copper Tinned	300 VDC	6.25 mm	0.246 in	Thermoplastic Elastomer (TPE)	304.8 m	1000 ft	1.143 mm	0.045 in	Slate	2	TPE	Thermoplastic Elastomer	Biological Compatibility Drain Wire Rip Cord	125 °C	-50 °C	22 AWG	30 AWG	7	Multi-Conductor	ISO 10993
ALPHA WIRE 45121 YL199	Copper Tinned Suprashield®	70 % 100 %	Braid Foil	Copper Tinned	300 VDC	6.25 mm	0.246 in	Thermoplastic Elastomer (TPE)	304.8 m	1000 ft	1.143 mm	0.045 in	Yellow	2	TPE	Thermoplastic Elastomer	Biological Compatibility Drain Wire Rip Cord	125 °C	-50 °C	22 AWG	30 AWG	7	Multi-Conductor	ISO 10993
ALPHA WIRE 45121 BK199	Copper Tinned Suprashield®	70 % 100 %	Braid Foil	Copper Tinned	300 VDC	6.25 mm	0.246 in	Thermoplastic Elastomer (TPE)	304.8 m	1000 ft	1.143 mm	0.045 in	Black	2	TPE	Thermoplastic Elastomer	Biological Compatibility Drain Wire Rip Cord	125 °C	-50 °C	22 AWG	30 AWG	7	Multi-Conductor	ISO 10993
ALPHA WIRE 45121 BK005	Copper Tinned Suprashield®	70 % 100 %	Braid Foil	Copper Tinned	300 VDC	6.25 mm	0.246 in	Thermoplastic Elastomer (TPE)			1.143 mm	0.045 in	Black	2	TPE	Thermoplastic Elastomer	Biological Compatibility Drain Wire Rip Cord	125 °C	-50 °C	22 AWG	30 AWG	7	Multi-Conductor	ISO 10993	100 ft	30.5 m
