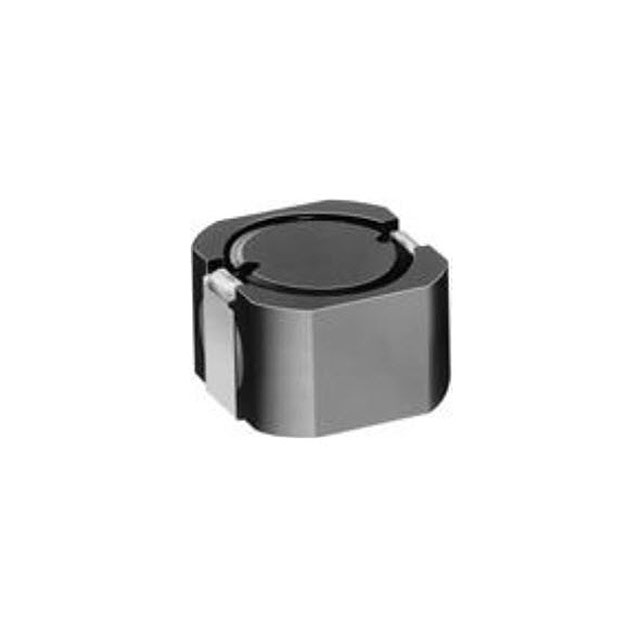

B966AS Series

Catalog

FIXED IND 12UH 3.7A 35 MOHM SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR) [Max]	Current Rating (Amps)	Package / Case	Type	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max)	Inductance	Shielding	Tolerance	Current - Saturation (Isat)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Material - Core	DC Resistance (DCR)
Murata Electronics #B966AS-120M=P3	85 °C	-40 C	35 mOhm	3.7 A	Nonstandard	Drum Core Wirewound	100 kHz	0.268 "	6.8 mm	12 µH	Shielded	20 %	3.9 A	10.4 mm	0.409 in	0.409 in	10.4 mm	Surface Mount	Ferrite
Murata Electronics #B966AS-4R7N=P3	85 °C	-40 C	18 mOhm	5.4 A	Nonstandard	Drum Core Wirewound	100 kHz	0.268 "	6.8 mm	4.7 ÁH	Shielded	30 %	6.1 A	10.4 mm	0.409 in	0.409 in	10.4 mm	Surface Mount	Ferrite
Murata Electronics #B966AS-160M=P3	85 °C	-40 C		2.7 A	Nonstandard	Drum Core Wirewound	100 kHz	0.268 "	6.8 mm	16 µH	Shielded	20 %	3.3 A	10.4 mm	0.409 in	0.409 in	10.4 mm	Surface Mount	Ferrite
Murata Electronics #B966AS-3R9N=P3	85 °C	-40 C	17 mOhm	5.6 A	Nonstandard	Drum Core Wirewound	100 kHz	0.268 "	6.8 mm	3.9 µH	Shielded	30 %	7.1 A	10.4 mm	0.409 in	0.409 in	10.4 mm	Surface Mount	Ferrite
Murata Electronics #B966AS-8R2N=P3	85 °C	-40 C		4.6 A	Nonstandard	Drum Core Wirewound	100 kHz	0.268 "	6.8 mm	8.2 µH	Shielded	30 %	4.8 A	10.4 mm	0.409 in	0.409 in	10.4 mm	Surface Mount	Ferrite	24 mOhm
Murata Electronics #B966AS-100M=P3	85 °C	-40 C		4.3 A	Nonstandard	Drum Core Wirewound	100 kHz	0.268 "	6.8 mm	10 µH	Shielded	20 %	4.4 A	10.4 mm	0.409 in	0.409 in	10.4 mm	Surface Mount	Ferrite	28 mOhm
Murata Electronics #B966AS-2R7N=P3	85 °C	-40 C	15 mOhm	6.1 A	Nonstandard	Drum Core Wirewound	100 kHz	0.268 "	6.8 mm	2.7 µH	Shielded	30 %	8.1 A	10.4 mm	0.409 in	0.409 in	10.4 mm	Surface Mount	Ferrite
Murata Electronics #B966AS-1R8N=P3	85 °C	-40 C		6.7 A	Nonstandard	Drum Core Wirewound	100 kHz	0.268 "	6.8 mm	1.8 µH	Shielded	30 %	9.8 A	10.4 mm	0.409 in	0.409 in	10.4 mm	Surface Mount	Ferrite	14 mOhm
Murata Electronics #B966AS-6R8N=P3	85 °C	-40 C	21 mOhm	5 A	Nonstandard	Drum Core Wirewound	100 kHz	0.268 "	6.8 mm	6.8 µH	Shielded	30 %	5.2 A	10.4 mm	0.409 in	0.409 in	10.4 mm	Surface Mount	Ferrite
