SWM6-6 Series

Manufacturer: CUI Inc.

Catalog

WALL MOUNT AC ADAPTERS 6W 6V 1A USA HORZ 2.1 RA PLUG

Part	Standard Number	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Polarization	Operating Temperature [Max]	Current - Output (Max) [Max]	Output Connector [custom]	Output Connector	Output Connector [custom]	Output Connector [custom]	Input Type	Efficiency	Region Utilized	Form	Voltage - Output	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Approval Agency	No Load Power Consumption	Applications	Cord Length	Cord Length	Size / Dimension [y]	Size / Dimension [z]	Output Connector [diameter]	Output Connector [x]	Output Connector [z]
CUI Inc. SWM6-6-NH-P5R	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	25 mm	2.17 "	36.7 mm	0.98 in	1.44 in	55 mm	Positive Center	40 °C	1 A	9.5 mm	Barrel Plug R/A	5.5 mm	2.1 mm	Fixed Blade	Level VI	North America	Wall Mount	6 V	NEMA 1-15P	264 VAC	90 VAC	6 W	CB Scheme CSA EN FCC IEC PSE UL	100 mW	Medical	1.5 m	59 in
CUI Inc. SWM6-6-NV-MUB	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3		2.11 "		1.62 in	1.11 in	53.5 mm		40 °C	1 A		USB Micro			Fixed Blade	Level VI	North America	Wall Mount	6 V	NEMA 1-15P	264 VAC	90 VAC	6 W	CB Scheme CSA EN FCC IEC PSE UL	100 mW	Medical	1.5 m	59 in	41.2 mm	28.2 mm
CUI Inc. SWM6-6-NH-MUB	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	25 mm	2.17 "	36.7 mm	0.98 in	1.44 in	55 mm		40 °C	1 A		USB Micro			Fixed Blade	Level VI	North America	Wall Mount	6 V	NEMA 1-15P	264 VAC	90 VAC	6 W	CB Scheme CSA EN FCC IEC PSE UL	100 mW	Medical	1.5 m	59 in
CUI Inc. SWM6-6-EH-P5	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	25 mm	2.17 "	36.7 mm	0.98 in	1.44 in	55 mm	Positive Center	40 °C	1 A		Barrel Plug			Fixed Blade	CoC Tier 2 Level VI	Europe	Wall Mount	6 V	CEE 7/16	264 VAC	90 VAC	6 W	CB Scheme CSA EN FCC IEC PSE TUV UL	75 mW	Medical	1.5 m	59 in			2.1 mm 5.5 mm	9.5 mm

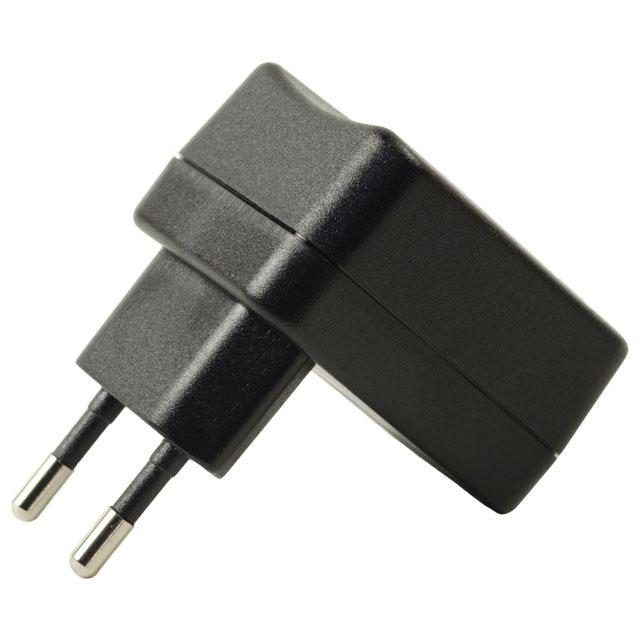

CUI Inc. SWM6-6-EV-MUB	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3		2.11 "		1.62 in	1.11 in	53.5 mm		40 °C	1 A		USB Micro			Fixed Blade	CoC Tier 2 Level VI	Europe	Wall Mount	6 V	CEE 7/16	264 VAC	90 VAC	6 W	CB Scheme CSA EN FCC IEC PSE TUV UL	75 mW	Medical	1.5 m	59 in	41.2 mm	28.2 mm
CUI Inc. SWM6-6-EH-P6R	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	25 mm	2.17 "	36.7 mm	0.98 in	1.44 in	55 mm	Positive Center	40 °C	1 A		Barrel Plug R/A			Fixed Blade	CoC Tier 2 Level VI	Europe	Wall Mount	6 V	CEE 7/16	264 VAC	90 VAC	6 W	CB Scheme CSA EN FCC IEC PSE TUV UL	75 mW	Medical	1.5 m	59 in			2.5 mm 5.5 mm		9.5 mm
CUI Inc. SWM6-6-EV-I38	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3								40 °C	1 A		USB A Receptacle			Fixed Blade	CoC Tier 2 Level VI	Europe	Wall Mount	6 V	CEE 7/16	264 VAC	90 VAC	6 W	CB Scheme CSA EN FCC IEC PSE TUV UL	75 mW	Medical
CUI Inc. SWM6-6-NH-P6R	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	25 mm	2.17 "	36.7 mm	0.98 in	1.44 in	55 mm	Positive Center	40 °C	1 A		Barrel Plug R/A			Fixed Blade	Level VI	North America	Wall Mount	6 V	NEMA 1-15P	264 VAC	90 VAC	6 W	CB Scheme CSA EN FCC IEC PSE UL	100 mW	Medical	1.5 m	59 in			2.5 mm 5.5 mm		9.5 mm
CUI Inc. SWM6-6-NV-P6R	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3		2.11 "		1.62 in	1.11 in	53.5 mm	Positive Center	40 °C	1 A		Barrel Plug R/A			Fixed Blade	Level VI	North America	Wall Mount	6 V	NEMA 1-15P	264 VAC	90 VAC	6 W	CB Scheme CSA EN FCC IEC PSE UL	100 mW	Medical	1.5 m	59 in	41.2 mm	28.2 mm	2.5 mm 5.5 mm		9.5 mm
CUI Inc. SWM6-6-NV-P5	C22.2 No. 60601-1; 55011 Class B; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3	25 mm	2.17 "	36.7 mm	0.98 in	1.44 in	55 mm	Positive Center	40 °C	1 A		Barrel Plug			Fixed Blade	Level VI	North America	Wall Mount	6 V	NEMA 1-15P	264 VAC	90 VAC	6 W	CB Scheme CSA EN FCC IEC PSE UL	100 mW	Medical	1.5 m	59 in			2.1 mm 5.5 mm	9.5 mm
