745-005 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 5POS 0.100

Part	Termination Rows	Material - Insulation	Card Type	Pitch	Pitch	Gender	Contact Type	Contact Finish	Read Out	Number of Positions/Bay/Row	Color	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Material	Number of Rows	Termination

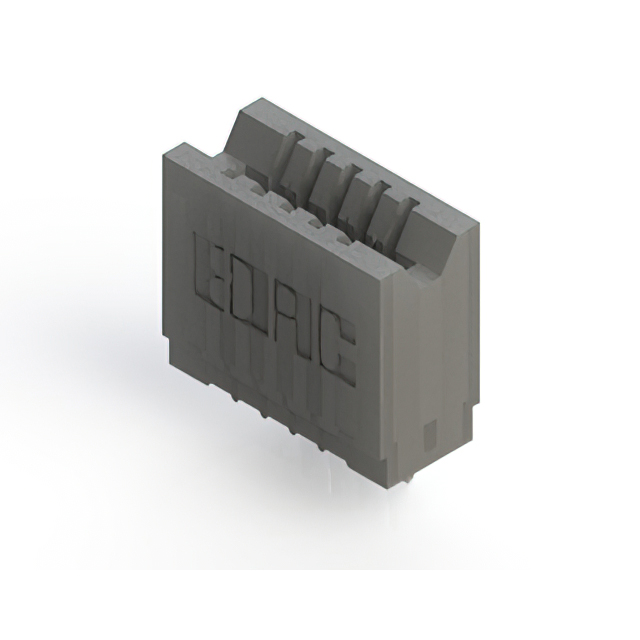

EDAC Inc. 745-005-520-106	1	Polyester Thermoplastic	Non Specified - Single Edge	0.1 "	2.54 mm	Female	Cantilever	Gold	Single	5	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	5	Copper Alloy	1	Press-Fit

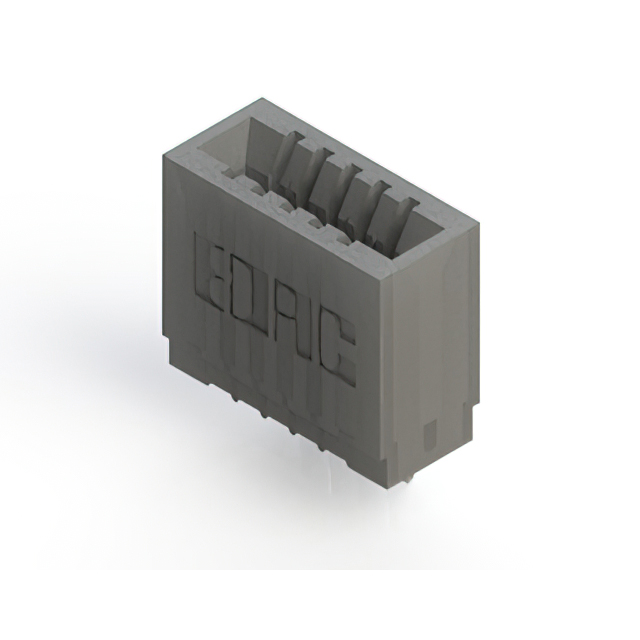

EDAC Inc. 745-005-520-101	1	Polyester Thermoplastic	Non Specified - Single Edge	0.1 "	2.54 mm	Female	Cantilever	Gold	Single	5	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	5	Copper Alloy	1	Press-Fit

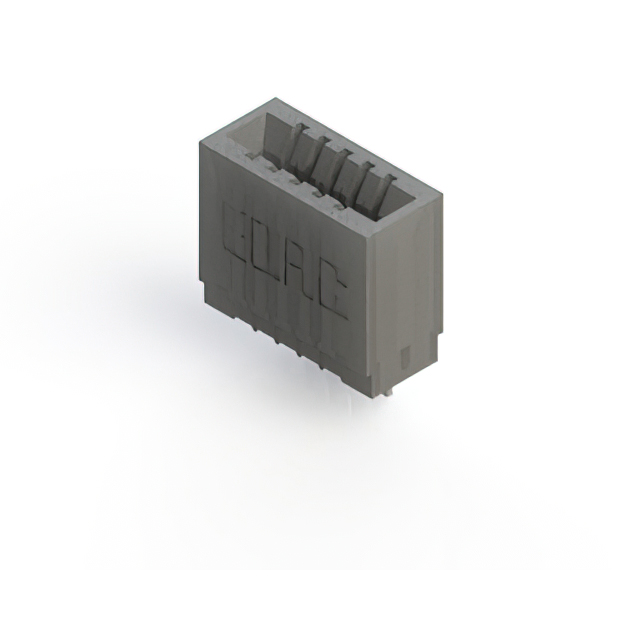

EDAC Inc. 745-005-540-101	1	Polyester Thermoplastic	Non Specified - Single Edge	0.1 "	2.54 mm	Female	Cantilever	Gold	Single	5	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	5	Copper Alloy	1	Press-Fit Wire Wrap

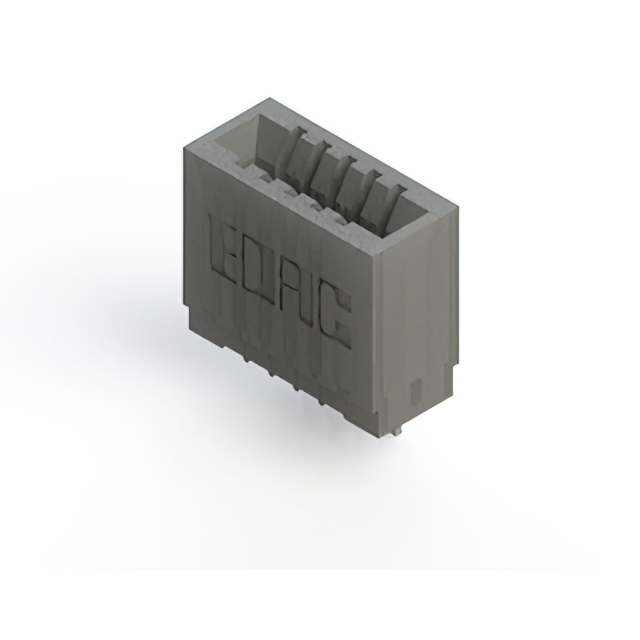

EDAC Inc. 745-005-522-101	1	Polyester Thermoplastic	Non Specified - Single Edge	0.1 "	2.54 mm	Female	Cantilever	Gold	Single	5	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	5	Copper Alloy	1	Press-Fit
EDAC Inc. 745-005-525-106	1	Polyester Thermoplastic	Non Specified - Single Edge	0.1 "	2.54 mm	Female	Cantilever	Gold	Single	5	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	5	Copper Alloy	1	Press-Fit

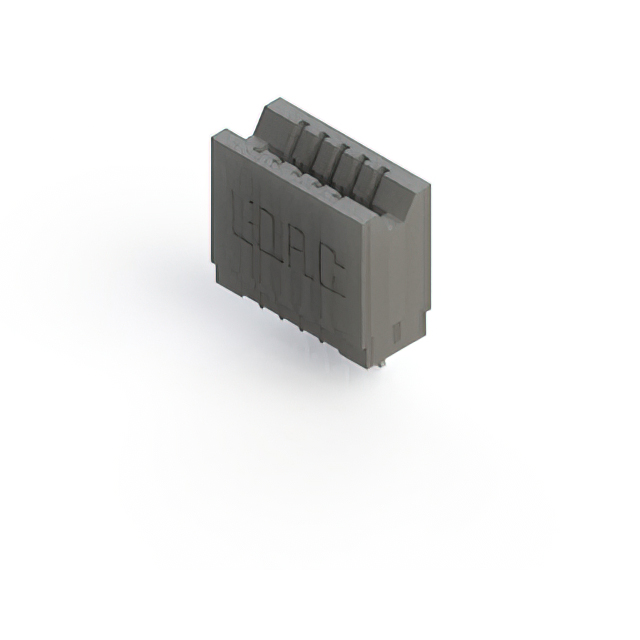

EDAC Inc. 745-005-541-106	1	Polyester Thermoplastic	Non Specified - Single Edge	0.1 "	2.54 mm	Female	Cantilever	Gold	Single	5	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	-40 C	105 ░C	30 Áin	0.76 Ám	5	Copper Alloy	1	Press-Fit Wire Wrap
