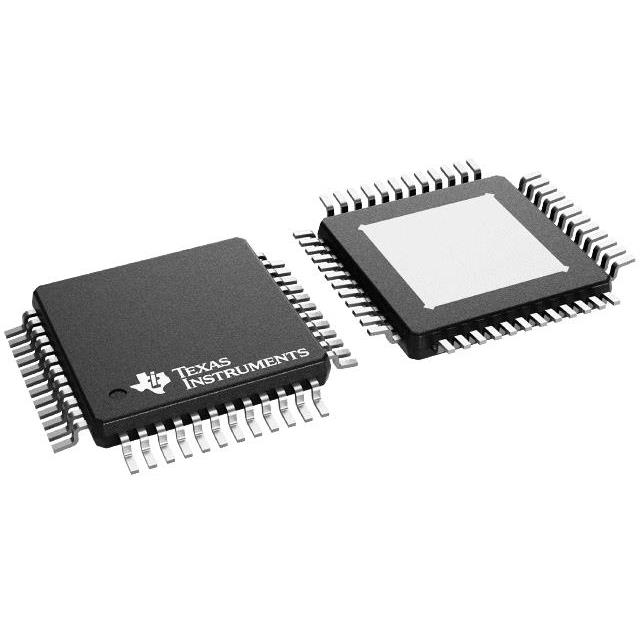

AMC7932 Series
32-channel 12-bit analog monitor and controller with multichannel ADC, bipolar DACs and temp sensor
Manufacturer: Texas Instruments
Catalog
32-channel 12-bit analog monitor and controller with multichannel ADC, bipolar DACs and temp sensor
Key Features
• 32 monotonic 12-bit DACsProgrammable ranges: –10 V to 0 V, –5 V to 0 V, 0 V to 5 V, and 0 V to 10 VHigh current drive capabilityAutorange detectorFlexIO pins; ADC and GPIO configurableAMC7932: 6 FlexIO pinsAMC7932F: 5 FlexIO pins12-bit, 250-kSPS SAR ADCInput ranges: 0 V to 5 V and 0 V to 2.5 VProgrammable out-of-range alarmsGeneral-purpose I/O (GPIO)Built-in sequencing featuresInternal 2.5-V referenceInternal temperature sensorAccuracy: ±2.5°C (maximum)Resolution: 0.0625°CSPI-compatible interface: 1.65-V to 5.5-V operationAMC7932: 3-wire modeAMC7932F: 4-wire modeSpecified temperature range: –40°C to +125°COperating temperature range: –40°C to +150°C32 monotonic 12-bit DACsProgrammable ranges: –10 V to 0 V, –5 V to 0 V, 0 V to 5 V, and 0 V to 10 VHigh current drive capabilityAutorange detectorFlexIO pins; ADC and GPIO configurableAMC7932: 6 FlexIO pinsAMC7932F: 5 FlexIO pins12-bit, 250-kSPS SAR ADCInput ranges: 0 V to 5 V and 0 V to 2.5 VProgrammable out-of-range alarmsGeneral-purpose I/O (GPIO)Built-in sequencing featuresInternal 2.5-V referenceInternal temperature sensorAccuracy: ±2.5°C (maximum)Resolution: 0.0625°CSPI-compatible interface: 1.65-V to 5.5-V operationAMC7932: 3-wire modeAMC7932F: 4-wire modeSpecified temperature range: –40°C to +125°COperating temperature range: –40°C to +150°C
Description
AI
The AMC7932 is a highly integrated analog monitor and control device designed for high-density, general-purpose monitor and control systems. The AMC7932 includes 32 12-bit, digital-to-analog converters (DACs) with programmable output ranges. The device also incorporates a multiplexed, 12-bit analog-to-digital converter (ADC) with programmable threshold detectors, a temperature sensor, and an internal reference. The AMC7932 high level of integration significantly reduces component count and simplifies closed-loop system designs, thus making it a great choice for high-density applications where board space is critical.
The device includes flexible input/output (FlexIO) pins that can be configured as either analog inputs to the ADC or as GPIOs with two available options: AMC7932 (six FlexIO pins) and AMC7932F (five FlexIO pins). Communication to the device is performed through a 3-wire (AMC7932) or 4-wire (AMC7932F) SPI-compatible interface.
The AMC7932 high-integration and wide operating temperature range make the device an excellent choice as an all-in-one, bias-control circuit for the power amplifiers (PA) found in multichannel RF communication systems. The flexible DAC output ranges and built-in sequencing features allow the device to be used as a biasing controller for a large variety of transistor technologies, such as LDMOS, GaAs, and GaN.
The AMC7932 is a highly integrated analog monitor and control device designed for high-density, general-purpose monitor and control systems. The AMC7932 includes 32 12-bit, digital-to-analog converters (DACs) with programmable output ranges. The device also incorporates a multiplexed, 12-bit analog-to-digital converter (ADC) with programmable threshold detectors, a temperature sensor, and an internal reference. The AMC7932 high level of integration significantly reduces component count and simplifies closed-loop system designs, thus making it a great choice for high-density applications where board space is critical.
The device includes flexible input/output (FlexIO) pins that can be configured as either analog inputs to the ADC or as GPIOs with two available options: AMC7932 (six FlexIO pins) and AMC7932F (five FlexIO pins). Communication to the device is performed through a 3-wire (AMC7932) or 4-wire (AMC7932F) SPI-compatible interface.
The AMC7932 high-integration and wide operating temperature range make the device an excellent choice as an all-in-one, bias-control circuit for the power amplifiers (PA) found in multichannel RF communication systems. The flexible DAC output ranges and built-in sequencing features allow the device to be used as a biasing controller for a large variety of transistor technologies, such as LDMOS, GaAs, and GaN.
