63604 Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K

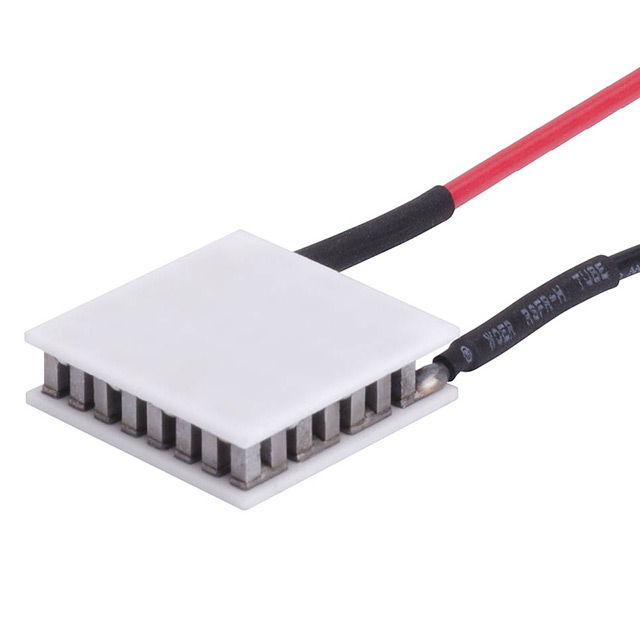

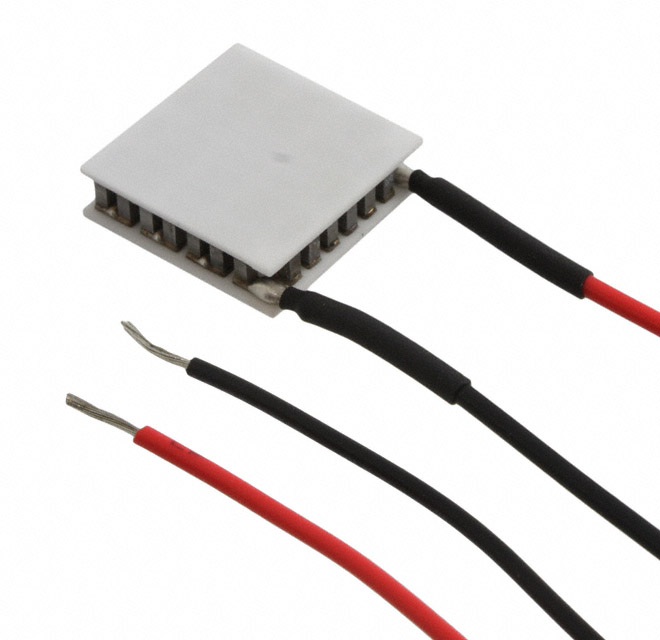

PELTIER CP10,31,08,L1,RT,W4.5
| Part | Qmax @ Th | Operating Temperature | Voltage - Max [Max] | Size / Dimension [x] | Size / Dimension [y] | Current - Max [Max] | Number of Stages | Resistance | Height [z] | Delta Tmax @ Th | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 5.3 W | 80 °C | 3.8 V | 15 mm | 15 mm | 2.5 A | 1 | 1.29 Ohms | 3.99 mm | 67 °C | Lead Wires Sealed - Silicone RTV |
 Laird Thermal Systems, Inc. | 5.3 W | 80 °C | 3.8 V | 15 mm | 15 mm | 2.5 A | 1 | 1.29 Ohms | 3.99 mm | 67 °C | Lead Wires Non-Sealed |
