08FMN-BM Series

Catalog

CONN FFC VERT 8POS 1MM SMD

Part	Current Rating (Amps)	Housing Color	Pitch	Pitch	Features	Housing Material	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Connector/Contact Type	FFC, FCB Thickness	Termination	Material Flammability Rating	Contact Finish	Number of Positions	Cable End Type	Mounting Type	Flat Flex Type	Contact Material

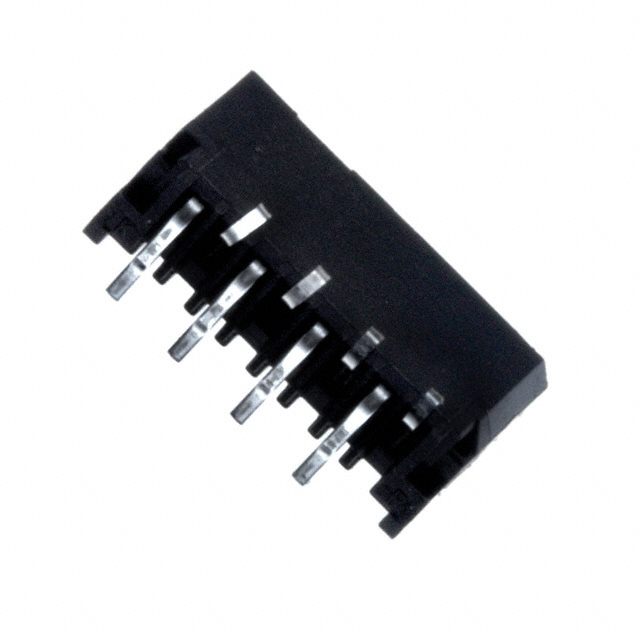

JST Sales America Inc. 08FMN-BMTTN-A-TF	0.5 A	Black	1 mm	0.039 in	Low Insertion Force (LIF)	Nylon 6T Polyamide (PA6T)	5.1 mm	0.201 in	50 V	85 °C	-25 °C	Contacts Vertical - 1 Sided	0.3 mm	Solder	UL94 V-0	Tin	8	Straight	Surface Mount	FFC	Phosphor Bronze

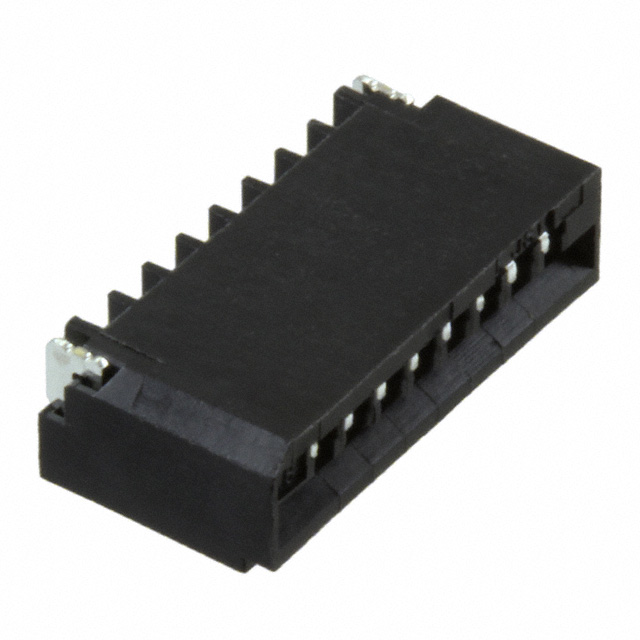

JST Sales America Inc. 08FMN-BMT-A-TF	0.5 A	Black	1 mm	0.039 in	Low Insertion Force (LIF)	Nylon 6T Polyamide (PA6T)	5.1 mm	0.201 in	50 V	85 °C	-25 °C	Contacts Vertical - 1 Sided	0.3 mm	Solder	UL94 V-0	Tin	8	Straight	Surface Mount	FFC	Phosphor Bronze
