CR0402 Series

Catalog

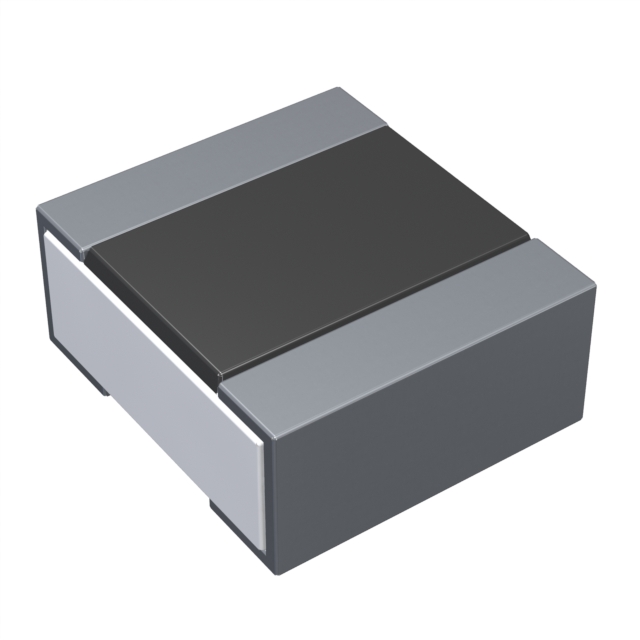

RES THICK FILM 0402 31.6K OHM 1% 0.063W(1/16W) ±100PPM/°C PAD SMD T/R

...

Part	Package / Case	Temperature Coefficient	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max)	Resistance	Power (Watts)	Power (Watts)	Number of Terminations [custom]	Temperature Coefficient [Min]	Temperature Coefficient [Max]
Bourns Inc. CR0402-FX-3162GLF	0402 (1005 Metric)	100 ppm/°C	0402	155 C	-55 C	Thick Film	1 %	0.02 in	0.5 mm	0.039 "	1 mm	0.016 in	0.4 mm	31600 Ohms	0.063 W	0.0625 W	2
Bourns Inc. CR0402-JW-332GLF	0402 (1005 Metric)	200 ppm/°C	0402	155 C	-55 C	Thick Film	5 %	0.02 in	0.5 mm	0.039 "	1 mm	0.016 in	0.4 mm	3300 Ohms	0.063 W	0.0625 W	2
Bourns Inc. CR0402-JW-150GLF	0402 (1005 Metric)	200 ppm/°C	0402	155 C	-55 C	Thick Film	5 %	0.02 in	0.5 mm	0.039 "	1 mm	0.016 in	0.4 mm	15 Ohms	0.063 W	0.0625 W	2
Bourns Inc. CR0402-FX-2403GLF	0402 (1005 Metric)	100 ppm/°C	0402	155 C	-55 C	Thick Film	1 %	0.02 in	0.5 mm	0.039 "	1 mm	0.016 in	0.4 mm	240 kOhms	0.063 W	0.0625 W	2
Bourns Inc. CR0402-FX-27R4GLF	0402 (1005 Metric)	100 ppm/°C	0402	155 C	-55 C	Thick Film	1 %	0.02 in	0.5 mm	0.039 "	1 mm	0.016 in	0.4 mm	27.4 Ohms	0.063 W	0.0625 W	2
Bourns Inc. CR0402-FX-4703GLF	0402 (1005 Metric)	100 ppm/°C	0402	155 C	-55 C	Thick Film	1 %	0.02 in	0.5 mm	0.039 "	1 mm	0.016 in	0.4 mm	470 kOhms	0.063 W	0.0625 W	2
Bourns Inc. CR0402-FX-1802GLF	0402 (1005 Metric)	100 ppm/°C	0402	155 C	-55 C	Thick Film	1 %	0.02 in	0.5 mm	0.039 "	1 mm	0.016 in	0.4 mm	18 kOhms	0.063 W	0.0625 W	2
Bourns Inc. CR0402-J/-1R0GLF	0402 (1005 Metric)		0402	155 C	-55 C	Thick Film	5 %	0.02 in	0.5 mm	0.039 "	1 mm	0.016 in	0.4 mm	1 Ohms	0.063 W	0.0625 W	2	-250 ppm/°C	500 ppm/°C
Bourns Inc. CR0402-JW-910GLF	0402 (1005 Metric)	200 ppm/°C	0402	155 C	-55 C	Thick Film	5 %	0.02 in	0.5 mm	0.039 "	1 mm	0.016 in	0.4 mm	91 Ohms	0.063 W	0.0625 W	2
Bourns Inc. CR0402-FX-2740GLF	0402 (1005 Metric)	100 ppm/°C	0402	155 C	-55 C	Thick Film	1 %	0.02 in	0.5 mm	0.039 "	1 mm	0.016 in	0.4 mm	274 Ohms	0.063 W	0.0625 W	2
