ET115D Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE SPDT 15A 125V
| Part | Switch Function | Termination Style | Actuator Length [x] | Circuit | Current Rating (Amps) | Electrical Life | Voltage Rating - AC | Bushing Thread | Bushing Thread | Panel Cutout Dimensions [diameter] | Actuator Type | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

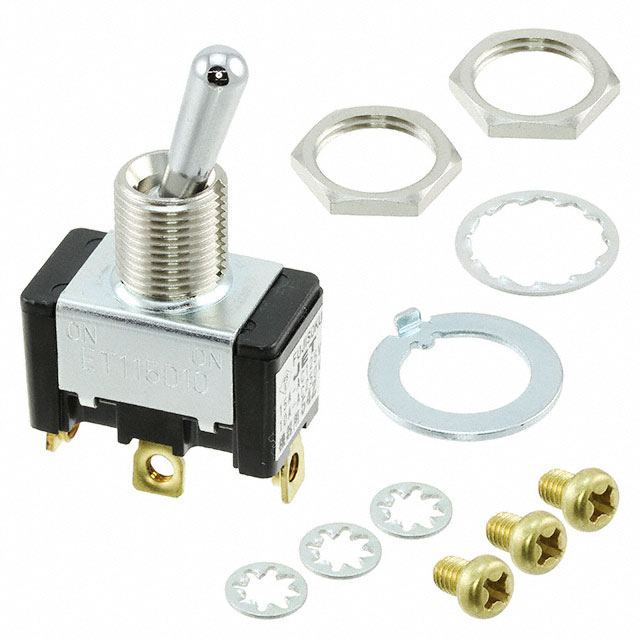

 Nidec Components Corporation | On-On | Screw Terminal | 17 mm | SPDT | 15 A | 30000 Cycles | 125 V | M12 | 1 x 1 | 12.5 mm | Standard Round | Non-Illuminated |

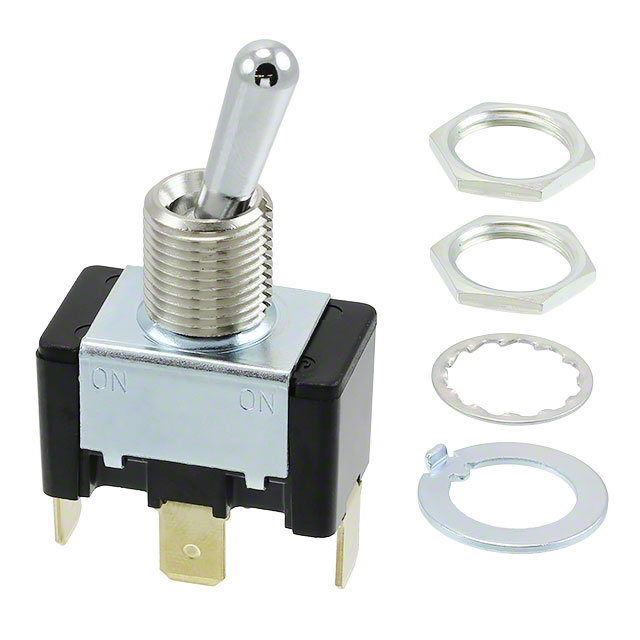

 Nidec Components Corporation | On-On | Quick Connect - 0.250" (6.3mm) | 17 mm | SPDT | 15 A | 30000 Cycles | 125 V | M12 | 1 x 1 | 12.5 mm | Standard Round | Non-Illuminated |

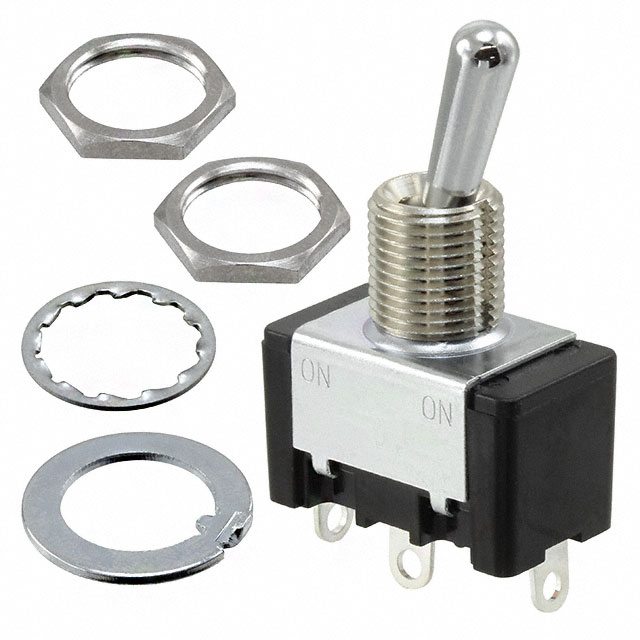

 Nidec Components Corporation | On-On | Solder Lug | 17 mm | SPDT | 15 A | 30000 Cycles | 125 V | M12 | 1 x 1 | 12.5 mm | Standard Round | Non-Illuminated |
